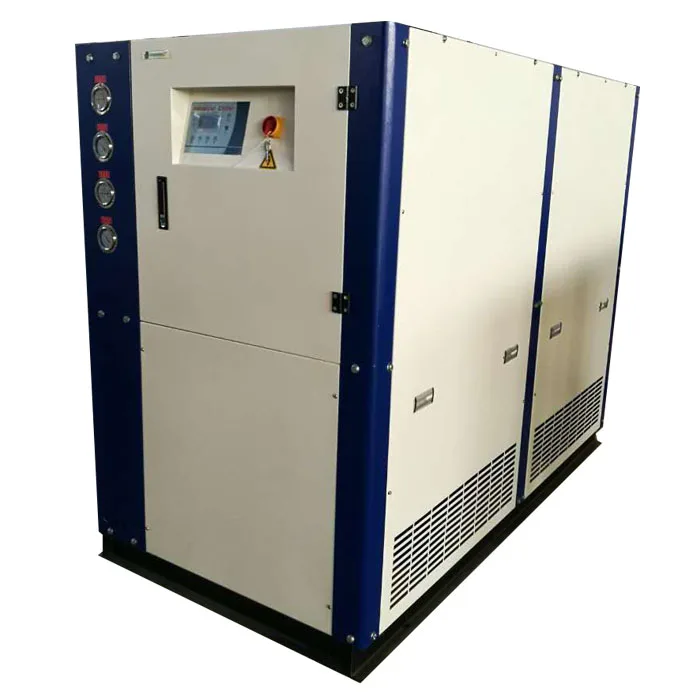

Water Chiller for Extruder Production Extruder Process Chiller

FOB Price:

Get Latest Price

Min.Order Quantity:

1 Set/Sets

Supply Ability:

200 Set/Sets per Quarter

Port:

Qingdao, China

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

Mgreenbelt

Products Model:

MG-20C(D)

Products Details
Company Profile

Quick Details

Brand Name: Mgreenbelt

Model Number: MG-20C(D)

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: 20hp air cooled chiller in plywood case.
Delivery Detail: 15 days

Specifications

Water Chiller for Extruder Production Extruder Process Chiller

Features of Plastic Chiller

Plastic water chiller is to provide a cooling process for better industrial production. In plastic molding industry, it improves quality of molded products and shorten period of injection molding cycles, and maximizes productivity of plastic molding manufacturing. The chilled water can be used in various industries, depending on your request.

* Adopt reliable well-known refrigeration compressors.

* Electric and refrigeration components are branded.

* According to different industry requests, optional stainless steel and high head water pump available.

* Provide wide range changeable temperature, meet 12-month cooling demands.

* Independent design, one compressor to one circuit, no interaction.

Safety Protections

1. Lack of phase, reverse phase protection.

2. Motor overload protection.

3. High/low pressure protection.

4. Automatic alarm device for lacking of water.

5. Anti-freezing protection.

6. Coil overheated protection.

7. Water shortage protection.

8. Full-automatic temperature control system.

Specification of 20HP Air Cooled Water Chiller for Extruder Production
Model	MG-20C(D)
Outlet water temperature	5-30°C
Chiller working voltage	220v,380v,415v,440v,460v
Refrigerant gas	R22,R407c,R410a
Control of refrigerant	Expansion valve
Cooling capacity	55.3kw
Air cooled condenser	Aluminum fins copper tubes with fan motor
Cooling air	20,000m³/h
Evaporator	Shell and tube/water tank with coils
Chilled water	9.48m³/h
Pipe diameter	DN40
Water pump power	1.5kw
Pump head	20m

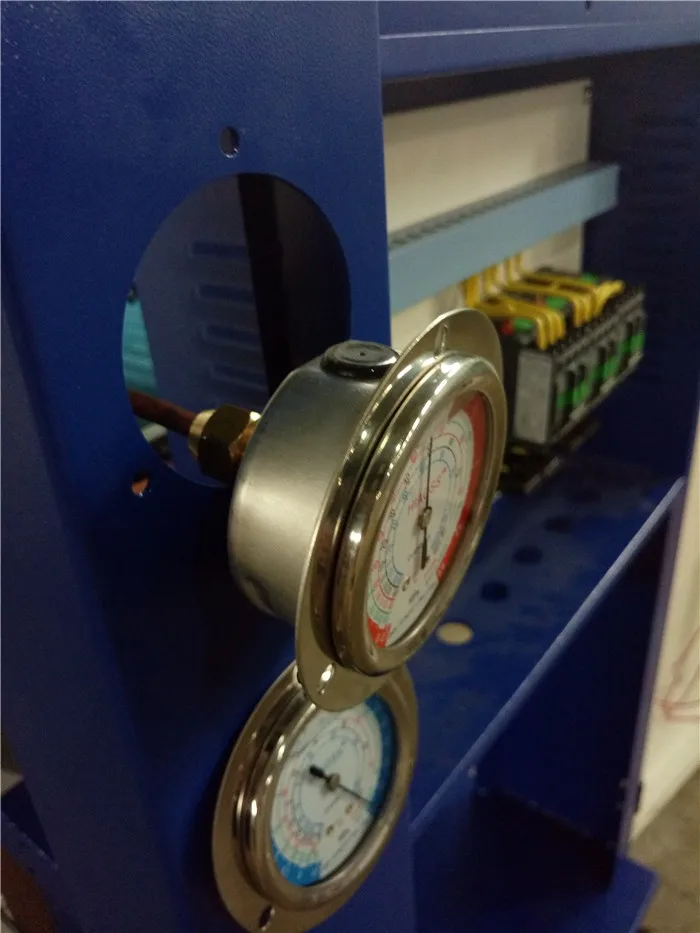

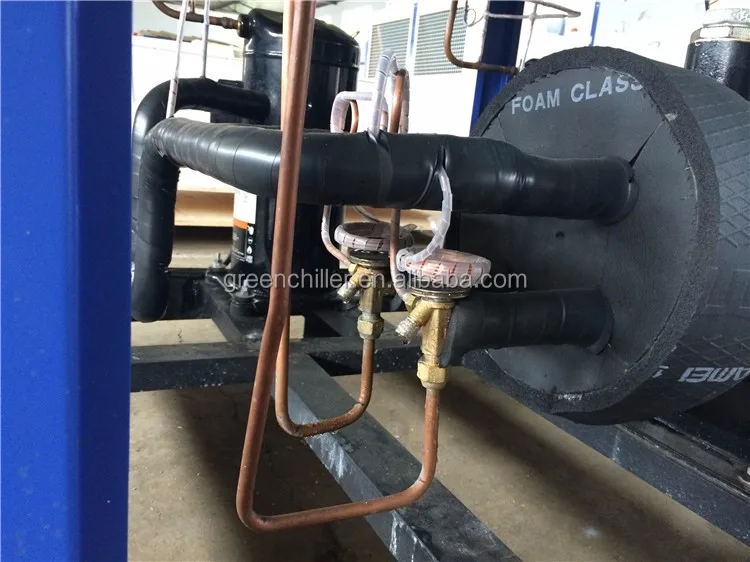

Plastic Chiller Extruder Proces Chiller Components

Plywood Case

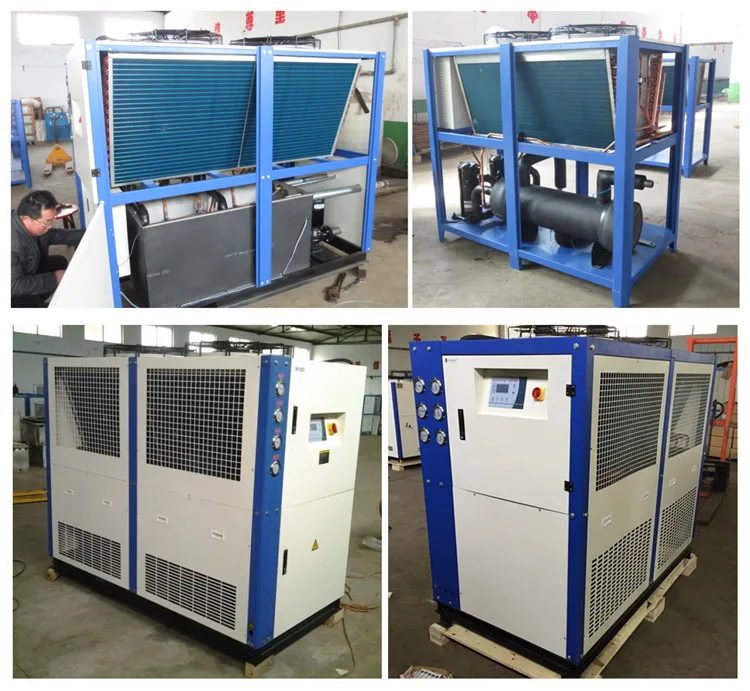

Industrial Water Chiller Factory

Service:

1. Warranty: 12 Months.

2. Customerized accept.

3. All extral parts for the machine can be purchased by agent price from Mgreenbelt.

4. Technical support and after-sales service free of charge.

5. Professional technical team and Sales give troubleshooting procedures.

6. Door-to-door service if necessary.

Mgreenbelt industrial water chiller manufactures air cooled water chiller, water cooled water chiller, stainless steel chiller, screw chiller from 3.5KW(1Ton)to 1500KW(500Ton), oil chiller, mold temperature controller units, cooling tower, shell and tube heat exchanger and all refrigeration spare parts.
