Water Chiller Cooling System For Food Processing Industry With Best Price

FOB Price:

US 3,358-5,689 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

200 Set/Sets per Month

Port:

Qingdao/Shanghai/Guangzhou/Shenzhen

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

Mgreenbelt

Products Model:

MG-10(D)

Products Details
Company Profile

Quick Details

Brand Name: Mgreenbelt

Model Number: MG-10(D)

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: standard exporting wooden case for water chiller cooling system
Delivery Detail: 5-20 working days after your payment

Specifications

Water Chiller Cooling System For Food Processing Industry

Water Cooled Chiller
1.safety protection
2.stainless stell tank
3.reliable design
4.Manufacturer

Product Description

Detailed introduction for water chiller cooling system

MG series water chiller are widely used in plastic, electronic manufacturing, electroplating, pharmaceutical, chemical and painting industries with good quality and competitive price.

They can control the required temperature during manufacturing exactly and then increase the producing efficiency and good quality.

MG series water chillers have the characters of easy operation, reliable design and good quality, are the best partner for the industry manufacturing.

Advantages of chiller for water chiller cooling system

1. The compressor are imported from Japan and USA, built-in safety protection, they have the characters of low noise and power saving

2. With the SCHNEIDER controller to make sure the stable working and long-time life

3. Imported Italy pump with the big water flowing, high efficiency and durable

4. With the stainless steel tank type evaporator , built-in watering device, it can be cleaned easily

5. With the tube condenser, reliable design and with the good heating exchanging ability

Electrostatic spraying shell, European design make them elegant

Technical Parameter for water chiller cooling system

Specification model	Unit	MG-10(D)
Nominal cooling capacity	kcal/h 50HZ/60HZ	25800 30960
Nominal cooling capacity	KW 50HZ/60HZ	30 36
Input power	KW	9.85
Set temp. range	0ºC~50ºC
Power supply	3PH-380V-50HZ (200V/220V/415V-50HZ/60HZ)
Refrigerant	Type	R22/R134a/407c
Refrigerant	Type of control	Thermostatic expansion valve
Compressor	Type	Hermetic scroll
Compressor	Power(kw)	4.55*2
Condenser	Type	shell and tube
	Cooling water flow(m3/h)	6.76 7.4
	Inlet and outlet pipe diameter(inch)	1-1/2"
Evaporator	Type	Tank with coil/shell and tube
	Chilled fluid flow(m3/h)	5.26 6.32
	Volume(L)	200
	Inlet and outlet pipe diameter(inch)	1-1/2"
Pump	Power(kw)	0.75
Pump	Lift(m)	20
Dimension	Length(mm)	1170
	Wide(mm)	710
	High(mm)	1200
Weight	kg	430
Safety protection	compressor over temperature,over current,high and low pressure,Phase sequence,phase-missing

Flowchart for water chiller cooling system

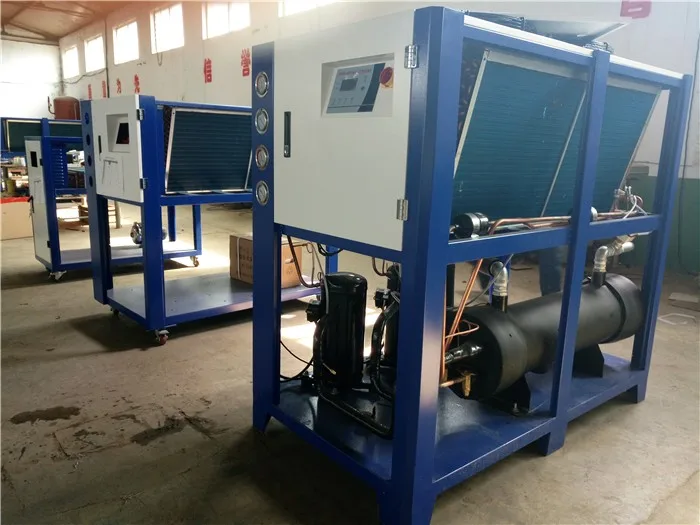

Products Show

Packaging & Shipping

Packaging and Shipping for water chiller cooling system

1.package: standard exporting wooden case

2.lead time: 5-20 working days in receipt of your payment

Our Services

After-Sales Services for water chiller cooling system

(1) 24 hours on-line service

(2) immediately technical support according to customers requirements

(3) many trials before delivery to make sure the good performance of the water cooled chiller

(4) a professional technical team to support you and submit the best solution to you

Company Information

Introduction for our company

Shandong Mgreenbelt Machinery Co.,Ltd is a company specializing in various capacity industrial water chillers with good quality and competitive price for more than 10 years.

Our main products include air cooled scroll water chiller, water cooled scroll water chiller, air cooled screw water chiller, water cooled screw water chiller as well as low temperature industrial water chiller. At the same time we can submit the best solutions according to your detailed requirements

FAQ

1. Q: Why you choose us?

A: We are the superior supplier of industrial water chillers for more than 10 years, a professional technical team support you to submit the best solutions to you

2. Q: How to make sure the quality of the water chiller?

A: first, before delivering the chiller, we always make a lot of trials to make sure the good performance; second, we have 24-hour on-line service, if there is any problems you can let me know; third, a professional technical team is behind me to support you
