CE 15hp industrial water chiller for export

FOB Price:

US 3,000-7,500 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

200 Set/Sets per Month

Port:

Qingdao/Shanghai/Shenzhen/Guangzhou

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

Mgreenbelt

Products Model:

MG-15C

Products Details
Company Profile

Quick Details

Brand Name: Mgreenbelt

Model Number: MG-15C

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: standard exporting wooden case for industry chiller machine
Delivery Detail: 5-20 working days in receipt of your payment

Specifications

Industry Chiller Machine Used In Aquarium From China Manufacturer

Aquarium Water Chiller
1.good quality with competitive price
2.with CE and UL
3.R22/R407c/R134a refrigeration
4.China Manufacturer

Detailed introduction for industrial chiller machine

Our water chillers can be used for many industries according to our customers' needs.

They can control the required temperature during manufacturing exactly and then increase the producing efficiency and good quality.

MG series water chillers have the characters of easy operation, reliable design and good quality, are the best partner for the industry manufacturing.

Technical parameter for industrial chiller machine

Model	Unit	MG-15C(D)
Nominal cooling capacity	kcal/h 50HZ/60HZ	35948 43138
Nominal cooling capacity	KW 50HZ/60HZ	41.8 50.16
Set temp. range	5ºC~35ºC
Input power	KW	16.42
Power supply	3PH-380V-50HZ (200V/220V/415V-50HZ/60HZ)
Refrigerant	Type	R22/R134a/407c
Refrigerant	Type of control	Thermostatic expansion valve
Compressor	Type	Hermetic scroll
Compressor	Power(kw)	13.72
Condenser	Type	Finned copper tube+low noise outer rotor fan
Condenser	Cooling air flow(m3/h)	15000
Evaporator	type	Tank with coil/shell and tube
	Chilled fluid flow(m3/h)	7.2 8.63
	Volume(L)	270
	Inlet and outlet pipe diameter(inch)	2"
Pump	Power(kw)	1.5
Pump	Lift(m)	20
Dimension	Length(mm)	1850
	Wide(mm)	990
	High(mm)	1680
Weight	kg	750
Safety protection	compressor over temperature,over current,high and low pressure,Phase sequence,phase-missing
Safety protection

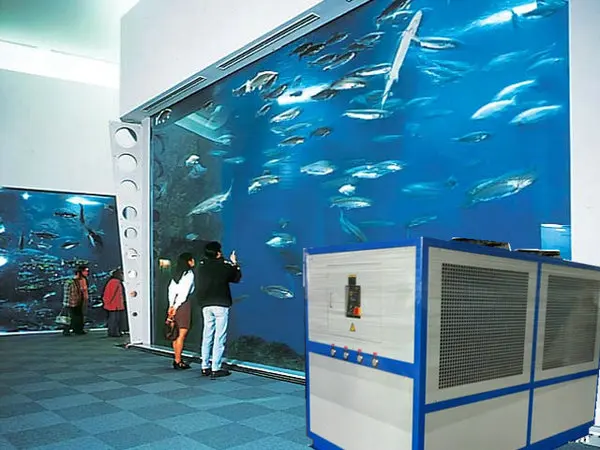

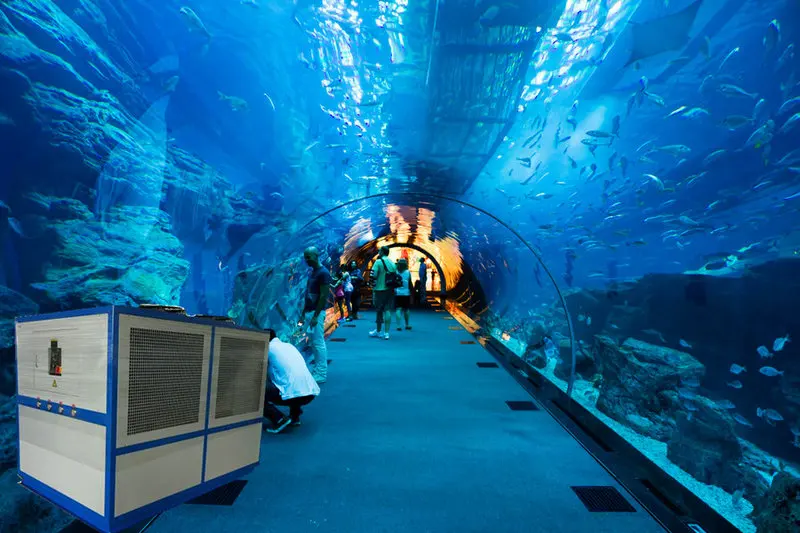

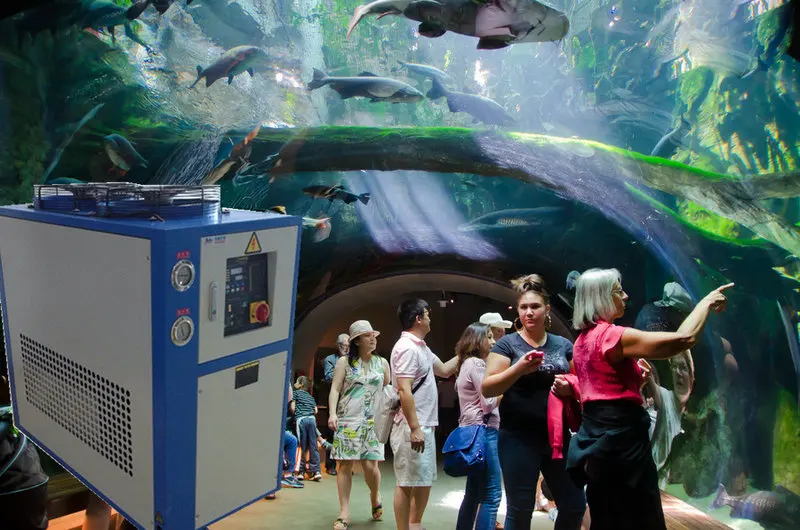

Water Chiller used in aquarium

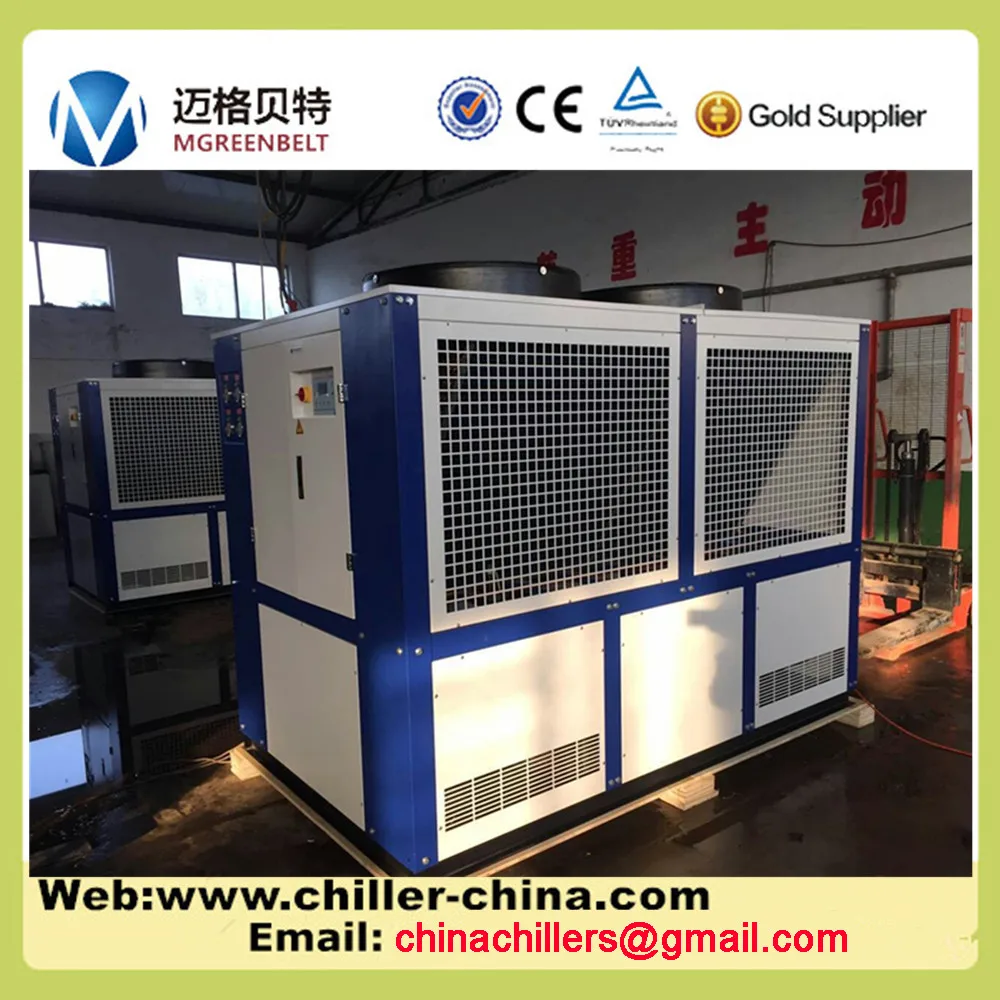

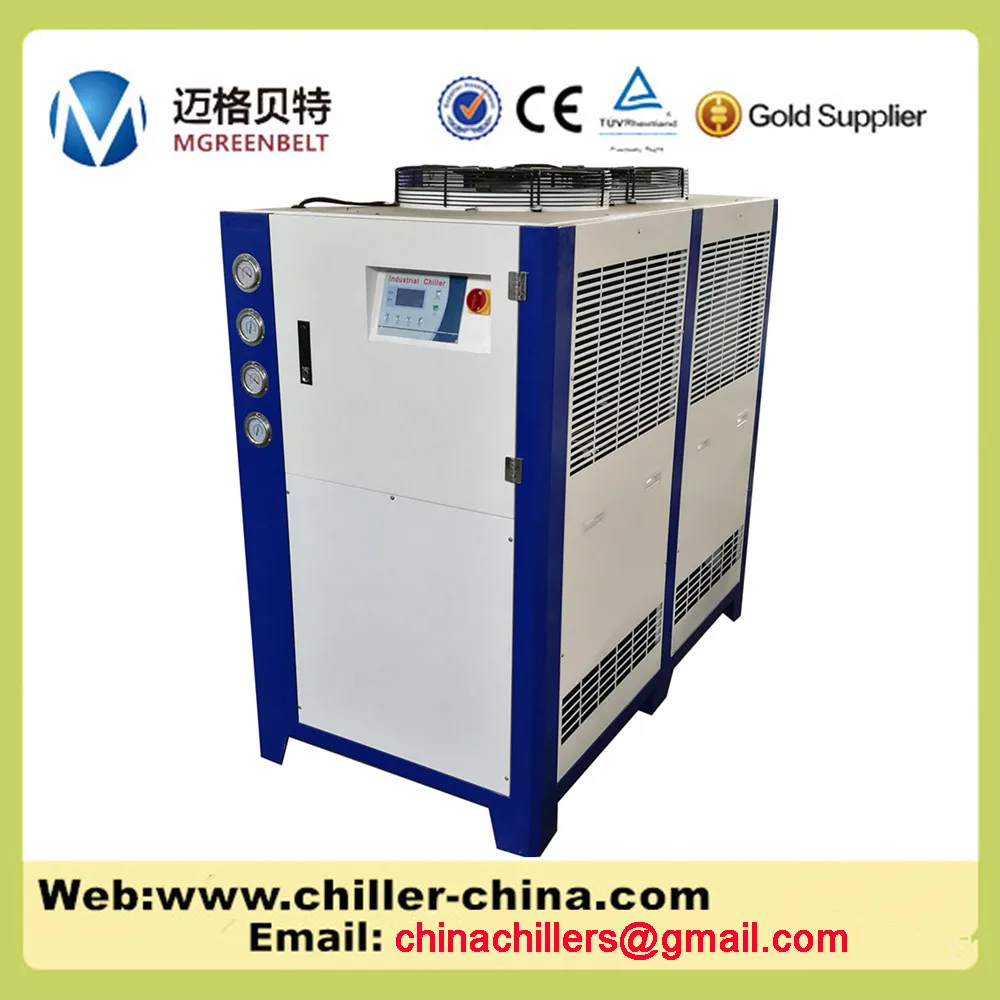

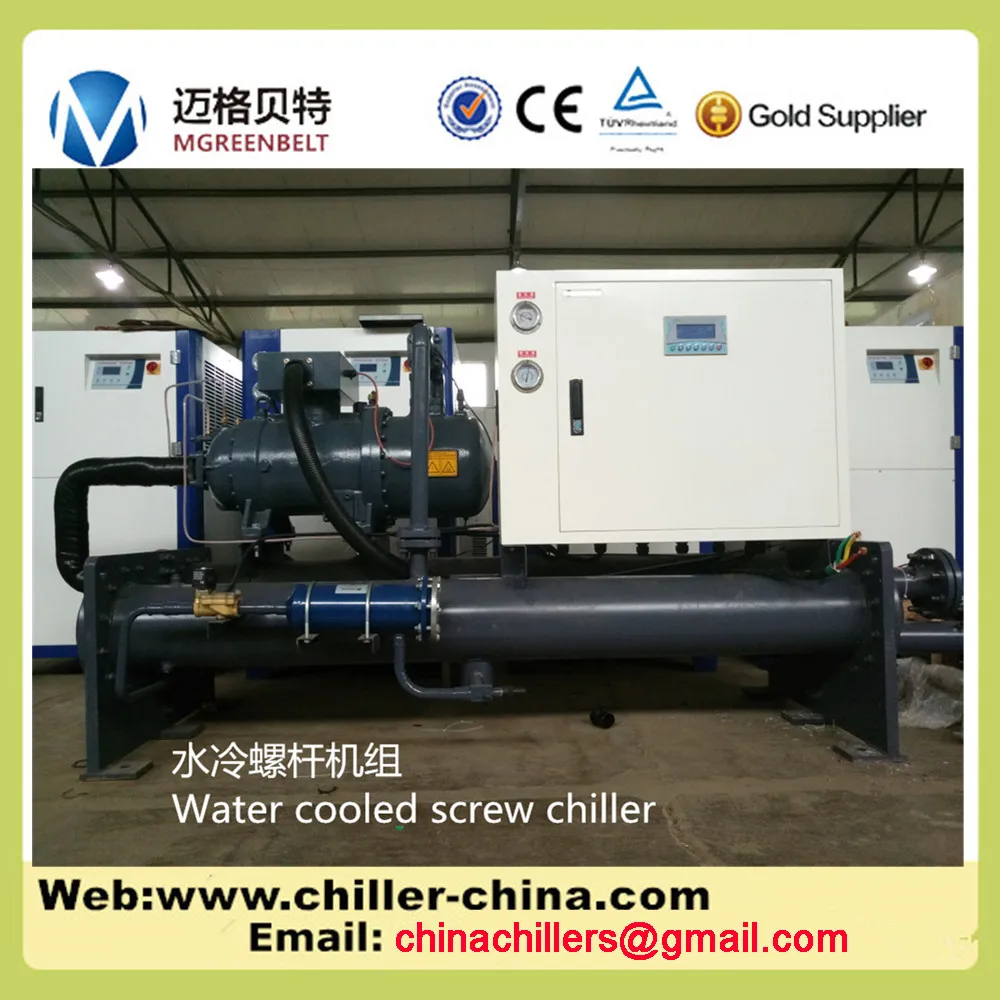

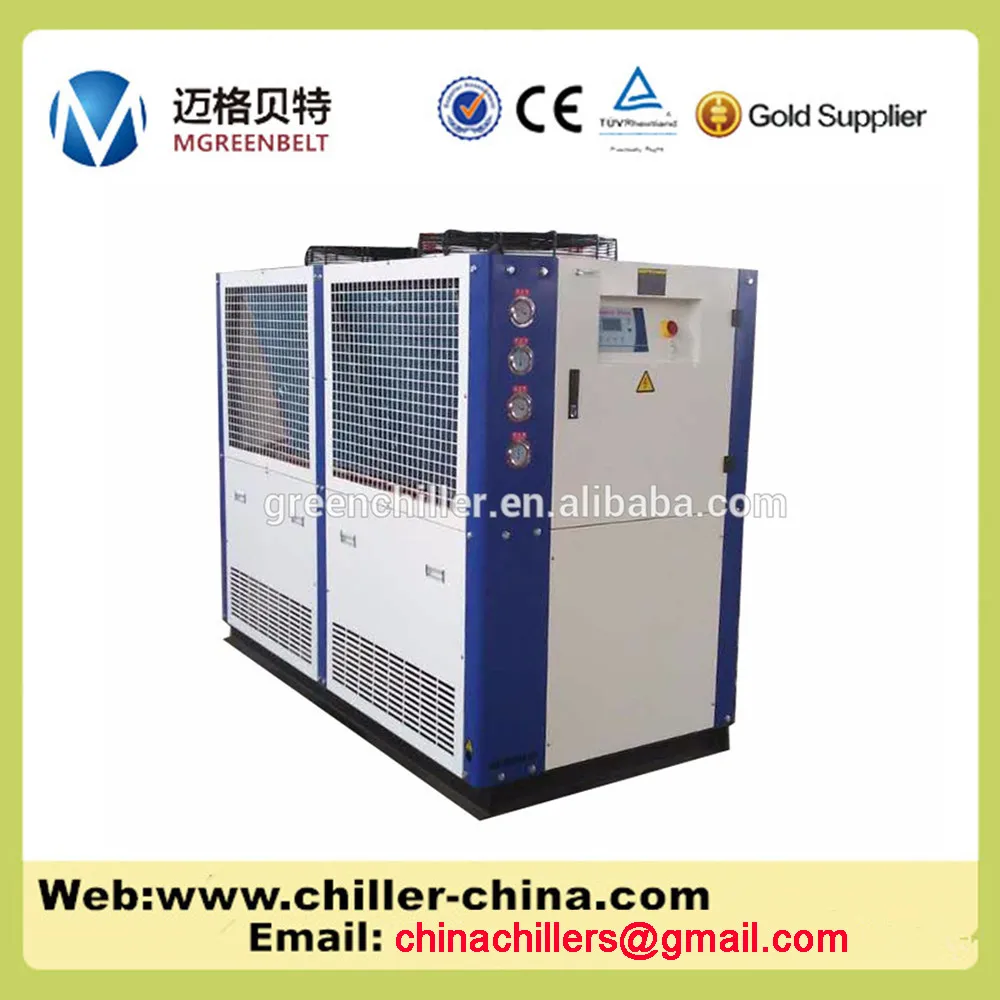

Water chillers show

Introduction for our company

Shandong Mgreenbelt Machiney Co.,Ltd is an advanced enterprise which specializes in R & D, manufacturing, marketing, post sale service of water chiller and relevant refrigeration equipmens. Water Chiller can be widely used in pastic injection cooling, industrial reaction kettle coolin, chemical, pharmaceutical, food processing, print and central air-conditioning system. Since established in 2003, its products have got certificates of CE, Alibaba assessed supplir, factory audit and sold all over the world.

Our services

(1) 24-hours on-line service

(2) 14 months quality warranty

(3) Engineers available to service machinery overseas

(4) A professional technical team for supporting you with the best solution

Contact Details

Lesley Yue

Skype: lesley89606

Cell pone: 0086-17686681008

wechat/whatsapp:008618866851962

Looking forward to our pleasant cooperation!

Established in the year 2003, we, " Mgreenbelt Machinery Co., Ltd," are engaged in manufacturing, exporting and supplying Chillers, Cooling Towers, Heat Exchangers and Components. Our range is appreciated by the clients based in various parts of China and world for its characteristics, such as robust structure, longer service life and high performance. The durable products are manufactured by experienced workers, using graded alloys and qualified electronic components. Further, for clients' covenience, we undertake the designing and turnkey projects for the devices.

At the sound manufacturing facility, we undertake the production of high performance machines. The quality controllers test the range, to ensure that it is in compliance with the degree of prevailing quality standards. Moreover, we also offer after sales services to ensure all the queries to be handled within the shortest time. We would like to grow and improve by anticipating consumers' needs, offering a better solution than competitiors and supporting customers to be confident of getting fast answers of requirement.

We have been successfully in offering machines to projects of Packaged Equipment and System, Automobile Components Producing System, Food Making, Bakery, etc. to clients from domestic, USA, Canada, Australia, Ecuador, Sudan, Russia, South Africa, Dubai, Israel, India, Philippine, Singapore, Vietnam, Thailand and Korea, etc.

Basic Information

Business Type: Manufacturer
Main Products: Industrial water chillers, air-cooled chillers, water-cooled water chillers, screw air/water cooling chillers, glycol water chiller, refrigeration compressor,axial fan,air cooling condenser, evaporator,water pump,cooling tower,etc.
Location: Shandong, China (Mainland) Asia
Year Established:

Trade Capacity

Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery
Accepted Payment Currency: USD,RMB
Accepted Payment Type: L/C,T/T,Western Union
Nearest Port: Qingdao,Shanghai,Shenzhen,Guangzhou

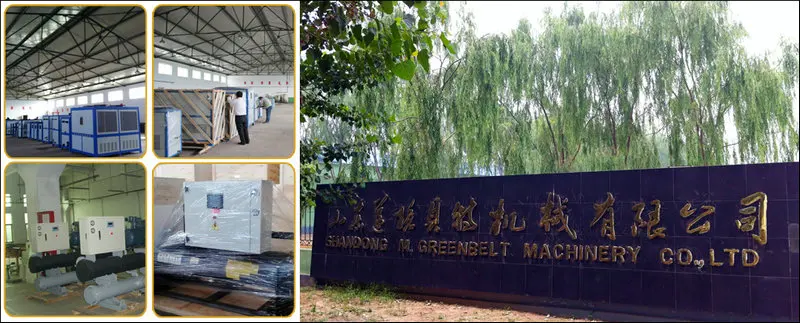

Company Photos
