Home > Products > Refrigeration Equipment > Water Chiller

Chillers Cooling Systems Industrial for Plastics and Process Industries

FOB Price:

Get Latest Price

Min.Order Quantity:

1 Set/Sets

Supply Ability:

200 Set/Sets per Quarter

Port:

Qingdao, China

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union

Brand:

Mgreenbelt

Products Model:

MG-40C(F)

Products Details
Company Profile

Quick Details

Brand Name: Mgreenbelt

Model Number: MG-40C(F)

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: Process industrial plastic chiller in plywood case.
Delivery Detail: 20 days

Specifications

Chillers Cooling Systems Industrial for Plastics and Process Industries

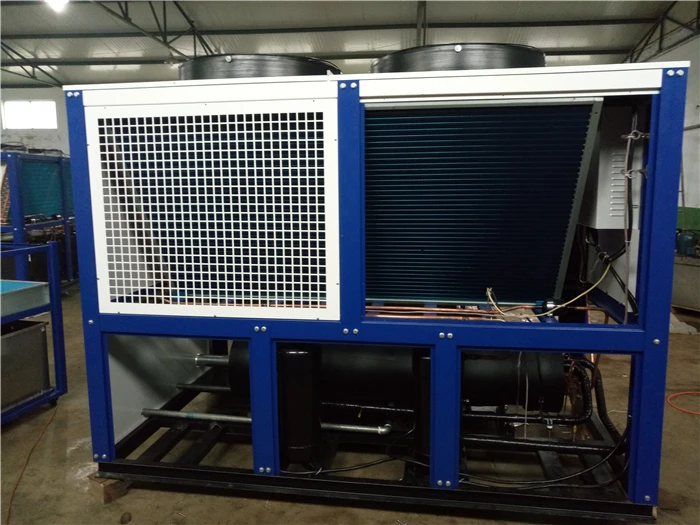

Introduction of Air Cooled Plastics Process Chillers

Water chiller is to provide a cooling process for better industrial production. In plastic molding industry, it improves quality of molded products and shorten period of injection molding cycles, and maximizes productivity of plastic molding manufacturing. The chilled water can be used in various industries, depending on your request.

Technical Parameter of 30Tons Scroll Industrial Plastic Chiller
Model	MG-40C(F)
Outlet water temperature	5-30°C
Refrigerant gas	R407c,R22,R410a
Water chiller voltage	380v,415v,440v,460v,480v
Cooling capacity	110kw / 30tons
Compressor power	36.2kw
Refrigeration compressor type	Hermetic scroll
Air cooled condenser	Aluminum fins copper tubes with fan
Cooling air	40000m3/h
Industrial process plastic chiller evaporator	Water tank with coils
Tank capacity	580L
Chilled water flow	18.8m3/h
Water pump power	2.2kw
Safety protection	Compressor overheat protection, high/low pressure protection, phase missing/sequence protection, flow rate protection, anti-freezing protection

Features of Industrial Injection Molding Chiller

	Main parts: Chiller Compressor Features: Automatic high pressure alarm, protecting compressors from damaged. Greater reliability and energy efficiency. Wide voltages available used in international markets.
	Main Parts: Air Cooled Condenser Features: High efficiency, 30% higher than normal condenser. Integral design. Anti-dirty.
	Main Parts: Cooling Fans Features: Top discharge Quietly discharges air through the top of the unit Adopt strong blades
	Main Parts: Stainless Steel Water Tank Evaporator Features: Stainless steel User not need to make tank outside, save space and cost.
	Main Parts: Chiller Water Pump Features: Mounted in controller and wired to motors.

Scroll Type Plastic Injection Water Chiller System

Industrial water chiller manufactures air cooled water chiller, water cooled water chiller, stainless steel chiller, screw chiller from 3.5KW(1Ton)to 1500KW(500Ton), oil chiller, mold temperature controller units, cooling tower, shell and tube heat exchanger and all refrigeration spare parts.

Established in the year 2003, we, " Mgreenbelt Machinery Co., Ltd," are engaged in manufacturing, exporting and supplying Chillers, Cooling Towers, Heat Exchangers and Components. Our range is appreciated by the clients based in various parts of China and world for its characteristics, such as robust structure, longer service life and high performance. The durable products are manufactured by experienced workers, using graded alloys and qualified electronic components. Further, for clients' covenience, we undertake the designing and turnkey projects for the devices.

At the sound manufacturing facility, we undertake the production of high performance machines. The quality controllers test the range, to ensure that it is in compliance with the degree of prevailing quality standards. Moreover, we also offer after sales services to ensure all the queries to be handled within the shortest time. We would like to grow and improve by anticipating consumers' needs, offering a better solution than competitiors and supporting customers to be confident of getting fast answers of requirement.

We have been successfully in offering machines to projects of Packaged Equipment and System, Automobile Components Producing System, Food Making, Bakery, etc. to clients from domestic, USA, Canada, Australia, Ecuador, Sudan, Russia, South Africa, Dubai, Israel, India, Philippine, Singapore, Vietnam, Thailand and Korea, etc.

Basic Information

Business Type: Manufacturer
Main Products: Industrial water chillers, air-cooled chillers, water-cooled water chillers, screw air/water cooling chillers, glycol water chiller, refrigeration compressor,axial fan,air cooling condenser, evaporator,water pump,cooling tower,etc.
Location: Shandong, China (Mainland) Asia
Year Established:

Trade Capacity

Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery
Accepted Payment Currency: USD,RMB
Accepted Payment Type: L/C,T/T,Western Union
Nearest Port: Qingdao,Shanghai,Shenzhen,Guangzhou
