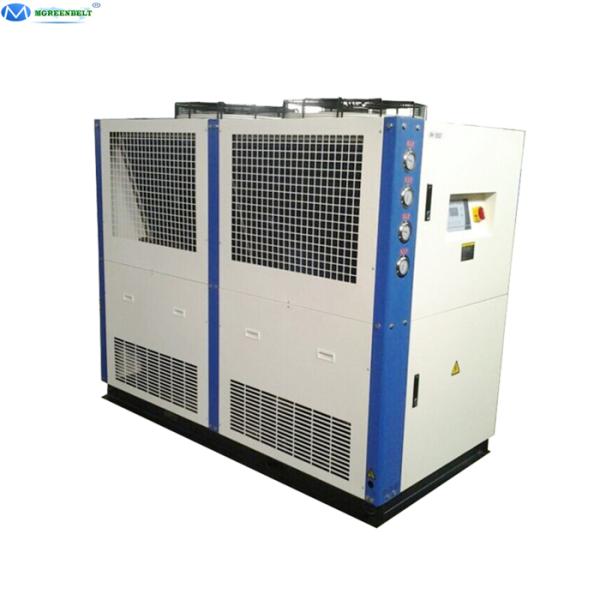

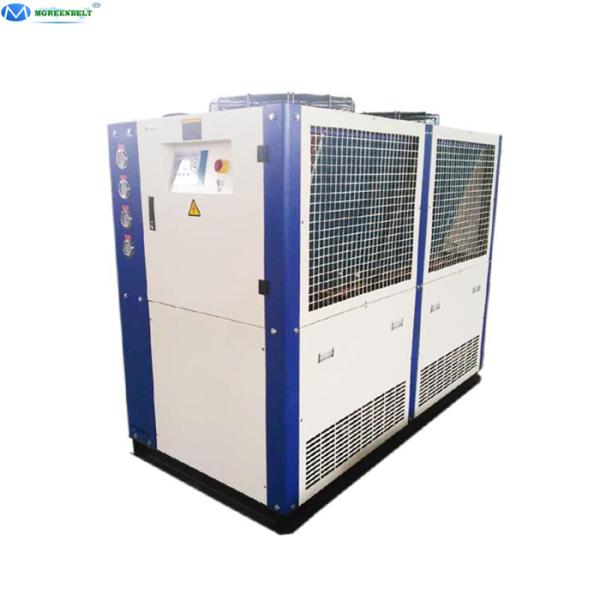

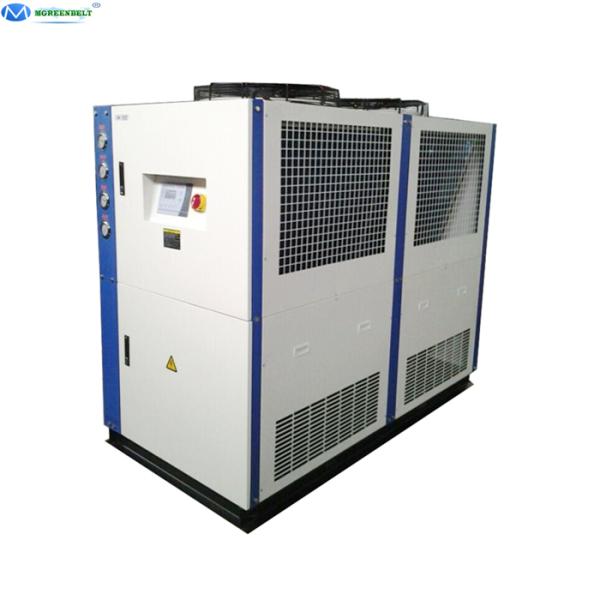

Cooling Water System Industrial Water Chiller 25hp 20 tons

Cooling Water System Industrial Water Chiller Manufacturer

Description of Water Chiller

Industrial air cooled water chillers are widely used in plastic injection, extrusion, plating, molding, hydraulic, chemical, leather, printing, profiles of oxidation, reaction kettle, chemical fiber, vacuum coating, paper making, textile, central air conditioning and various aspects of water supply, especially suitable for the inconvenience for water and the water pipe ground.

Technical Parameter of 20HP Industrial Air Cooled Chiller Unit

Model	MG-20C(D)
Water chiller operation voltage	220v,380v,415v,440v,460v,480v
Refrigerant	R407c,R22,R410a
Cooling capacity	55.3kw
Power consumption	21.27kw
Refrigeration compresor power	18.1kw
Evaporator	Shell and tube/water tank with coils
Water tank capacity	350L
Chilled water	9.48m3/hour
Pipe diameter	DN40
Condenser	Finned copper tubes
Cooling air	20000m3/hour
Water pump power	1.5kw
Head	20m
Industrial chiller sizing	2100x1000x1700mm

Safety Protection of Small Water Chiller Units

1. Lack of phase, reverse phase protection.

2. Motor overload protection.

3. High/low pressure protection.

4. Automatic alarm device for lacking of water.

5. Anti-freezing protection.

6. Coil overheated protection.

7. Water shortage protection.

8. Full-automatic temperature control system.

Process Water Chiller Parts

	Main parts: refrigeration compressor Brand: Copeland, Panasonic, Danfoss Power: 18.1kw

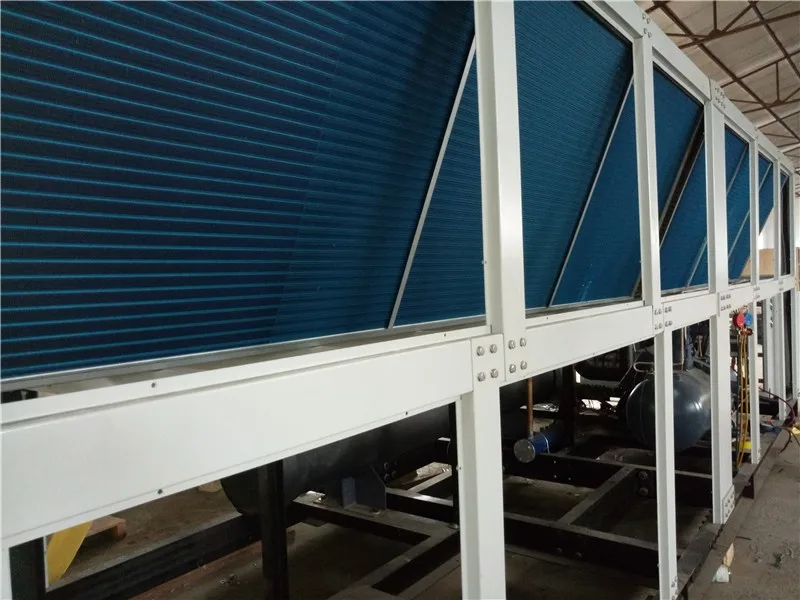

Main parts: air cooled condenser (finned copper tubes) Anti-dirty and easy clean
	Main parts: cooling fan Installed on top of chillers
Water pump is mounted in controller and wired to motors Users do not need to install water pump outside
	Microprocessor control system LED displayer Provide diagnostic and precise temperature control

Air Cooled Small Water Chiller Working Principle

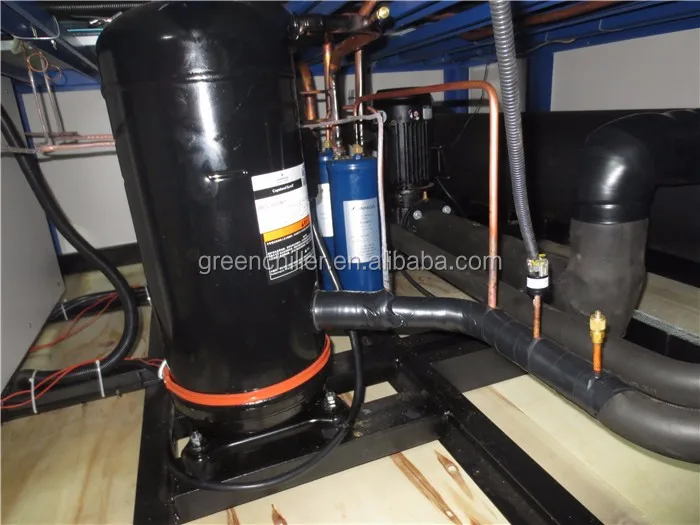

Internal Air Chiller Picture

Service:

1. Warranty: 12 Months.

2. Customerized accept.

3. All extral parts for the machine can be purchased by agent price from Mgreenbelt.

4. Technical support and after-sales service free of charge.

5. Professional technical team and Sales give troubleshooting procedures.

6. Door-to-door service if necessary.

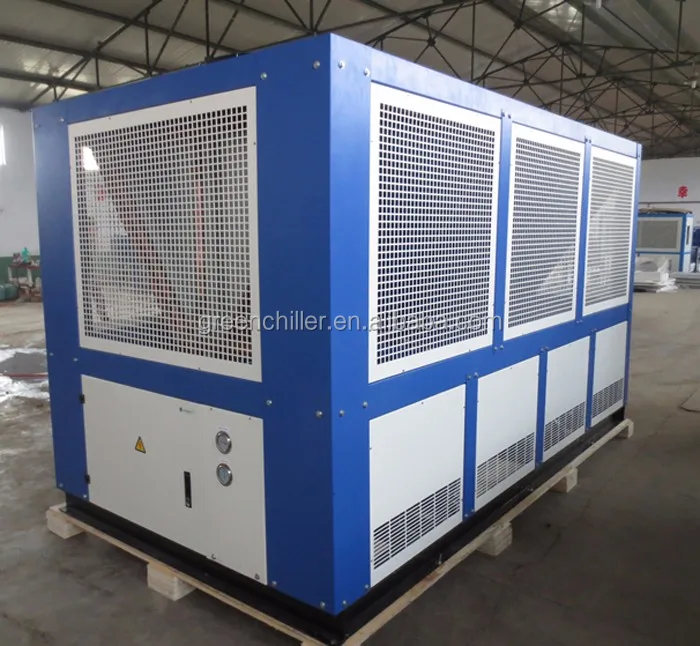

Mgreenbelt Water Chiller Manufacturers

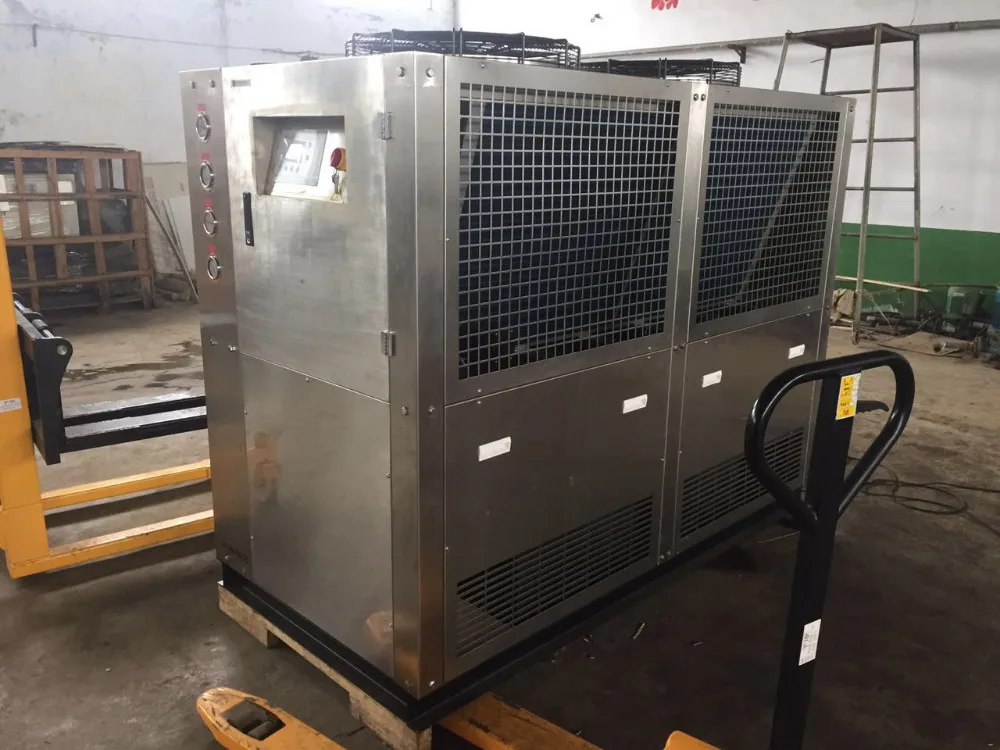

Mgreenbelt industrial water chiller manufactures air cooled water chiller, water cooled water chiller, stainless steel chiller, screw chiller from 3.5KW(1Ton)to 1500KW(500Ton), oil chiller, mold temperature controller units, cooling tower, shell and tube heat exchanger and all refrigeration spare parts.

Please send the below details, so that we can process the offer for you.
1. Which place these chiller need to be installed.
2. Cooling capacity
3. Flow rate
4. Inlet/outlet water temperature
5. Power supply
6. Any special requirements

Waiting for your reply, we have many chillers applied to plastic processing industries, hope we also have the honor to work with you.
