20Tr Industry Factory Use Air Cooled Water Chiller Alcohol With CE And Emerson Compressor

FOB Price:

US 3,000-8,000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

500 Set/Sets per Month

Port:

Qingdao,Shenzhen,Shanghai,Ningbo

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

MGREENBELT

Products Model:

MG-40CL Chiller Alcohol

Products Details
Company Profile

Quick Details

Brand Name: MGREENBELT

Model Number: MG-40CL Chiller Alcohol

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: Standard wooden case
Delivery Detail: Within 20 days

Specifications

20Tr Industry Factory Use Air Cooled Water Chiller Alcohol With CE And Emerson Compressor

Specification of Chiller Alcohole:

Temperature of outlet fluid: -5 deg C
Fluid flow: 12.77m3/h
Tank volume: 580L

Product Description

Details Of Chiller Alcohol

1.Working Application Of Chiller Alcohol

Food,beverage,beer ,Fermentation equipment and etc industry, we widely suggest glycol type water chller, which outlet temperature is 0degC, -5deg C, -10deg C and etc.
Plating,chemical,pharmacy,drinking water and etc industry.

2.Feature Of Chiller Alcohol

1).Punp Brand Microcomputer control system as normal.

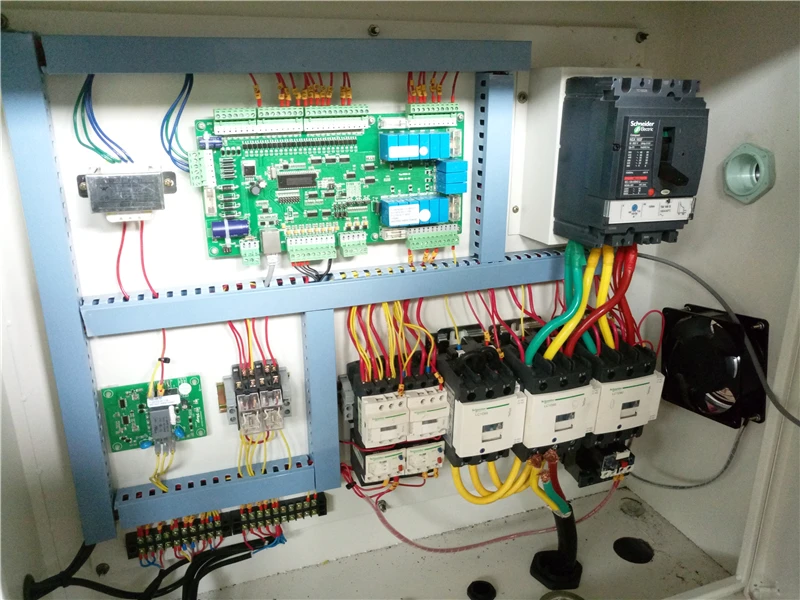

2).Siemens PLC control system customize.

Lack of phase, reverse phase protector.
Compressor overload protector.
High/low pressure protector.
Automatic alarm device for lacking of water.
Anti-freeze protector.
Coil overheated protector.
Water shortage protector.
Full-automatic temperature control system.

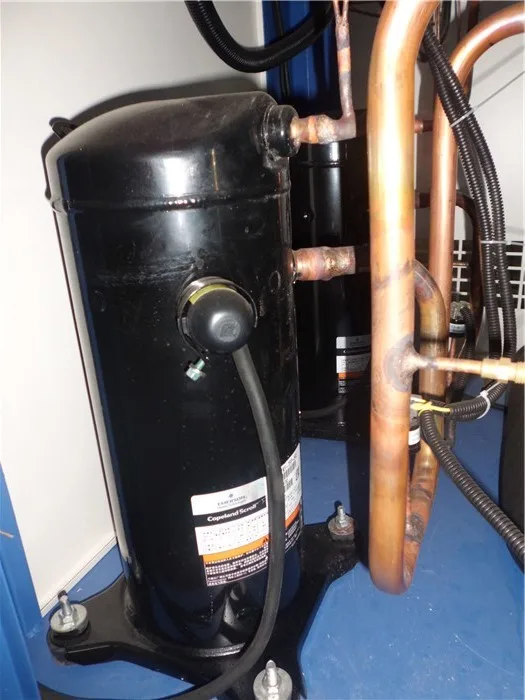

3).World-Class Compressor

Chiller with US,Japan or Europ Compressor
Provide you Multiple-Choices
Employs the most advanced Europe/US made compressor. Model type: single, double unit, or multiple unit combination.

4).Stainless steel evaporator

The high efficiency shell-shape evaporator and condenser provide superior heat conduction.It upgrades cooling speed greatly and reduces power consumption up to 25%.

3. Chiller Alcohol operate

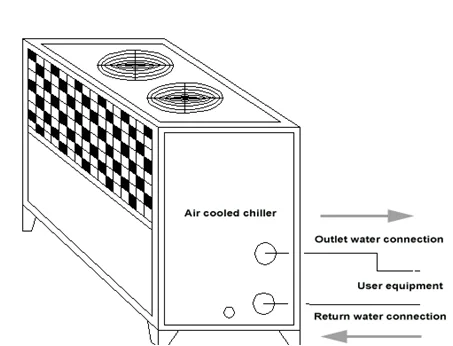

Note: The water chiller can connect with user equipment directly, no need any extra pump, tower and other parts, easy install, easy operate for customer who first use water chiller.

4.Specification

Model	Unit	MG-40CL
Nominal cooling capacity	kcal/h 50HZ/60HZ	64070 76884
Nominal cooling capacity	KW 50HZ/60HZ	74.5 89.4
Set temp. range	0ºC
Input power	KW	39.32
Power supply	3PH-380V-50HZ (200V/220V/415V-50HZ/60HZ)
Refrigerant	Type	R22/R134a/407c
Refrigerant	Type of control	Thermostatic expansion valve
Compressor	Type	Hermetic scroll
Compressor	Power(kw)	8.5*4
Condenser	Type	Finned copper tube+low noise outer rotor fan
Condenser	Cooling air flow(m3/h)	40000
Evaporator	type	Tank with coil/shell and tube
	Chilled fluid flow(m3/h)	12.77
	Volume(L)	580
	Inlet and outlet pipe diameter(inch)	DN65
Pump	Power(kw)	2.2
Pump	Lift(m)	20
Dimension	Length(mm)	2500
	Wide(mm)	1460
	High(mm)	2000
Weight	kg	1350
Safety protection	Compressor over temperature,over current,high and low pressure,Phase sequence,phase-missing

Remarks:

1.The chilled water temperature of such chillers is - 5 deg C;

2.All the chillers contain ecological refrigerant r407/r134a when shipped; 3. These chillers listed on the sheets are air cooled type, and water cooled type of the same are

available;

4. All the parts, whole machine and the tube dimensions are up to standards;

5. Nonstandard parts, machines and tube connections can be customed; 6. Installation, commissioning and maintenance shall be performed by qualified service technicians.

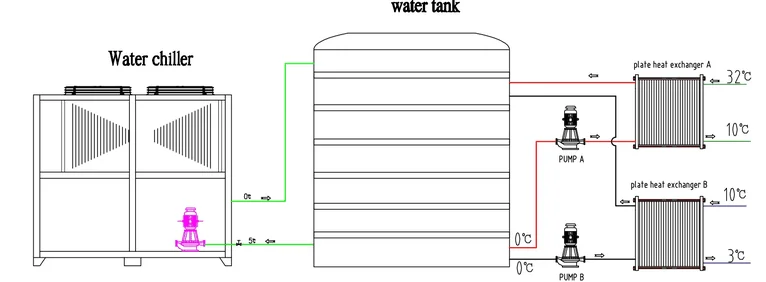

5. Fermentation samples from our clients fatory

Company Information

MGREENBELT is a leading specialized manufacturer of industrial process cooling equipment in Northern China and was founded by Mr. Zhang Gao Yuan in 2003. MGREENBELT is a Shandong based corporation located in Jinan, covering a total area of 34,000 square meters.

1). Professional manufacturer, ISO9001-2008

2). More than 612years’ experiences of manufacturing.

3).Customized solutions and products.

4).OEM/Small order accepted.

5).Lead time 15 days.

6).Tooling in house.

7).High quality control.

8).Competitive price.

Our Services

Before order: Our team will supply you the water chiller solution, include working, installation, shipping and etc, all will based on your working condition, clients just inform us what you want.

After order:Engineer team Tel:0086-531-80960819, and also can email us, any support need we will response within 24 hours.

If any quality problem the news parts will be sent within 3 days, shiping charge by us.

Payment term: 50% Down payment, the balance before shipment, or you also can show us if any special required.

Packaging & Shipping

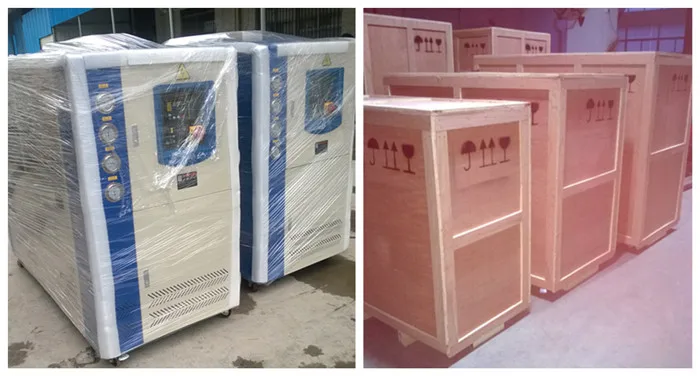

Package of water chiller: Standard export wooden case

Shipping by LCL, if your quantity is large we will arrange FCL.

Established in the year 2003, we, " Mgreenbelt Machinery Co., Ltd," are engaged in manufacturing, exporting and supplying Chillers, Cooling Towers, Heat Exchangers and Components. Our range is appreciated by the clients based in various parts of China and world for its characteristics, such as robust structure, longer service life and high performance. The durable products are manufactured by experienced workers, using graded alloys and qualified electronic components. Further, for clients' covenience, we undertake the designing and turnkey projects for the devices.

At the sound manufacturing facility, we undertake the production of high performance machines. The quality controllers test the range, to ensure that it is in compliance with the degree of prevailing quality standards. Moreover, we also offer after sales services to ensure all the queries to be handled within the shortest time. We would like to grow and improve by anticipating consumers' needs, offering a better solution than competitiors and supporting customers to be confident of getting fast answers of requirement.

We have been successfully in offering machines to projects of Packaged Equipment and System, Automobile Components Producing System, Food Making, Bakery, etc. to clients from domestic, USA, Canada, Australia, Ecuador, Sudan, Russia, South Africa, Dubai, Israel, India, Philippine, Singapore, Vietnam, Thailand and Korea, etc.
