Hitachi Water Cooled Chiller Glycol Water Cooling Chillers

FOB Price:

Get Latest Price

Min.Order Quantity:

1 Set/Sets

Supply Ability:

200 Unit/Units per Quarter

Port:

Qingdao, China

Place of Origin:

China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

MGREENBELT

Products Model:

MG-60WSL

Products Details
Company Profile

Quick Details

Brand Name: MGREENBELT

Model Number: MG-60WSL

Place of Origin: China (Mainland)

Packaging & Delivery

Packaging Details: Cooling water chiller in plywood case.
Delivery Detail: 25 Days

Specifications

Hitachi Water Cooled Chiller Glycol Water Cooling Chillers

Water Cooled Screw Chillers are widely used in plastic injection, extrusion, plating, mold, hydraulic, chemical, leather, printing, profiles of oxidation, reaction kettle, chemical fiber, vacuum coating, paper making, textile, central air conditioning and other industries.

Features of Low Temperature Recirculating Chiller
Adopt reliable well-known refrigeration compressors. Electric and refrigeration components are branded. Oxygen-free welding from refrigeration system, reduce the oxides and smooth the surface. RS485 communication function for automated management Screen liquid crystal display of chill water outlet and inlet with temperature setting.

Features of Low Temperature Recirculating Chiller

Adopt reliable well-known refrigeration compressors.
Electric and refrigeration components are branded.
Oxygen-free welding from refrigeration system, reduce the oxides and smooth the surface.
RS485 communication function for automated management
Screen liquid crystal display of chill water outlet and inlet with temperature setting.

Technical Data of 60HP Glycol Water Chiller Unit
Model	MG-60WSL
Outlet Cooling Water Temperature	0 degree celsius
Chiller Refrigeration Gas	R22, R407c
Cooling Capacity	132.1kW
Compressor Type	Semi-Hermetic Screw
Refrigeration Compressor Power	38.8kw
Start Method	Y-delta
Energy Control Way	25%, 50%, 75%, 100%
Chiller Unit Evaporator Type	Shell and Tube Evaporator
Chilled Glycol Water	22.6m3/h
Evaporator Pipe Diameter	DN80
Water Cooled Condenser	Shell and Tube Evaporator
Cooling Water Flow	32.2m3/h
Condenser Pipe Diameter	DN80
Water Chiller Dimension	25007501500mm

Water Cooled Industrial Chiller Configuration

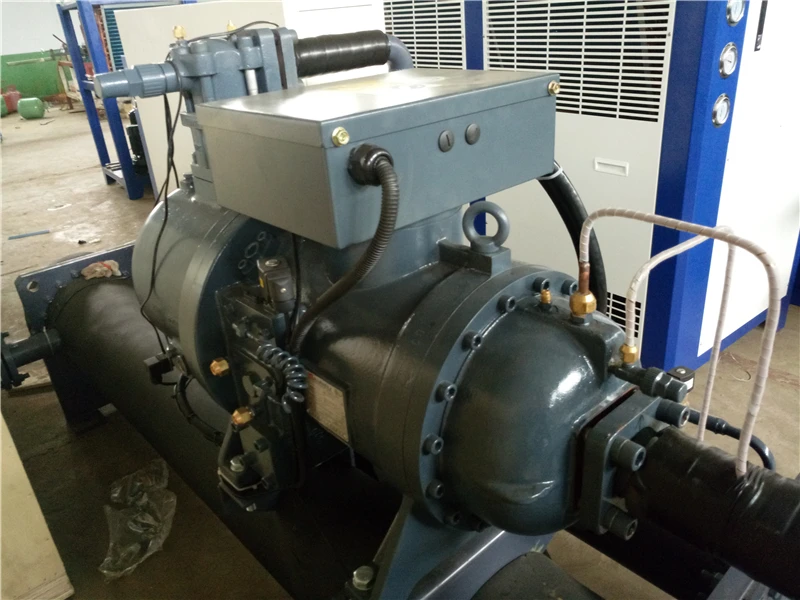

Refrigeration Semi Hermetic Screw Compressor
	High Efficiency Water Cooled Shell and Tube Condenser
Dry Filter on Screw Chiller Unit Industrial
	Microprocessor Control System of Industrial Water Screw Chiller RS485 Remote Connection If Requested
Side Picture of Screw Water Cooled Chiller

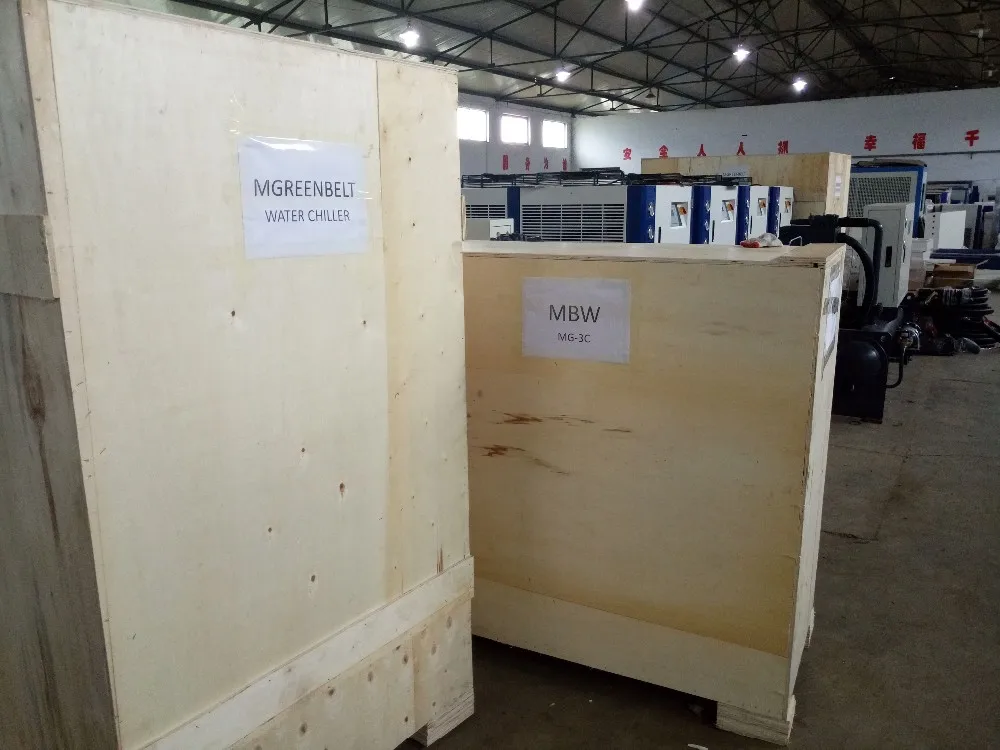

Industrial Electric Water Cooled Water Chiller Packing

Mgreenbelt chiller factory locates in Shandong. Produce industrial water chillers, including water cooled scroll chiller, screw chillers, air cooled scroll chillers, screw chiller unit, glycol water chiller, etc.

Contact me if you need water chillers!

Established in the year 2003, we, " Mgreenbelt Machinery Co., Ltd," are engaged in manufacturing, exporting and supplying Chillers, Cooling Towers, Heat Exchangers and Components. Our range is appreciated by the clients based in various parts of China and world for its characteristics, such as robust structure, longer service life and high performance. The durable products are manufactured by experienced workers, using graded alloys and qualified electronic components. Further, for clients' covenience, we undertake the designing and turnkey projects for the devices.

At the sound manufacturing facility, we undertake the production of high performance machines. The quality controllers test the range, to ensure that it is in compliance with the degree of prevailing quality standards. Moreover, we also offer after sales services to ensure all the queries to be handled within the shortest time. We would like to grow and improve by anticipating consumers' needs, offering a better solution than competitiors and supporting customers to be confident of getting fast answers of requirement.

We have been successfully in offering machines to projects of Packaged Equipment and System, Automobile Components Producing System, Food Making, Bakery, etc. to clients from domestic, USA, Canada, Australia, Ecuador, Sudan, Russia, South Africa, Dubai, Israel, India, Philippine, Singapore, Vietnam, Thailand and Korea, etc.
