Low-temperature Industrial Water Cooled Glycol Chemical Chiller

Low-temperature Industrial Water Cooled Glycol Chemical Chiller

FOB Price:
US 10,000-30,000 / Unit
Min.Order Quantity:
1 Unit/Units
Supply Ability:
300 Set/Sets per Month
Port:
Qingdao,Shenzhen,Guangzhou,Shanghai,Ningbo
Place of Origin:
Shandong, China (Mainland)
Payment Terms:
L/C,T/T,MoneyGram
Brand:
MGREENBELT
Products Model:
MG-70WL
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: MGREENBELT

    Model Number: MG-70WL

    Place of Origin: Shandong, China (Mainland)

  • Condition: New and Hot

    Type: Water-Cooled

    Cooling Capability(kw): 84.5kw

  • Voltage: 3PH~220V/380/415V~50HZ/60HZ

    Dimension(L*W*H): 2600*850*1700

    Weight: 1540KG

  • Certification: CE, ROHS, UL

    Warranty: 14 months

    After-sales Service Provided: Engineers available to service machinery overseas

  • Water tank: stainless steel

    Compressor type: Semi-hermetic screw type

    Condenser: Shell and tube

  • Antifreze oil: HBR-A01

    Refrigerant: R22/R134a/R410a/R407c

    Compressor start way: Y-delta

  • Evaporator: Shell and tube

    Energy range: 0,25,50,75,100

    Compressor brand: Bitzer/Hanbell

  • Item: Glycol chemical chiller

Packaging & Delivery

  • Packaging Details: International wooden case
  • Delivery Detail: 25 days

Specifications

Low-temperature Industrial Water Cooled Glycol Chemical Chiller

We are a quality solutive supplier,with 11 years' manufacture and sales experience in this field ,with good feedback from our customers depend on perfect considerate service and good quality,welcome to visit our factory and establish long term stable cooperative ralations.



Product Description



1.Questions about glycol chemical chiller

How to choose a water chiller is the first thing you should know about,this will make you get the right chiller you demand.

How to choose a water chiller?

  • what is the working condition at your side(close loop or open loop)?
  • Inlet and outlet chilled temperature?
  • Cooling capacity?
  • Chilled water flow rate?
  • Frequency and voltage?
  • The max ambient working temperature?



 2.Technical Specifications of glycol chemical chiller



Specification model

Unit

MG-70WL

Nominal cooling capacity

(KW)

84.5

Power consumption

KW

46.6

Running Current

A

82.7

Power supply

3PH-220V/380V/415V/440V-50HZ/60HZ

Cooling water flow

m3/h

48

Compressor

Type

Semi-hermetic screw

Quantity

1

Start-up mode

Y

Energy adjust range %

0,33,66,100 or 0,25,50,75,100

Power(kw)

46.6

Refrigerant

Type

R22/R407c/R134a/R410a

Control mode

Thermostatic Expansion Valve

Charge (KG)

42

Evaporator

Type

Shell and tube

Inlet and outlet pipe diameter(inch)

PT 2-1/2"

Condenser

Type

Shell and tube

Inlet and outlet pipe diameter(inch)

PT 3"

Dimension

L*W*H(mm)

2600*850*1700mm

Weight

kg

1540



3.Good features of glycol chemical chiller



1.Adopt Hanbell or Bitzer screw compressor, with famous refrigerated valve parts,improve cooling efficiency 20%

2.Diversity refrigerant available,R22,R407c,R134a,R410a
3.The outlet temperature can be chilled as low as -35 degree.
4.Adopt electrics of Schneider and imported programmable controller, with touchable LCD and man-machine interface in both Chinese and English.
5.Multiple protection devices, ensure the unit function well through out the year
6.Super scope of chilled water temperature to satisfy different requirement
7.Using ethylene glycol as antifreezer to protect the condenser.

4.Application industries that our chillers focus

Our chillers are used for controlled cooling temperature of products, mechanisms and factory machinery in a wide range.

Food &Beverages( Wine,Drink Confectionery, Chocolate, Storage)
Chemical (Petro Chemical, Paints, Solvents, Temperature Control)
Mechanical (Welding, Cutting, Profiling, Polishing, Rolling, Grinding)
Other (Wood, Ceramics, Gold & Silver, Pharmaceutical, Textile)

5.Water Cooling water flow of the complete system





6.More hot sell Screw water chillers in production,we have water/air cooled scroll/screw chillers in production,with large quantity of different models for diversity demands:

  • Screw water cooled low temp(-5~-35degree)/normal temp(0~35degree) produced.
  • Cooling capacity:17~2015.6kw(4.8~573RT)

  • Air cooled/water cooled scroll water chillers in large production with high efficiency.
  • 2.85~566kw(0.8~160RT)



7.Our customers' site show :





Packaging & Shipping



 8.Pakaging method and delivery Type

International standard wooden case adopted normally.shipping method decide by you,but we often check both air and sea voyage charge and comprare them ,last you choose the cheaper and reliable method.



Company Information

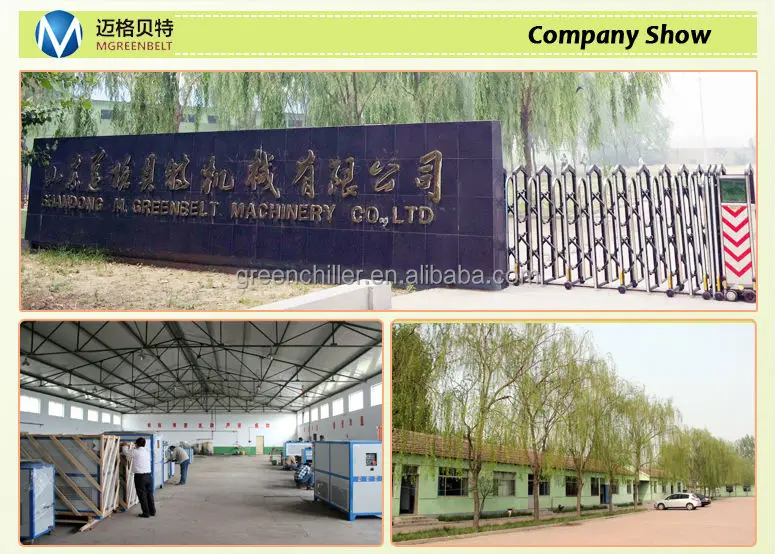

9.Factory&office

  • Establish on 2003 for industrial chiller production

  • Covering 34000 square meter factory area,2 workshops
  • Standard and customized design available

  • Professional engineer and technical support provide

  • More than 100 skilled workers and 10 engineers at factory

  • 20 excellent and enthusiasm salesman at office



We are a strong team and full passion to provide any solutions to our customers,if you have any interests for anything,please contact me.





Our Services



 9.Service&Support

A.14 Months warranty and life time technical maintenance offered.



B. Our technical office is available for assisting you with any difficulty during the assembly or functioning of our equipment.

C.24 hours working phone call: +8618769762328, Email/ Skype/ MSN/ Trade manager online to support; If necessary,door to door is ok.



D.Professional technical team and sales person give you perfect guideness regarding troubleshooting procedures via Internet and Phone any time when needed.



E. Free and Professional Training at our Factory under the relaxed condition.



10.Certificates we approval for water chillers.
