-10 Deg C Twin Compressor System Water Cooled Chemical Reactor Screw Chemical Chiller

FOB Price:

Get Latest Price

Min.Order Quantity:

1 Set/Sets

Supply Ability:

200 Set/Sets per Month

Port:

Qingdao, Shanghai, Ningbo,Guangzhou

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T

Brand:

MGREENBELT

Products Model:

MG-240WDL

Products Details
Company Profile

Quick Details

Brand Name: MGREENBELT

Model Number: MG-240WDL

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: Standadard woode case for Screw Chemical Chiller
Delivery Detail: Within 20 working days

Specifications

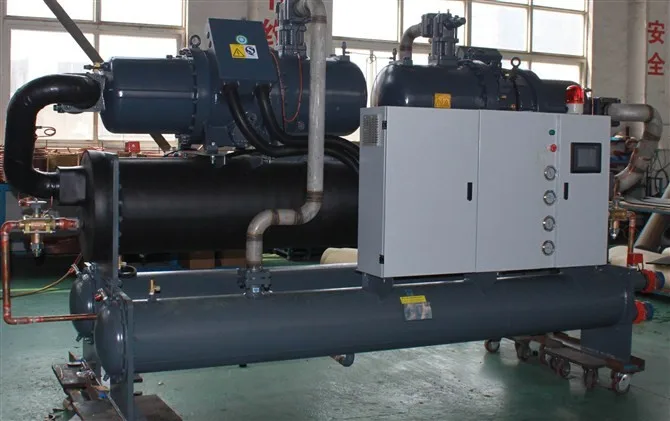

-10 Deg C Twin Compressor System Water Cooled Chemical Reactor Screw Chemical Chiller

We provide the Screw Chemical Chiller for reactor use more than 13 years, all product with CE certificate, and as a solution provider, we can give you a one-station purchase.

Product Description

1.Technical Details

0 deg C/-5 deg C/-10 deg Screw Chemical Chiller

1. Cooling capacity:

0 deg C outlet----- from 60kw to 680kw

-5 deg C outlet-----from 55kw to 560kw

-10 deg C outlet----from 45kw to 450kw

2. Compressor: Semi-hermetic screw type, Adopt BITZER/HANBELL/FUSHENG/COPELAND brand.

3. Refrigerant: R22/R134a/R404a/R407c

4. Cooling water inlet/outlet temperature: 30 deg C/40deg C.

2. Detailed Parameter of Screw Chemical Chiller

Model			MG-240WDL	MG-280WDL	MG-300WDL
Cooling capacity	0℃	kw	574	983	721.2
	-5℃	kw	471.4	561	592.4
	-10℃	kw	384.2	457.2	482.8
Power supply			3PH-380V-50Hz
Refrigerant	Type		R22/R407c/R404a
	Control		Thermostatic expansion valve
Compressor	Type		Semi-hermetic screw 2 sets
	Power supply(kw)		162.6	177.6	187.6
	Start		Y
	Capacity control		25-50-75-100(%) or 25-100(%)
Evaporator	Type		Shell and tube
	Water flow(m³/h)	0℃	98.4	117.1	123.6
		-5℃	80.8	96.2	101.6
		-10℃	65.9	78.4	82.8
	Dia.of inlet/outlet(inch)		DN150	DN200	DN200
Condenser	Type		Shell and tube
	Water flow(m³/h)		138.9	162.3	171.4
	Dia.of inlet/outlet(inch)		DN125*2	DN125*2	DN125*2
Protection System			Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.
Dimension	L	mm	4200	4200	4400
	W	mm	1500	1500	1500
	H	mm	1600	1600	1500
Noise(dB)			83.1	84.2	85.2
Weight(kg)			2700	3300	3900

3. Equippment list of the Screw Chemical Chiller

(1).Mgreenbelt Screw Chemical Chiller screw type compressor used, reliable and good performance

Chiller brands: Bitzer, Hanbell, RefComp,Copeland
Voltage: 220v,380v,415v,440v,460v,480v
Refrigerant: R22,R407c,R404a,R134a,R410a

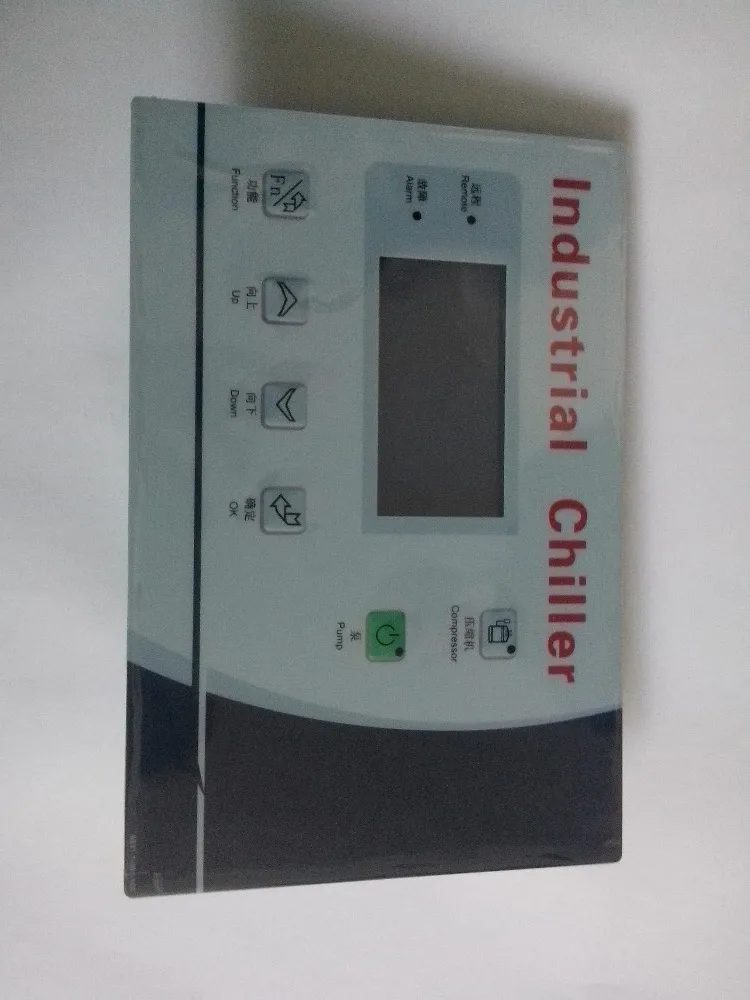

(2).Microprocessor controller provides diagnostic and precise temperature control

Or PLC controller based on customer project need.

Established in the year 2003, we, " Mgreenbelt Machinery Co., Ltd," are engaged in manufacturing, exporting and supplying Chillers, Cooling Towers, Heat Exchangers and Components. Our range is appreciated by the clients based in various parts of China and world for its characteristics, such as robust structure, longer service life and high performance. The durable products are manufactured by experienced workers, using graded alloys and qualified electronic components. Further, for clients' covenience, we undertake the designing and turnkey projects for the devices.

At the sound manufacturing facility, we undertake the production of high performance machines. The quality controllers test the range, to ensure that it is in compliance with the degree of prevailing quality standards. Moreover, we also offer after sales services to ensure all the queries to be handled within the shortest time. We would like to grow and improve by anticipating consumers' needs, offering a better solution than competitiors and supporting customers to be confident of getting fast answers of requirement.

We have been successfully in offering machines to projects of Packaged Equipment and System, Automobile Components Producing System, Food Making, Bakery, etc. to clients from domestic, USA, Canada, Australia, Ecuador, Sudan, Russia, South Africa, Dubai, Israel, India, Philippine, Singapore, Vietnam, Thailand and Korea, etc.
