Low Temperature Water cooled Screw ethylene glycol chiller

FOB Price:

US 5,000-15,000 / Unit

Min.Order Quantity:

1 Unit/Units

Supply Ability:

300 Set/Sets per Month

Port:

Qingdao,Shenzhen,Guangzhou,Shanghai,Ningbo

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,T/T,MoneyGram

Brand:

MGREENBELT

Products Model:

Screw ethylene glycol chiller

Products Details
Company Profile

Quick Details

Brand Name: MGREENBELT

Model Number: Screw ethylene glycol chiller

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: International wooden case
Delivery Detail: Shipped in 25 days after payment

Specifications

Low Temperature Water cooled Screw ethylene glycol chiller

Manufacture industrial chillers cooling capacity range from 2.85~2015.6kw,chilled outlet temperature from +35 to -35C degree.

Product Description

1.Applications industry of Screw ethylene glycol chiller

MGreenbelt water chillers are applied in variety industries like plastic injection and moulding industry,food and beverage industry,chemical and Pharmaceutical industry,electroplating industry,etc.which can control the chilled temperature precisely and greatly improve the production.

Plastics & Rubber	Food & Drinks	Machinery
Presses	Brewery	Electrical Supply
Injection Molding	Distillery	Material Handling
Extrusion Sheet & Profile	Winery	Laminating
Blow Molding	Bakery	Printing
Thermoforming	Dairy	HVAC
PET	Bottling	Power Generation
Chemical & Pharmaceutical	Carbonation	OEM
Laboratory	Food Processing	Construction
Jacketed vessels	Storage	Paper Products
Polyurethane foam mixers	Confectionary	Label
Natural gas	Medical	Textile
Industrial cleaning	MRI	Air compressor cooling
Healthcare	CT Scanner	Metal forming
Solvents	X-Ray	Resistance Welding Machinery
Paints	Linear Accelerator	Welding
	Laboratory	Rolling Mills
	Healthcare	Presses
		Machine Tools
		Extruders
		Profiling & Polishing
		Plating

2.Main features of Screw ethylene glycol chiller

This is an integrated semi-hermetic chiller with Bitzer or Hanbell screw compressor;

Supply temperature -10C, -5C,0C, 5C to 35C;
Refrigerant available:R22,R407C,R410A,R134A;
Power Supply: 3 PHASE-220/380/400/415/460/600V-50/60HZ;
Cooling capacity:80HP-670HP(68 TON-572 TON);
Compressor Adopt:Hanbell,Bitzer
Two independent compressors, respectively circuit loop, one broken,another can still work ;
New screw type compressor with 20%-30% higher in efficiency;
Cooling capacity control available at four steps(100%-75%-50%-25%), three steps(100%-66%-33%) or no steps control system;
Stainless Steel, cast iron shell and tube evaporator (Consult Factory for specific information on your model
Electronic expansion valves for increased efficiency and precise temperature control
Complete refrigerant charge from Factory
Continuous Capacity control
Controlled by microcomputer way
Comprehensive protection system

3.Standard complete water cooling system drawing

4.Technical Specification of Screw ethylene glycol chiller

Model		MG-80WS
Power supply		3Phase-380V-50Hz
Cooling capacity	KW	171.1 at -5C
	kCal/hr	147375
Compressor	Type	semi-hermetic screw
	Quantity	1
	Start method	Y-delta
	Energy control	25%-50%-75%-100%( start @ 25%)
	Power(kw)	58
Condenser	Type	Shell and tube
	Inlet/Outlet pipe dimension		DN100
	Cooling water flow(m3/h)		29.5
	Quantity		1
Evaporator	Type	Shell and tube
	Quantity		1
	Chilled water flow(m3/h)		43
	Inlet/Outlet pipe dimension		DN100
Refrigerant	Type		R22
	Control type		Thermostatic expansion valve
Machine Dimension		LWH(mm)	26008501700
Machine weight		kg	1680

Notes:Please contact with us ahead!!!

1.Our standard voltage supply is 380V/3P/50HZ.Different countries has different standards.It could be customized.
2.Refrigerant available:R22,R407C,R404A etc.
3.Various compressor brand.
4.Prices could be changed by products specification.But we will offer you the best price if you contact with us.

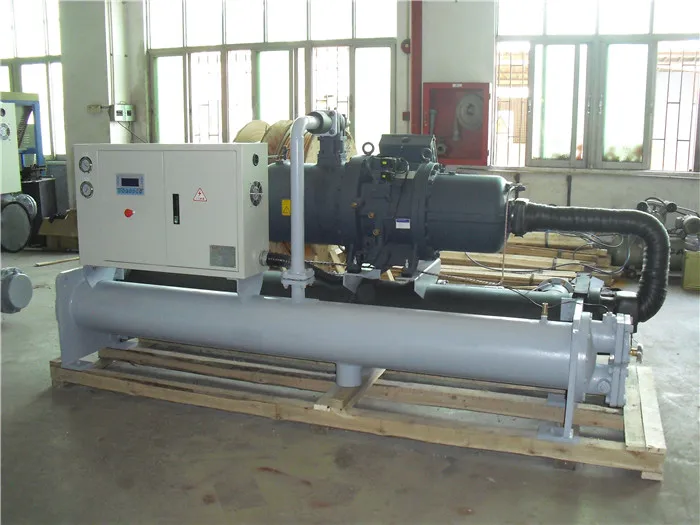

5. Finished Screw ethylene glycol chiller

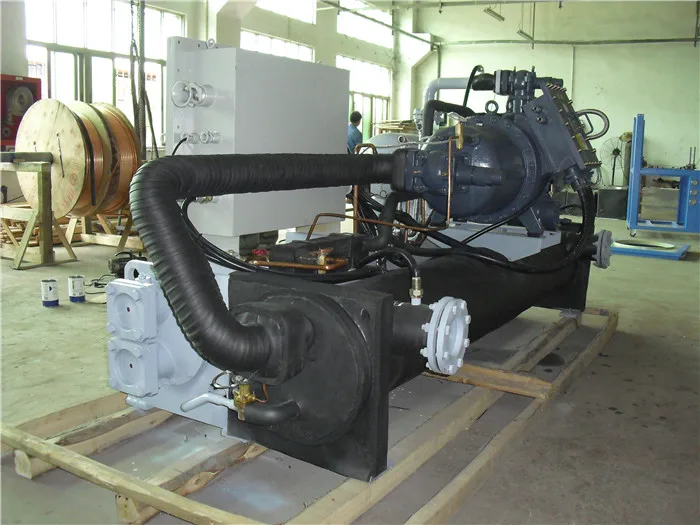

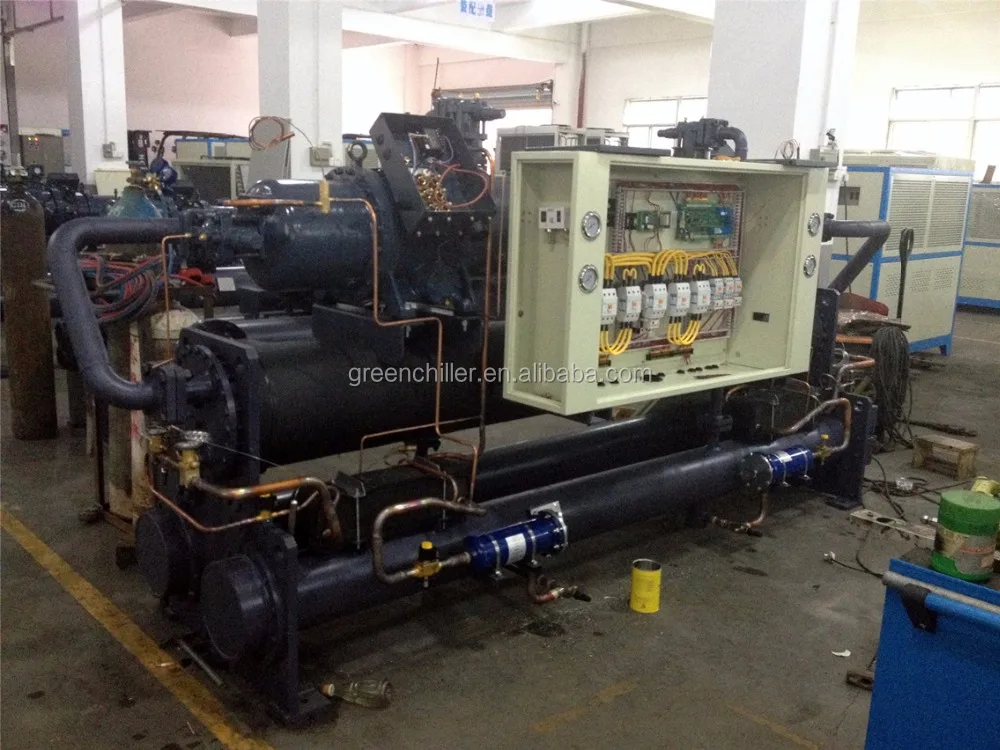

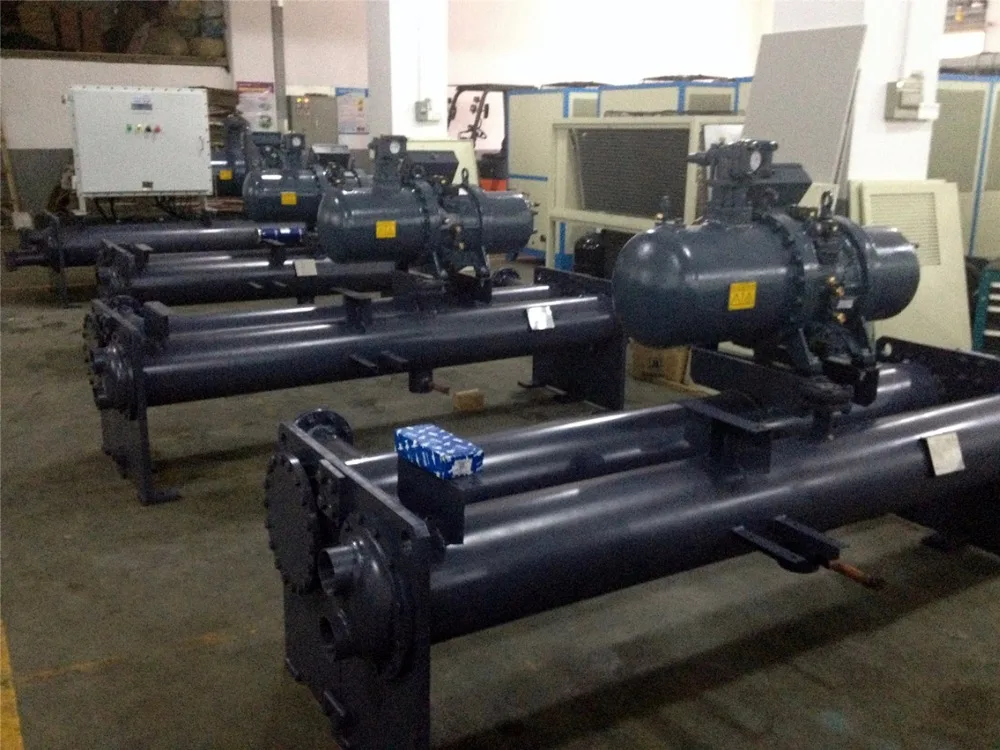

6.Production in factory

Whole system

7. Customer site photos

FAQ

8. Information you need to confirm and care

Q:How to choose a right model of ?
1).What's the water flow need?
2).What's the inlet and outlet temperature need?
3)What's the refrigerant? R22,R407c,R134a and etc.
4)What's th epower supply? Voltage/Frequency/Phase

Q:What's the lead time?
Within 20 working day.

Q:Can you provide the whole set ?
Yes, we will provide the whole sets, include pump, cooling tower.

Q:This model and type chiller is not what I need, what should I do?
Please tell us the questions 1, or your further requirements, then the solution will be sent to your email with prompt
