-15C Low Temperature Screw Compressor Water Cooled China Industrial Glycol Chiller

FOB Price:

US 5,000-20,000 / Unit

Min.Order Quantity:

1 Unit/Units

Supply Ability:

300 Set/Sets per Month

Port:

Qingdao,Shanghai,Shenzhen,Ningbo,Guangzhou

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

MGREENBELT

Products Model:

china industrial glycol chiller

Products Details
Company Profile

Quick Details

Brand Name: MGREENBELT

Model Number: china industrial glycol chiller

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: standard export wooden case
Delivery Detail: Shipped in 30 days after payment

Specifications

-15C Low Temperature Screw Compressor Water Cooled China Industrial Glycol Chiller

MGREENBELT Manufacture water cooled chiller for 12 years, we are not a water chiller machine seller, we are a cooling system solution provider. All machine is manufacture based on each customer's working requirements, and AutoCAD system design will be sent to customer for check.

Production & Factory

Features of china industrial glycol chiller

1.Compressor: use Hanbell (Taiwan) or Bitzer(Germany) screw type compressor, with four stage (25%-50%-75%-100%) to work and load in order to save energy and prolong the working life of the water cooled chiller;

2.Evaporator: Use MGREENBELT U-TYPE shell and tube type Evaorator with high efficient;

3.Condensor: Use MGREENBELT High efficient external screwed shell and tube type;

4.Electronic Expansion Valve: Use Danfoss Valve with high quality;
5.Superior Performance: international advanced semi-hermetric screw compressor; several refrigerant circuits insure no stop when one circuit needs maintenance; Low noise, efficient heat transfer, with heat recovery function;
6.Use PUNP PLC which is with programmable touch screen controller;
7. Easy Installation: compact structure, take up limited space; refrigerant has been filled in the chiller so as to save time and expenses;
8. Multiple protection, safe and reliable, easy installation, unattended operation.

Parameter data of china industrial glycol chiller

More different models, please contact us to send.

Product		water chiller price
Model		MG-40WSL
Power supply		3PH-380V-50HZ
Chilled water flow(m3/h)		10.2
Cooling capacity	KW	59
	kCal/hr	50818
Compressor	Type	Semi-hermetic screw
	Quantity	1
	Start method	Y-delta
	Energy control	0-25%-50%-75%-100%( start @ 25%)
Condenser	Type	Shell and tube
	Cooling water flow(m3/h)		16.5
	Quantity	1
Refrigerant	Type	R22/R404A
Expansion valve	Type	Thermostatic expansion valve
Evaporator	Type	Shell and tube
	Inlet/Outlet pipe dimension		2-1/2"
Safety protection	Compressor over temperature,over current,high and low pressure,Phase sequence,phase-missing
Dimension	LWH(mm)	23008001450
Machine weight	kg	1150

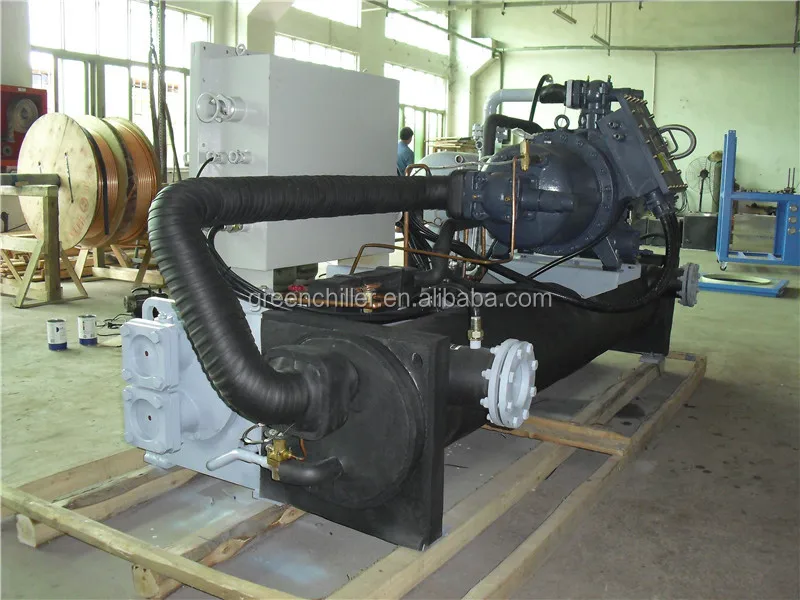

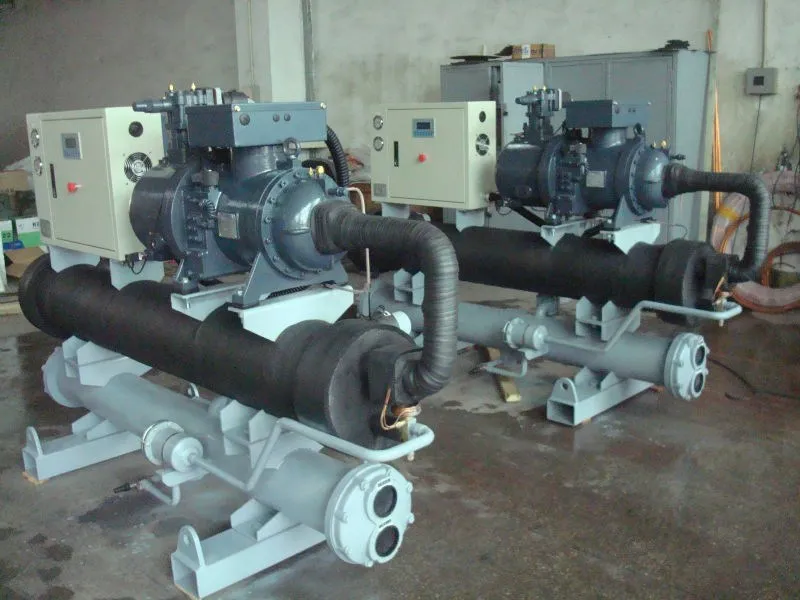

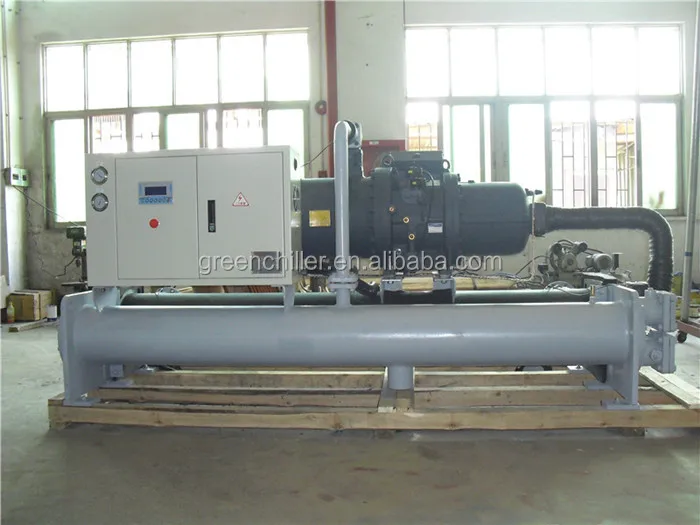

Detailed finish production of china industrial glycol chiller

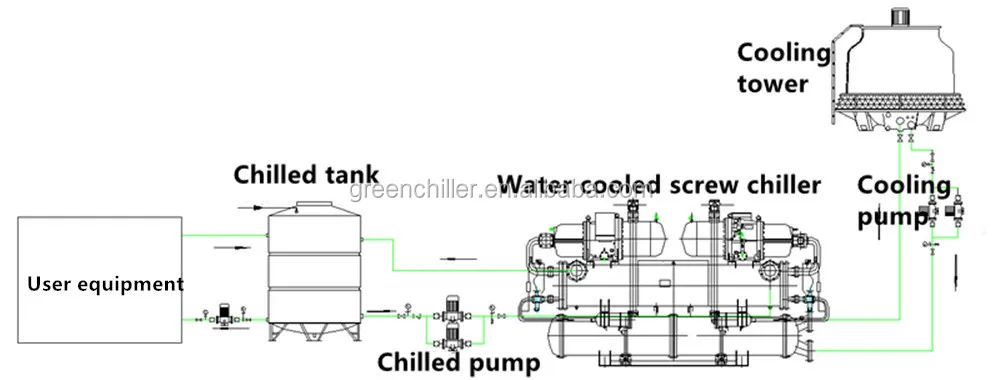

Cooling system drawing for standard system, special different is available.

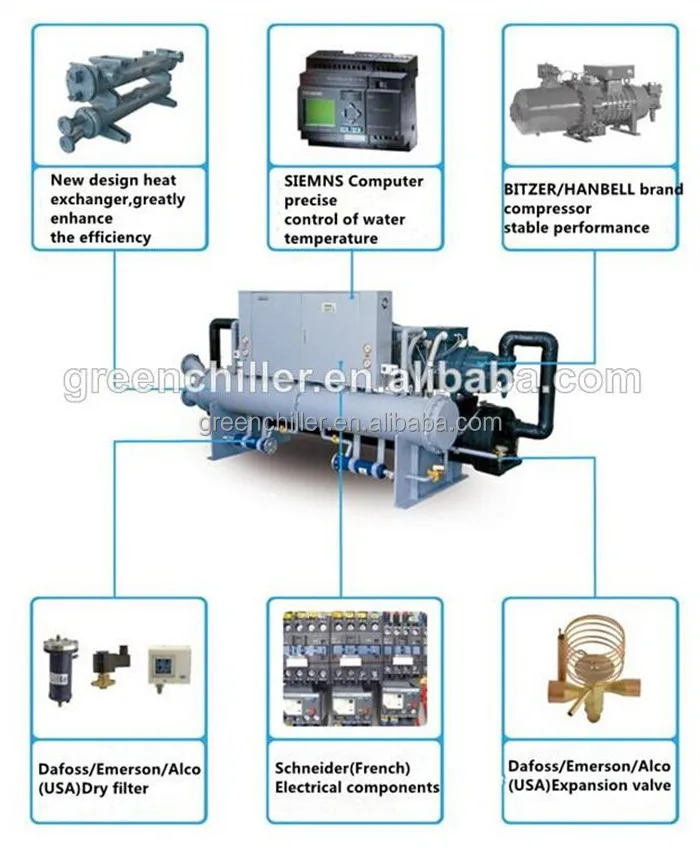

Components of china industrial glycol chiller

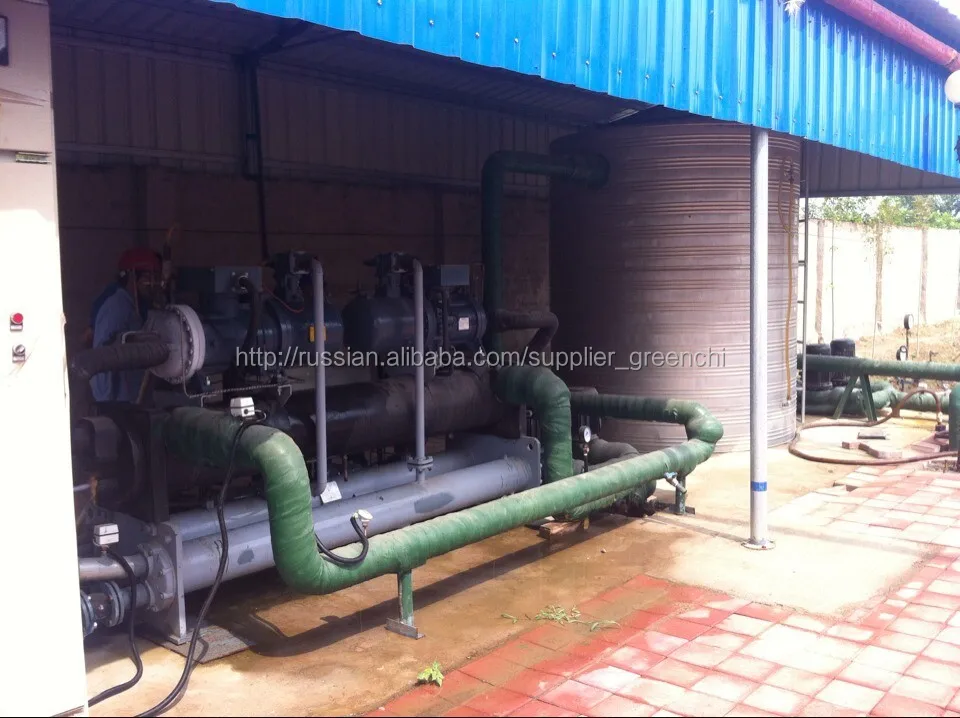

Customer site

Packaging & Shipping

Our Services

Warranty

1). With one year warranty.

2). Free spare parts along with the shippment within warranty, ang agent price out warranty.

3). Per your special requests are also welcome for discussion.

Customize accept

Company Information

About us

1).Cooling solution provider, 12 years experience for R&D,more than 70% customers’ choice;

2).2 workshops covers more than 80,000 square meter;

3).More than 100 employees, including over 20 senior engineers, 40 technicians;

4).The biggest water chiller equipment manufacture in North of China;

5).Design and customize for special cooling project;

6).ISO9001,CE,RoHs certificate;

7).Manufacturing and export scope include:

Established in the year 2003, we, " Mgreenbelt Machinery Co., Ltd," are engaged in manufacturing, exporting and supplying Chillers, Cooling Towers, Heat Exchangers and Components. Our range is appreciated by the clients based in various parts of China and world for its characteristics, such as robust structure, longer service life and high performance. The durable products are manufactured by experienced workers, using graded alloys and qualified electronic components. Further, for clients' covenience, we undertake the designing and turnkey projects for the devices.

At the sound manufacturing facility, we undertake the production of high performance machines. The quality controllers test the range, to ensure that it is in compliance with the degree of prevailing quality standards. Moreover, we also offer after sales services to ensure all the queries to be handled within the shortest time. We would like to grow and improve by anticipating consumers' needs, offering a better solution than competitiors and supporting customers to be confident of getting fast answers of requirement.

We have been successfully in offering machines to projects of Packaged Equipment and System, Automobile Components Producing System, Food Making, Bakery, etc. to clients from domestic, USA, Canada, Australia, Ecuador, Sudan, Russia, South Africa, Dubai, Israel, India, Philippine, Singapore, Vietnam, Thailand and Korea, etc.

Basic Information

Business Type: Manufacturer
Main Products: Industrial water chillers, air-cooled chillers, water-cooled water chillers, screw air/water cooling chillers, glycol water chiller, refrigeration compressor,axial fan,air cooling condenser, evaporator,water pump,cooling tower,etc.
Location: Shandong, China (Mainland) Asia
Year Established:

Trade Capacity

Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery
Accepted Payment Currency: USD,RMB
Accepted Payment Type: L/C,T/T,Western Union
Nearest Port: Qingdao,Shanghai,Shenzhen,Guangzhou
