Brand Name: XURUI
Model Number: XR
Place of Origin: Shanghai, China (Mainland)
1.World famous refrigerant compressor;

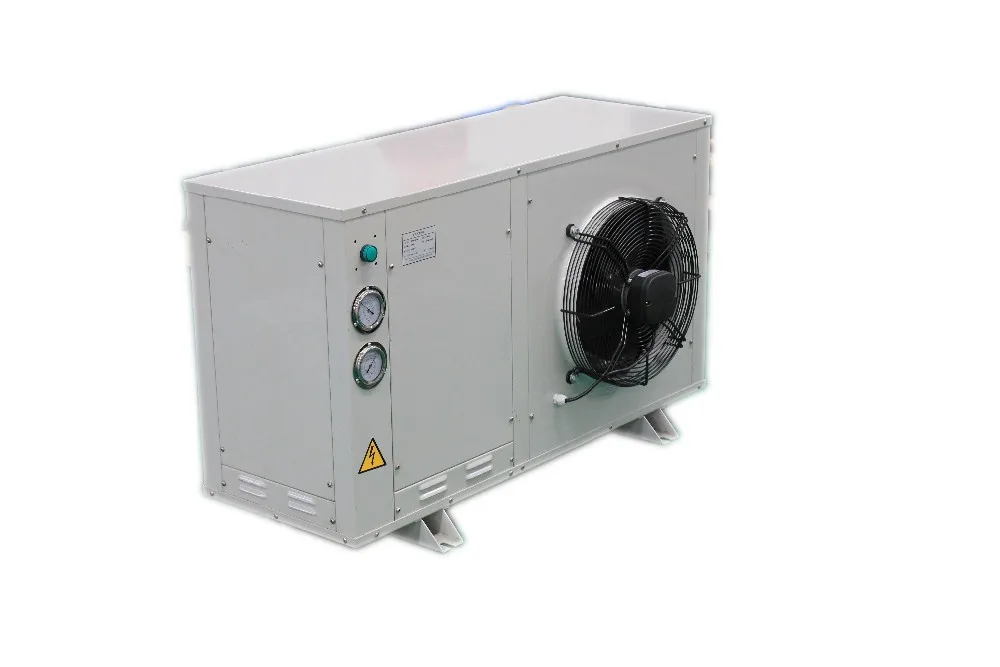

2.Compact box type construction for easy installation
3.High efficient and low noise 6-pole condenser fan motor
4.Condensing fan motor control available for duo fan unis
5.World famous refrigerant components
6.With electric control box, and multi protection functions including phase lack, overload, too constant compressor on/off and high/low pressure.
Parts of model specification
Model |
XJW0.6MATY |
XJW01MATY |
XJW1.7MATY |
XJW02MATY |
XJW03MATY |
|||
Room temperature |
-5~5℃ |
|||||||
Refrigerant |
R404A |
|||||||
Power supply |
220V/50HZ |
380V/50HZ |
||||||
Comp |
Model |
Hermetical |
||||||
Type |
CAJ9480Z |
CAJ9510Z |
CAJ4519Z |
TFH4524Z |
TFH4531Z |
|||
Max current (A) |
6.6 |
8.0 |
15.4 |
6.3 |
8.2 |
|||
Con fan |
Fan number |
1 |
1 |
1 |
1 |
1 |
||
Air flow (m3/h) |
1700 |
1700 |
1700 |
3200 |
3200 |
|||
Fan power (W) |
80 |
80 |
80 |
100 |
100 |
|||
Fan voltage |
220V/50HZ |
|||||||
Cap & Input |
Te 0℃ |
Cap(W) |
1874 |
2310 |
4070 |
4830 |
6143 |
|
Input (W) |
820 |
980 |
1850 |
2090 |
2610 |
|||
Te -5℃ |
Cap(W) |
1553 |
1924 |
3340 |
3890 |
4990 |
||
Input (W) |
760 |
910 |
1720 |
1920 |
2385 |
|||
Te -10℃ |
Cap(W) |
1266 |
1572 |
2700 |
3050 |
3970 |
||
Input (W) |
700 |
840 |
1590 |
1740 |
2150 |
|||
Pipe |
Gas (inch) |
1/2SAE |
5/8SAE |
5/8SAE |
5/8SAE |
7/8SAE |
||
Liquid (inch) |
3/8SAE |
3/8SAE |
3/8SAE |
3/8SAE |
3/8SAE |
|||
Size Drawing |
NO.1 |
NO.1 |
NO.1 |
NO.2 |
NO.2 |
Model |
XJW01LATY |
XJW1.5LATY |
XJW02LATY |
XJW03LATY |
||
Room temperature |
-15℃ ~-20 ℃ |
|||||
Refrigerant |
R404A |
|||||
Power supply |
220V/50HZ |
380/50HZ |
||||
Comp |
Model |
Hermetical |
||||
Type |
CAJ2446Z |
CAJ2464Z |
TFH2480Z |
TFH2511Z |
||
Max current (A) |
7.9 |
10.0 |
4.8 |
5.0 |
||
Con fan |
Fan number |
1 |
1 |
1 |
1 |
|
Air flow (m3/h) |
1700 |
1700 |
3200 |
4600 |
||
Fan power (W) |
80 |
80 |
100 |
160 |
||
Fan voltage |
220V/50HZ |
|||||
Cap & Input |
Te -20℃ |
Cap(W) |
1296 |
1673 |
2416 |
3348 |
Input (W) |
950 |
1250 |
1837 |
2312 |
||
Te -25℃ |
Cap(W) |
1005 |
1300 |
1865 |
2518 |
|
Input (W) |
837 |
1100 |
1585 |
1960 |
||
Te -30℃ |
Cap(W) |
755 |
990 |
1347 |
1817 |
|
Input (W) |
723 |
955 |
1326 |
1635 |
||
Pipe |
Gas (inch) |
1/2SAE |
5/8SAE |
5/8SAE |
5/8SAE |
|
Liquid (inch) |
3/8SAE |
3/8SAE |
3/8SAE |
3/8SAE |
||
Size Drawing |
NO.1 |
NO.1 |
NO.2 |
NO.2 |
