Low Consumption 5w Motorized Mini Electric Actuator

FOB Price:

US 1-30 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

1800 Piece/Pieces per Week

Port:

Changsha, Shanghai, Shenzhen

Place of Origin:

Hunan, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

WINNER

Products Model:

WRA-6302A

Products Details
Company Profile

Quick Details

Brand Name: WINNER

Model Number: WRA-6302A

Place of Origin: Hunan, China (Mainland)

Packaging & Delivery

Packaging Details: Standard Export Packing, Kraft Box, 57 pcs actuator in a carton
Delivery Detail: Shipped in 5 days after payment

Specifications

Low Consumption 5w Motorized Mini Electric Actuator

Product Description

*Product Name*	Low Consumption 5w Motorized Mini Electric Actuator
*Actuator motor*	*AC motor*
*Power supply*	*24+/-10%VAC*
*Output torque*	*4N.m*
*Running time*	*16S*
*Pressure grade*	*PN20*
*Shell color*	*Orange,Yellow,Blue,Black*
*OEM & ODM*	*Accept*
*Medium temperature*	*2~90° -10~120°*
*Thread Type*	*BSP NPT*

Description
Winner motorized ball valve consists of on/off type or 3-point type actuator and W8BV… series ball valve, which have compact structure, stable operation, excellent capacity of water stoppage, large water flow rate, zero dirt block and low torque. Winner motorized ball valves are widely used in HVAC system, heating system, water treatment system and some industrial equipments.

Application
HVAC system,

heating system,

Water treatment system,

Industrial equipments

Operational mode
Winner motorized ball valve is motor-operated by a type of WRA-63…, and WRA-63…A actuator. The actuator is controlled by a modulating on/off or 3-piont control system and move the ball of the valve, to the opening position dictated by the control signal.

mini electric actuator Material

Part	Material
Valve Body	Hpb59-1
Seal	Ball: PTFE+EPDM with double O-ring
	Stem: PTFE+EPDM with double O-ring
Actuator Shell	PC+GF10
Actuator Base	PC+GF10
Actuator Revolving Shaft	POM

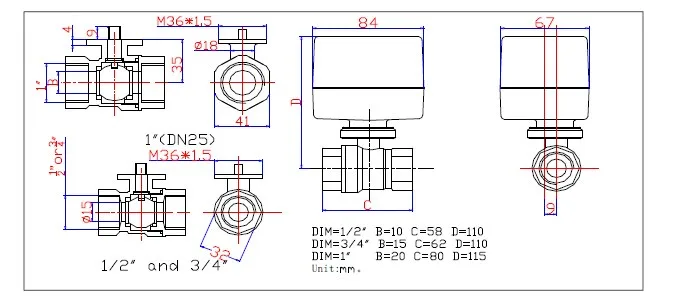

mini electric actuator Body

Valve Body Model	Type	DN(mm)	DN(inches)	Kvs(m3/h)	Medium	Temperature	Admissible pressure	Closing Temperature
W8BV215	2way	DN15	1/2"	8.2
W8BV220		DN20	3/4"	21	Cool/hot water
W8BV225		DN25	1"	26	50% glycol solutions	2~90 C	2.0MPa	1400KPa
W8BV315	3 way	DN15	1/2"	8.2
W8BV320		DN20	3/4"	21
W8BV325		DN25	1"	26

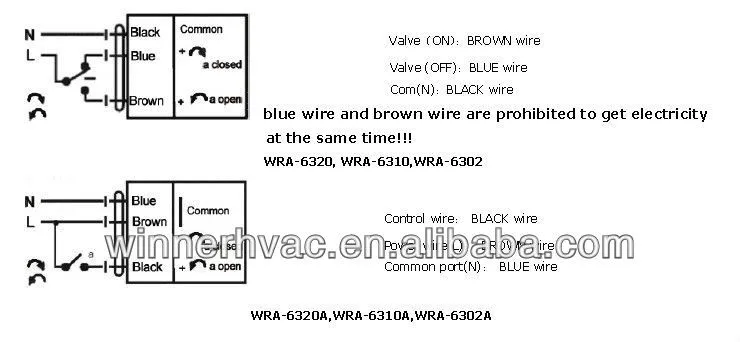

mini electric actuator Actuator

Model No.	Working Voltage	type	torque	Consumption	On/off time	Valve body
WRA-6320	230VAC±15% 50/60Hz	3-piont or on/off	>4N.m	7W	50Hz:16S 60Hz:12S	W8BV215 W8BV220 W8BV225 W8BV315 W8BV320 W8BV325
WRA-6320A	230VAC±15% 50/60Hz	On/off
WRA-6310	110VAC±15% 50/60Hz	3-piont or on/off
WRA-6310A	110VAC±15% 50/60Hz	On/off
WRA-6302	24VAC±15% 50/60Hz	3-piont or on/off
WRA-6302A	24VAC±15% 50/60Hz	On/off

Pictures Of Product

More Products For You To Choose

Certificate of Products

Production line of Product

Exhibition and Customer

Our Services

Before service:

1.We have full stock and can deliver within short time.
2.OEM and ODM order are accepted, Any kind of logo printing or design are available.
3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

After you choose:

1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment
3. Email you the tracking no., and help to chase the parcels until it arrive you.

After-sale service:

Winner electronic was established in 2005 in Wuhan ,Hubei province, China. Winner electronic is the first company in China to develop, produce and sell small automotive electric ball valve and put the ball valve for central air condition system. After first generation, second generation, third generation improvement, our products are now widely used for HVAC system, hospital equipment system and environmental control system. All our valves are our patent products and they are CE, ROSH certified. Winner has developed to be the most professional which has the longest experience in electronic ball valve manufacturer. In 2010, winner set up its branch in Changsha ,Hunan Province to match up the fast developing market.

Our company is a professional supplier of motorized ball valves, automatic control valves and thermostats, which are widely used in HVAC equipment, water treatment systems and some industrial equipments. With high-quality products, excellent services and a good reputation, we have won great support from customers around the world. Thus, our company scale has expanded. We also offer all kinds of OEM/ODM services. At present, we export products to America, Europe, the Middle East and other countries in Asia. We have established long-term stable and good business relationships with many manufacturers and wholesalers around the world. Currently, we are looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
