Home > Products > Heating > Electric Actuator Valve

AC24V 0~10V/4~20mA Modulating Control Flange Connection 6" Electric Ball Valve DN150

FOB Price:

US 200-300 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

2800 Set/Sets per Week

Port:

Changsha

Place of Origin:

Hunan, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,Paypal

Brand:

WINNER

Products Model:

WRAV-2150

Products Details
Company Profile

Quick Details

Brand Name: WINNER

Model Number: WRAV-2150

Place of Origin: Hunan, China (Mainland)

Packaging & Delivery

Packaging Details: Carton package , 39 pcs per carton, carton size ; 50*33*29cm
Delivery Detail: --

Specifications

AC24V 0~10V/4~20mA Modulating Control Flange Connection 6" Electric Ball Valve DN150

Product Description

Valve Type: 2 Way or 3 Way

Valve threaded: BSP/NPT Threaded

Application: Water flow control

Valve Material: Brass/Bronze/SS304

Valve size: DN65/DN80/DN100/DN125/150

Valve port: Full bore/Reducing Port

Electric DN150 Ball Valve Specifications

Actuator power: AC24V

Control type: 0~10V/4~20mA Proportional Control type

Valve type: 2-Way

Valve size; DN150

Valve connection: Flange connection

*Product Name*	ball valve dn150
*Valve body:*	*Forged brass, Hpb59-1*
*Seal: ball:*	*EPDM+PTFE, with double O-ring*
*Ball:*	*Nickle-plated brass*
*Actuator shell:*	*PC+10GF*
*Actuator revolving shaft:*	*POM*
*OEM & ODM*	*Acceptable*
*Thread Type*	*BSP NPT*

Actuator Specification

Output Torque	40N.m
Model Code	WRAV-2..B	WRAV-2..A	WRAV-2..
Power Voltage	AC220V	AC/DC24V	AC120V
Running Time	30..60s (1 wire control 70~100s)
Working Consumption	4VA, 2W
Keeping Consumption	2VA, 1W
Output Angle	90 Degree
ON/OFF or 3~Point	2 wires or 1 wire control
ON/OFF Feedback	10KΩ
Modulating Signal 1	DC0(2)...10V (100KΩ )
Moduating Signal 2	DC0(4)...20mA ( 500Ω)
Modulating Feedback	DC0(2)-10V
Electric Rating	3A@AC250V
Protect rank	IP54
Woking Ambient	-10----+55°C 0----90% RH
Max dB	40dB(A)

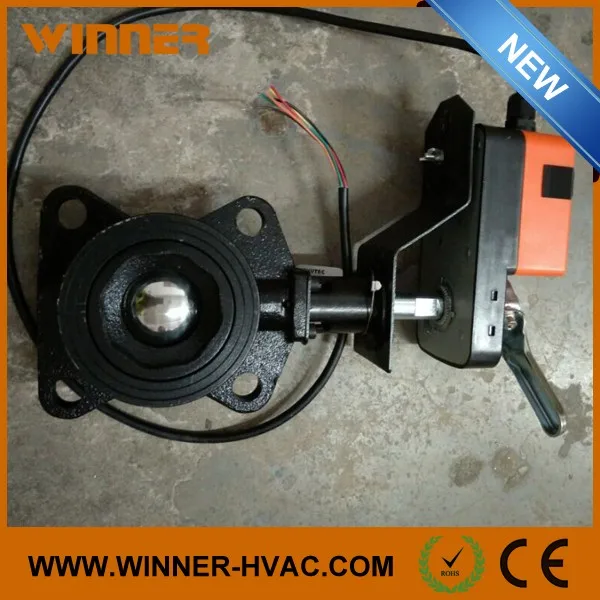

Valves Pictures

More Products For You To Choose

Certificate of Products

Production line of Product

Exhibition and Customer

Our Services

Before service:

1.We have full stock and can deliver within short time.
2.OEM and ODM order are accepted, Any kind of logo printing or design are available.
3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

After you choose:

1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment
3. Email you the tracking no., and help to chase the parcels until it arrive you.

After-sale service:

1.We are very glad that customers give us some suggestion for price and products.
2.If you have any question,please contact us freely by E-mail or Telephone.

Our Company View

FAQ

Q. what is your payment term?

A: T/T 30% down payment, balance to be paid before shipment. or L/C.

Q: How do you control the products’ quality?

A: 1. High quality mold.
2. Raw materials control.
3. Production process quality control.
4. Final inspection.
5. Water testing (no leaking).

Q:Could I use my own logo or design on goods?

A:Yes.Customized logo and design on production are available.

Q: Can I get samples from your factory?

A: Yes, Samples can be provided.

Q: If products have some quality problem, how would you deal with?

A: We will responsible for all the quality problems.

Contact Information

Winner electronic was established in 2005 in Wuhan ,Hubei province, China. Winner electronic is the first company in China to develop, produce and sell small automotive electric ball valve and put the ball valve for central air condition system. After first generation, second generation, third generation improvement, our products are now widely used for HVAC system, hospital equipment system and environmental control system. All our valves are our patent products and they are CE, ROSH certified. Winner has developed to be the most professional which has the longest experience in electronic ball valve manufacturer. In 2010, winner set up its branch in Changsha ,Hunan Province to match up the fast developing market.

Our company is a professional supplier of motorized ball valves, automatic control valves and thermostats, which are widely used in HVAC equipment, water treatment systems and some industrial equipments. With high-quality products, excellent services and a good reputation, we have won great support from customers around the world. Thus, our company scale has expanded. We also offer all kinds of OEM/ODM services. At present, we export products to America, Europe, the Middle East and other countries in Asia. We have established long-term stable and good business relationships with many manufacturers and wholesalers around the world. Currently, we are looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.

Basic Information

Business Type: Manufacturer
Main Products: Motorized Ball Valve, Control Ball Valve, Electric Ball Valve, Thermostat
Location: Hunan, China (Mainland) Asia
Year Established:

Trade Capacity

Accepted Delivery Terms: FOB,CIF,EXW
Accepted Payment Currency: USD,RMB
Accepted Payment Type: T/T,Western Union,PayPal
Nearest Port: Shenzhen,Guangzhou,Shanghai

Company Photos
