HI-TEK Brass air brake compression fitting,male elbow

FOB Price:

US 0.5-3.2 / Unit

Min.Order Quantity:

500 Unit/Units

Supply Ability:

per

Port:

ningbo or shanghai

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

CHINA

Products Model:

hk-0382

Products Details
Company Profile

Quick Details

Brand Name: CHINA

Model Number: hk-0382

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: export packing
Delivery Detail: within 12days after receive deposit

Specifications

Product Description

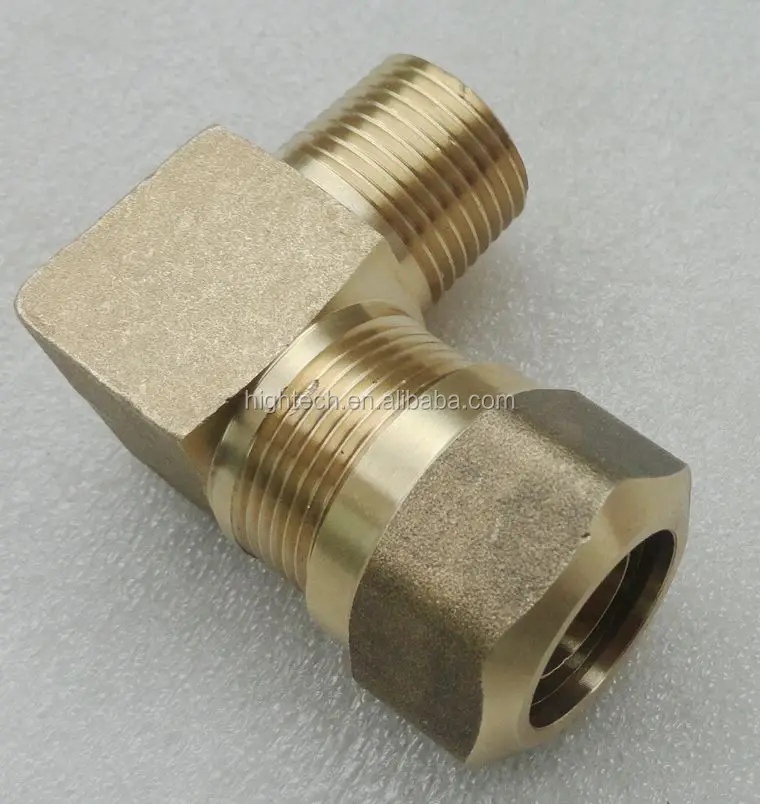

Brass Compression Fitting -male elbow. For use with truck and tractor trailer nylon air brake tubing

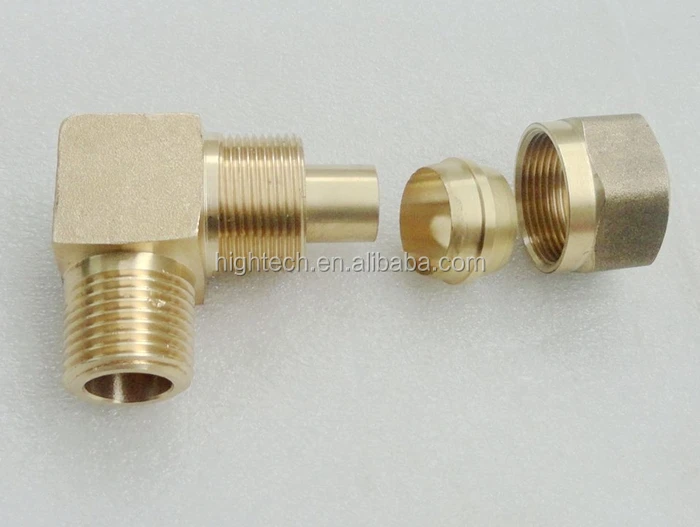

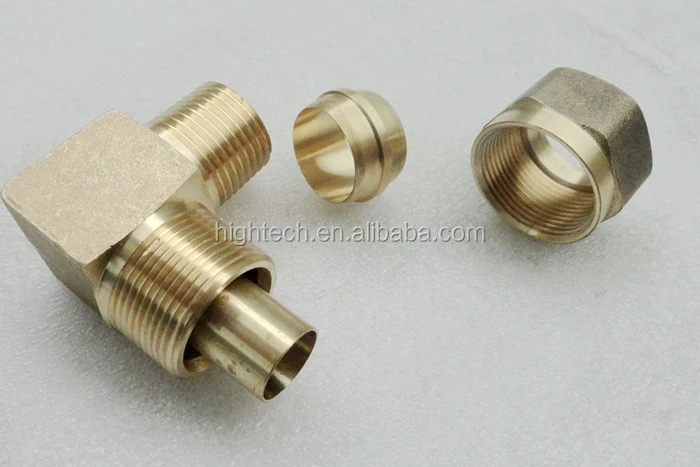

Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing
• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).
