LOVEHOT Phenolic Foam HVAC Ductwork

FOB Price:

US 4-4.5 / Square Meter

Min.Order Quantity:

1000 Square

Supply Ability:

6000 Square per Meter/Square

Port:

Xiamen

Place of Origin:

Fujian, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

LOVEHOT

Products Model:

TD-PFAA

Products Details
Company Profile

Quick Details

Brand Name: LOVEHOT

Model Number: TD-PFAA

Place of Origin: Fujian, China (Mainland)

Packaging & Delivery

Packaging Details: 12 pcs per paper carton
Delivery Detail: --

Specifications

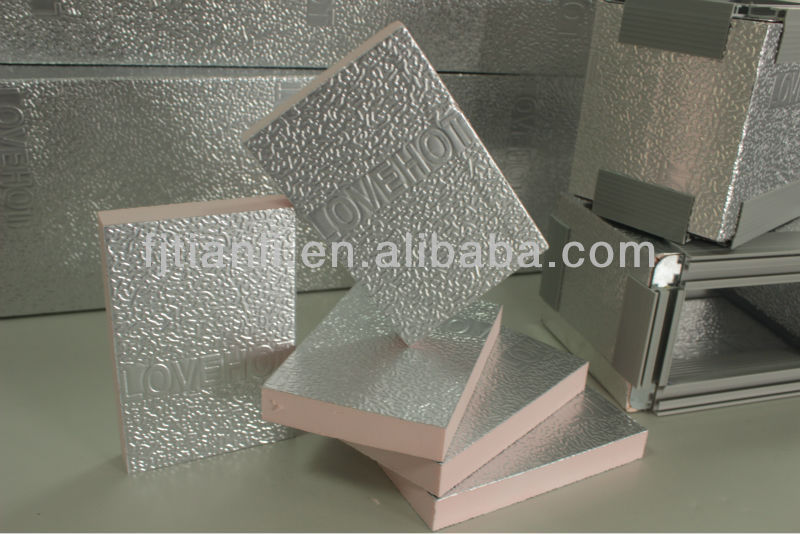

The LOVEHOT® Phenolic Foam HVAC Pre-insulated Duct System comprise rigid Phenolic insulation foam faced on internal side with a protective 50 micron aluminum foil and external side with 50 micron aluminum foil or 150 micron Galvanized Iron or 150 micron Painted Steel Sheet. They are completely CFC and HCFC free, high intension, fire proof, especially suited for use in HVAC ductwork system. We also supply all kinds of tools and accessories needed for ductwork fabrication and installation.The phenolic foam duct panel can be fabricated into all kinds of rectangular(bended) ducts by cutting and adhesive connecting, then can be assembled into the air ducts of different specifications by using the fire-proof flange and adhesive. It’s widely used for the ventilation systems of central air conditioning units in hotels, apartments, hospitals, office buildings and other buildings.

Advantages compared to traditional insulated Sheet Metal Ductwork:

Lower heat conductivity, higher thermal efficiency

Low density, light weight

Foamed with CFC/HCFC free materials, environment protective

Hermetic seal ensures little air leakage

It’s corrosion protective, hygeian, and has a beautiful appearance.

Foamed with closed-cell structure, it’s water-proof and sound-insulated.

Easy making, rapid installing and convenient maintenance saves cost.

No protrudent flange on the connections, it can save a lot of building space.

Specification of LOVEHOT® Phenolic Foam Pre-insulated Duct Panel

Item	Unit	Specification
Panel Structure		Alu./Foam/Steel
Standard Panel Size	mm	2950120020
Alu. Foil Thickness	mm	0.05
Alu. Foil Thickness	mm	0.05
Foam Density	kg/m3	48
Thermal Conductivity	w/m.k	0.028
Combustibility Property		Class 0 (BS476 Part 6 & 7) Class A (ASTM E84)
Water Absorption	%	1.9
Working Temperature	°C	-250 to +150
Maximum Allowable Wind Velocity	m/s	≤12
Continuous Running Maximum Temperature	°C	≤120
Working Pressure	Pa	≤1500

Fujian Tenlead Advanced Material Co,. Ltd is located in the biggest industrial zone of Pengkou, Liancheng, covering an area of total 200,000 sq. It is a large Innovative enterprises which combining with design, production and marketing of Phenolic Foam(PF) Insulation products. Company insist the technology as a pilot and focusing on the research and development and application of construct insulation products, decoration material. And our company is very strong, owns advanced equipment, with a total RMB investment of 1.5 billion , is the key enterprises in Fujian Province.
While focus on our own constructure and development, We also had a long-term cooperation with major universities and professional organizations such as Xi'an University, Qingdao Technological University, Beijing University of Chemical Technology, Shanghai Fudan University, Xiamen University Institute of Chemical Technology and established cooperative relations with all of them. Nowadays, we have 12 experts, 35 senior engineers and 56 research personnels. 80% of them are undergraduate, and others are postgraduate. We obtained more than 30 patents from provincial-level R & D center.
At present the products already across all over the country, there are offices and agents in the major cities. Also our products has been exported to America, Germany, Russia,Kuwait, Korea,Saudi Arabia, Japan, India, Indonesia, Taiwan and Hong Kong.

Basic Information

Business Type: Manufacturer,Trading Company
Main Products: 1.Phenolic Foam Insulation Boards 2.Phenolic Foam Pre-insulated Ducting Panels 3.Phenolic Foam Insulation Pipes 4.Phenolic Foam Sandwich Panels 5.Phenolic Foam Wall Insulation Boards 6.Phenolic Foam Roof Insulation Panels 7.PU Foam Pre-insulated Ducting Panels
