China Competitive Price Dual Spiral Quick Freezing Machine

Product Introduction

SL series spiral freezer is a new type frozen one develop and manufactured by us. It is a kind of high efficient freezing device. Which represents the development direction of blast freezers. Compared to other freezers, this type freezer has the advantages of constructed compactly, saves occupied area, large capacity and energy saving.

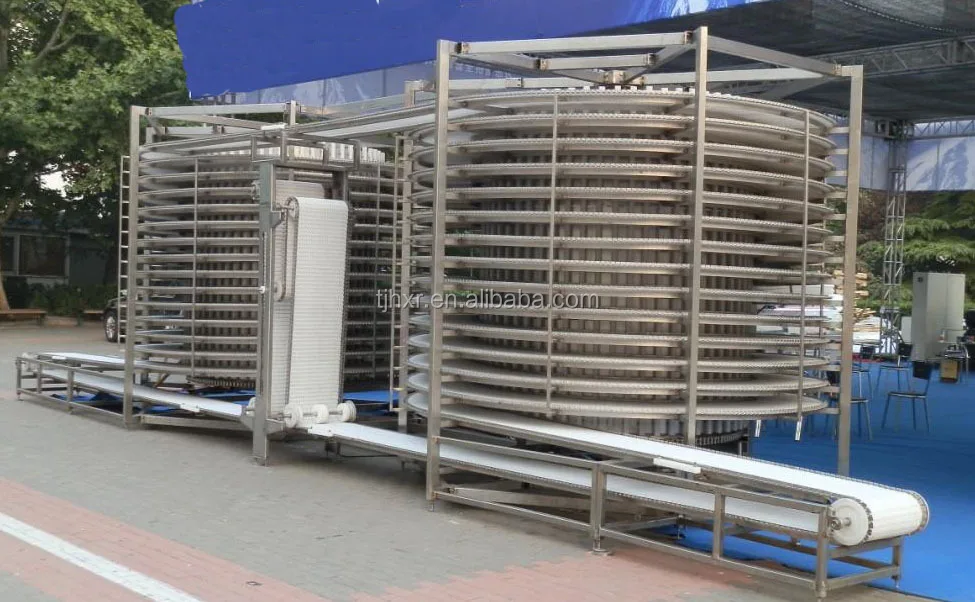

It is consisted of multilayer stainless steel conveyor belts with spiral circled in one or two drums. The products are placed on the conveyor belts, by frigid air of -35℃ frozen quickly, then transported to outer enclosure continuously.

Application

It is suitable for freezing small nub, strip, grain foods such as dumpling, spring roller, ice cream, seafood, meat,  fried food, fruit and vegetable and other small package food.

Product Features

1. Guaranteed the food sanitation

• Design according to the requirements of state food sanitation.

• The main parts are made of SUS304 stainless steel, resistant of corrosive, easy to wash, guaranteeing

  food hygiene requirements.

• The insulated enclosure is adopted PUR sandwich panels with optional stainless steel finish both inside

  and outside, good heat storage, no dew arise in the surface.

• There is washing box available at feed inlet, easy to wash belt, guaranteeing the equipment hygiene.

• The evaporator is made of aluminum tube and fin, with stainless steel housing, impeller, structure and

water tray. Water defrosting, easy to wash, decreasing bacteria growth.

• The main conveyor system is set outside of the enclosure, avoiding the food pollution brought

  by lubricating oil

2. Freezing efficiency high, saving energy

• Reasonable velocity and temperature field design, raising freezing efficiency greatly, saving energy.

• Small temperature difference design, improving evaporating temperature. Saving energy above 12%

  compared to general design.

• Motor laid outside, reducing cold burden and energy loss.

3. Proven and reliable design and manufacture, low maintenance

• Assessed and certified as meeting the requirements of ISO9001:2000

• Stainless steel sus304 material conveyor belts, made of high intensity stainless steel, the surface is smooth

  and flat. With guard edge and no guard edge type optional, solid and durable, resistant corrosion.

• All products are completely factory pre-assembled and tested, guaranteeing products quality.

4. Good products quality and high efficiency

• Even and continuous air flow, guaranteeing products fine appearance and quality.

• Unique air flow circulation system, freezing efficiency high, water decrease low.

• Fin space of evaporator is variable, strengthening heat exchange capacity, high heat transfer efficiency

5. Different type is optional

• There is multi-type infeed and outfeed configuration, for dual spiral system. low inlet and low outlet for

  Products is achievable.

6.Run steady, reliability good, use life long

• Key components in the control box are imports.

• Frequency adjustable speed unit is used to provide the wind speed range, high precision and reliability.

• General control, there are various safety guard equipment available, can inspect run condition always.

7.Custom design

• Besides standard products offered, we still design and manufacture customized products according to

  site condition and your special requirement
