JZBBF Series Air Cooled Compressor Racks With R22,R404a Refrigerant

Specifications

Air Cooled Condensing Unit
-Good Quality and Reliable Performance
-20HP-250HP Capacity
-JZBB Series

JZBB Series Top Quality Semi-hermetic Bitzer Compressor Racks Air Cooled Condensing Units for Fruits,Vegetable,etc

Air Cooled Condensing Units

Introduction&Features

-Utilized Semi-Hermetic Bitzer Refrigeration Compressors; Good Quality and Reliable Performance;
-The products feature by their structures of muti semi-hermetic Bitzer Compressors paralleled together to from one intergrated
  systems. The discharge pipes, suction pipes are one shared by all the compressors for each units. The paralleled system is
  simpler for intergrated control and cap adjustment;
-Structure is compacted to save installation space;
-According to the change of cooling load,the multilevel energy regulation can be realized and also can reduce the equipment
running cost.
-Reduce the influence on operation that caused by machine failure so as to increase the realibity of the unit operation.
-R404a, R22 units can be provided

Model Details:
Air Cooled Compressor Racks; Refrigerant-R22
a. 2 Compressors Racks
Temperature:-5°C~ 5°C Models:JZBBF2-20MB---JZBBF2-100MB(20HP-100HP)
Temperature:-20°C~ -15°C Models:JZBBF2-20LB---JZBBF2-100LB(20HP-100HP)
b. 3 Compressors Racks
Temperature:-5°C~ 5°C Models:JZBBF3-30MB---JZBBF3-150MB(30HP-150HP)
Temperature:-20°C~ -15°C Models:JZBBF3-30LB---JZBBF3-120LB(30HP-120HP)
c. 4 Compressors Racks
Temperature:-5°C~ 5°C Models:JZBBF4-40MB---JZBBF4-200MB(40HP-200HP)
Temperature:-20°C~ -15°C Models:JZBBF4-40LB---JZBBF4-160LB(40HP-160HP)
d. 5 Compressors Racks
Temperature:-5°C~ 5°C Models:JZBBF5-50MB---JZBBF4-250MB(50HP-250HP)
Temperature:-20°C~ -15°C Models:JZBBF5-50LB---JZBBF4-200LB(50HP-200HP)

Air Cooled 2-Stage Compressor Racks R22 Units (Quick Freezing Low Temperature Type)

Temperature:-40℃~ -25℃ Models:JZBSBF2-40JB---JZBSBF5-150JB(40HP-150HP)

Air Cooled Compressor Racks; Refrigerant-R22

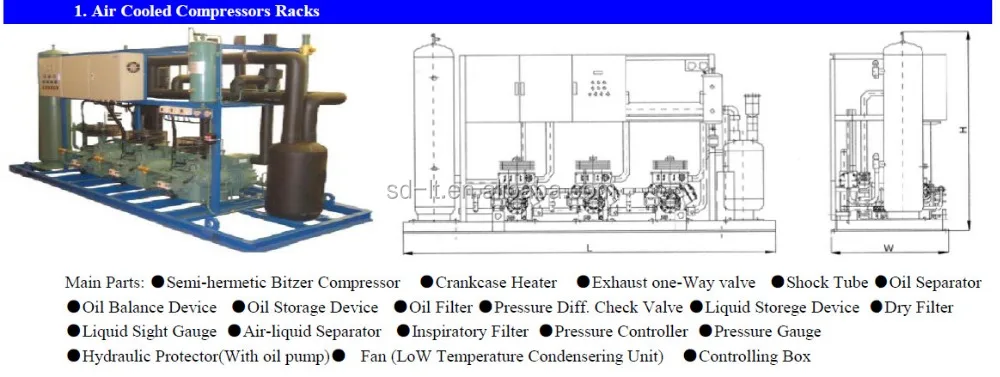

Main Parts: Semi-hermetic Bitzer Compressor/Crankcase Heater/Exhaust one-Way valve/Shock Tube/Oil Separator/Oil Balance Device/Oil Storage Device/Oil Filter/Pressure Diff. Check Valve/Liquid Storege Device/Dry Filter/Liquid Sight Gauge  /Air-liquid Separator/Inspiratory Filter/Pressure Controller/Pressure Gauge/Hydraulic Protector(With oil pump)/Fan (LoW Temperature Condensering Unit)/Controlling Box

Air Cooled Compressor Racks R22 Units

Temperature:-5℃~ 5℃ (Middle and High Temperature Units)

a. 2 Compressors Racks Models:JZBBF2-20MB---JZBBF2-100MB(20HP-100HP)

Design Working Condition:Evaporation Temperature -7℃;Environmental Temperature 35℃; Suction Overheat 10℃.

JS-01(2-01;2-02)

Air Cooled Compressor Racks R22 Units

Temperature:-5℃~ 5℃ (Middle and High Temperature Units)

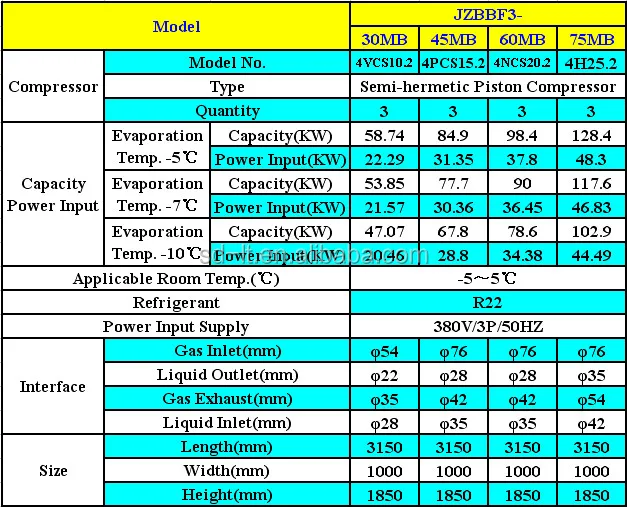

b. 3 Compressors Racks Models:JZBBF3-30MB---JZBBF3-150MB(30HP-150HP)

Design Working Condition:Evaporation Temperature -7℃;Environmental Temperature 35℃; Suction Overheat 10℃.

JS-01(3-01;3-02)

Air Cooled Compressor Racks R22 Units

Temperature:-5℃~ 5℃ (Middle and High Temperature Units)

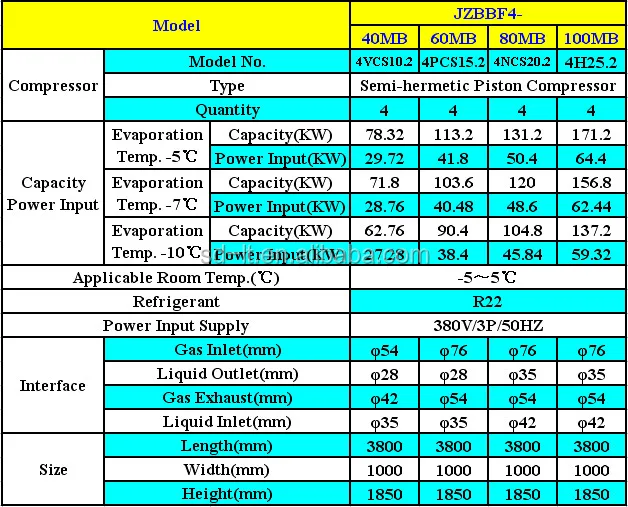

c. 4 Compressors Racks Models:JZBBF4-40MB---JZBBF4-200MB(40HP-200HP)

Design Working Condition:Evaporation Temperature -7℃;Environmental Temperature 35℃; Suction Overheat 10℃.

JS-01(4-01;4-02)

Air Cooled Compressor Racks R22 Units

Temperature:-5℃~ 5℃ (Middle and High Temperature Units)

d. 5 Compressors Racks Models:JZBBF5-50MB---JZBBF5-250MB(50HP-250HP)

Design Working Condition:Evaporation Temperature -7℃;Environmental Temperature 35℃; Suction Overheat 10℃.

JS-01(5-01;5-02)

Air Cooled Compressor Racks R22 Units

Temperature:-20℃~ -15℃ (Middle and Low Temperature Units)

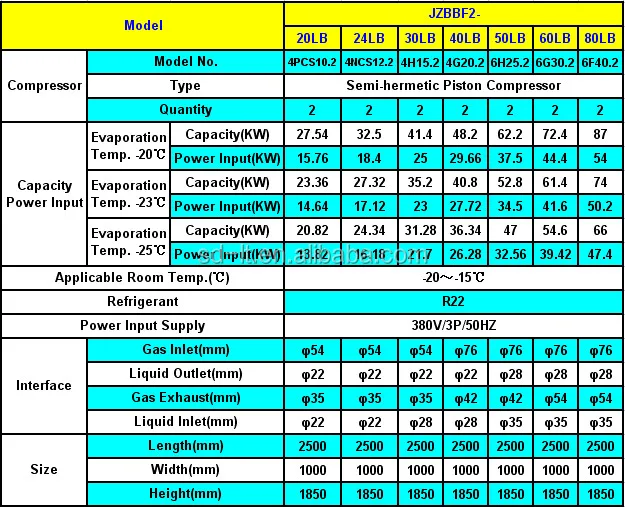

a. 2 Compressors Racks Models:JZBBF2-20LB---JZBBF2-100LB(20HP-80HP)

Design Working Condition:Evaporation Temperature -23℃;Environmental Temperature 35℃; Suction Overheat 10℃.

CIC is to be used for the evaporation temperature under -25℃ operation.

JS-02(2-01, 2-02)

Air Cooled Compressor Racks R22 Units

Temperature:-20℃~ -15℃ (Middle and Low Temperature Units)

b. 3 Compressors Racks Models:JZBBF3-30LB---JZBBF3-120LB(30HP-120HP)

Design Working Condition:Evaporation Temperature -23℃;Environmental Temperature 35℃; Suction Overheat 10℃.

CIC is to be used for the evaporation temperature under -25℃ operation.

JS-02(3-01, 3-02)
