-Condensing Units for Cold Storage Rooms, -5°C to 5°C for vegetables, fruits etc. storage

-Condensing Units for Freezer Storage Rooms, -20°C to -15°C for food as meat, aquatic products etc. storage

JZW Series Box Type Air Cooled Condensing Unit Features:

This series products feature box type structure with scroll compressor, that is compact ans pleasant looking, applicable to cold display cases, cold storage rooms, ice producers etc. The applicable temperature ranges are:-5°C~ 5°C and -20°C~ -15°C Cold and Freezer Rooms. They be used in hotels, restaurants, medicines, agricutureral, chemicals industries all other place where cold storage is needed.

Main Components of Air Side Blowing Condensing Unit:

-Brand refrigerant compressors as Copeland, Tecumseh, Bitzer etc. with high reliability are selected;

-Fan with 6 pole external rotor motors;

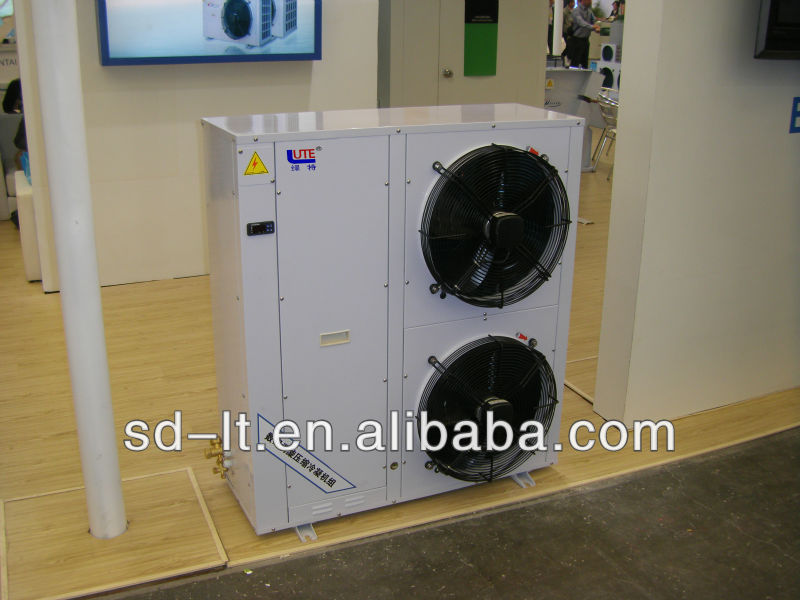

-For the unit with 2 fans, the condenser fans are automatically controlled;

-World famous brand refrigeration parts are employed for all products;

-Unit established by electrical control accessories, with the protection of lack of phase, overload, frequent start and high voltage.

Model Specifications:

JZW 03 L A G Y

JZW-LVTE Company Products Code

03-Compressor Power Input(HP)

L-Temperature: M:-5°C~ 5°C L:-20°C~ -15°C

A-Air Side Outlet

G-Compressor Brand, T—Tecumseh G—Copeland B—Bitzer

Y-Refrigerant: Y—R404a; Empty—R22

JZW Series Model Details:

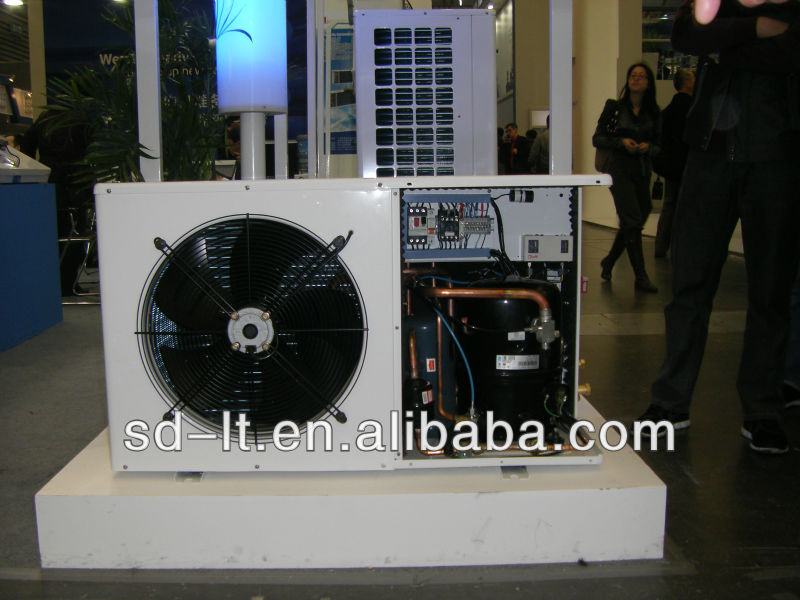

Tecumseh hermetic Piston Compressor Condensing Unit Series:

1.Temperature:-5°C~ 5°C Models: JZW0.6MATY---JZW03MATY(0.6HP-3HP)

2.Temperature:-20°C~ -15°C Models: JZW01LATY---JZW03LATY(1HP-3HP)

Copeland ZB(Scroll) Compressor Condensing Unit Series

1.Temperature:-5°C~ 5°C Models: JZW02MAGY---JZW08MAGY(2HP-8HP)

2.Temperature:-20°C~ -15°C Models: JZW02LAGY---JZW10LAGY(2HP-10HP)

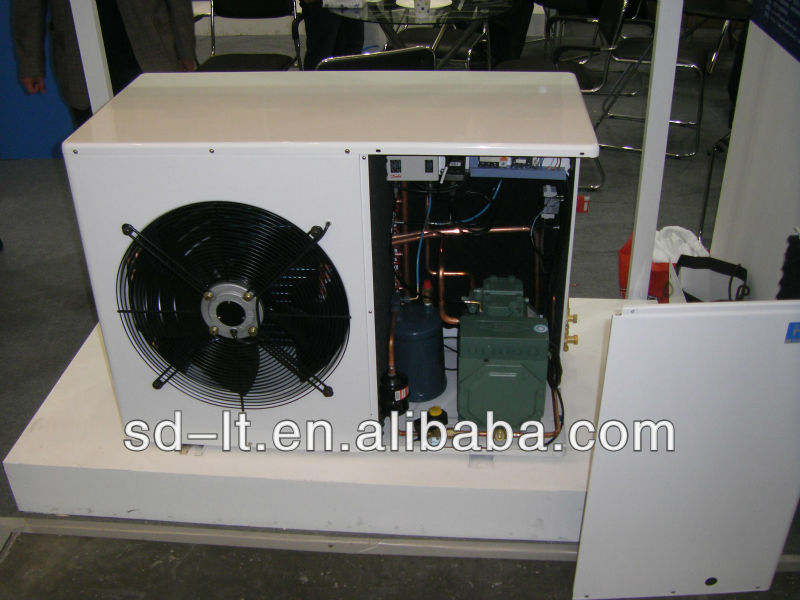

Bizter Semi-hermetic Piston Compressor Condensing Unit Series

1.Temperature:-5°C~ 5°C Models: JZW02MABY---JZW07MABY(2HP-7HP)

2.Temperature:-20°C~ -15°C Models: JZW02LABY---JZW12LABY(2HP-12HP)
