JZBF Series Bitzer Open Type Air(Water) Cooled Condensing Unit for Refrigeration Cold Room, Freezer Room

Condensing Unit for Refrigeration Cold Room, Freezer Room

Introduction&Features

1)Utilized Semi-Hermetic Bitzer Refrigeration Compressors; good quality&reliability;

2)Condenser utilized copper tube & aluminum fin type heat exchanger or high-efficiency shell and tube heat exchanger

3)High efficient heat exchange and last for long life;

4)Extemal rotor fan with low noise, high efficiency, good outlook;

5)Imported high-quality refrigeration parts to ensure full configuration and high reliability of operation;

6)The units are equipped with a waterproof terminal junction box. All control components are access to the junction box, convenient for users wiring;

7)Widely application for different temperature cold room, utilized with preservation, freezing, ice making, chilled water, and other refrigeration equipment.

Models Specifications

JZB F 03 M Y

JZB-Bitzer Compressor Unit

F-Cooling Way: F—Air-Cooled; S—Water-Cooled

03-Compressor power input(HP)

M-Applicable Temperature; M:-5°C~5°C;L:-20°C~-15°C

Y-Refrigerant:Y—R404A;None—R22

Model Details:

JZBF Series Air Cooled Condensing Unit (Bitzer Compressor)

1. Air Cooled R22 Condensing Unit

1.1 Middle and High Temperature:-5°C~5°C Models: JZBF02M---JZBF50M(2HP-50HP)

1.2 Middle and Low Temperature: -20°C~-15°C Models: JZBF01L---JZBF40L(1HP-40HP)

2. Air Cooled R404A Condensing Unit

2.1 Middle and High Temperature:-5°C~5°C Models: JZBF02MY---JZBF50MY(2HP-50HP)

2.2 Middle and Low Temperature: -20°C~-15°C Models: JZBF01LY---JZBF40LY(1HP-40HP)

JZBS Series Water Cooled Condensing Unit (Bitzer Compressor)

3. Water Cooled R22 Condensing Unit

3.1 Middle and High Temperature:-5°C~5°C Models: JZBS03M---JZBS50M(3HP-50HP)

3.2 Middle and Low Temperature: -20°C~-15°C Models: JZBS03L---JZBS40L(3HP-40HP)

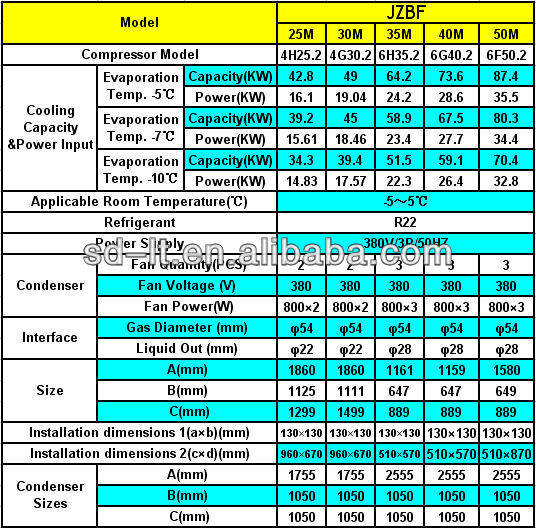

1.Air Cooled R22 Condensing Unit (Middle and High Temperature Type)

1.1 Temperature: -5~5°C;

Design Working Condition:Evaporation Temperature -7°C; EnvironmentalTemperature 35°C;Suction Superheat 10°C.

Models: JZBF02M---JZBF50M(2HP-50HP)

1.Air Cooled R22 Condensing Unit (Middle and Low Temperature Type)

1.2 Temperature: -20°C~-15°C;

Design Working Condition:Evaporation Temperature -23°C; EnvironmentalTemperature 35°C;Suction Superheat 10°C.

For the units over 08HP, CIC must be used when the units are working at evaporation temperature under -25°C.

Models: JZBF01L---JZBF40L(1HP-40HP)

Main Parts Instructions

Semi-Hermetic Air Cooled Condensing Units (Bitzer Compressor)

Temperature:-5°C~5°C:JZBF02M(Y)~JZBF20M(Y)       Temperature: -20°C~-15°C:JZBF01L(Y)~JZBF12L(Y)

Main Parts: #Semi-Hermetic Compressor #Crankcase heater #Air Cooled Condenser #Liquid storage device #Filter #Liquid Sight Gauge #Electromagnetic valve #High&Low Pressure Controller #High&Low Voltage Gauge #Wiring Box

Temperature:-5°C~5°C:JZBF25M(Y)~JZBF50M(Y)     Temperature: -20°C~-15°C:JZBF15L(Y)~JZBF25L(Y)

Main Parts: #Semi-Hermetic Compressor #Crankcase heater #Shock Tube   #Oil Separator #Air Cooled Condenser   #Liquid Storage Device #Fillter #Liquid Sight Gauge #Electromagnetic valve   #High&Low Pressure Controller

#Hydraulic Differential Controller #High&Low Voltage Gauge   #Wiring Box

Temperature: -20°C~-15°C:JZBF30L(Y)~JZBF40L(Y)

Main Parts: #Semi-Hermetic Compressor #Crankcase heater #Shock Tube   #Oil Separator #Air Cooled Condenser   #Liquid storage device   #Filter #Liquid Sight Gauge #Electromagnetic valve #High&Low Pressure Controller #Hydraulic Differential Controller #High&Low Voltage Gauge #Fan #Wiring Box
