Box Type Copeland Hermetic Compressor Air Cooled Condensing Unit for Cold, Freezer and Deep-freezing Storage Rooms

Box Type Copeland Hermetic Compressor Air Cooled Condensing Unit for Cold, Freezer and Deep-freezing Storage Rooms

Introduction:
Feature box type structure with hermetic compressor; Applicable temperature ranges are: -5°C~ 10°C and -10°C~-18°C; They used in hotels, restaurants, medicines, agriculture, chemicals industries all other place where cold storage is needed.
Features:
1. Box type structure with hermetic compressor, that is compact and pleasant looking, applicable to cold display cases, cold storage rooms, ice producers etc.

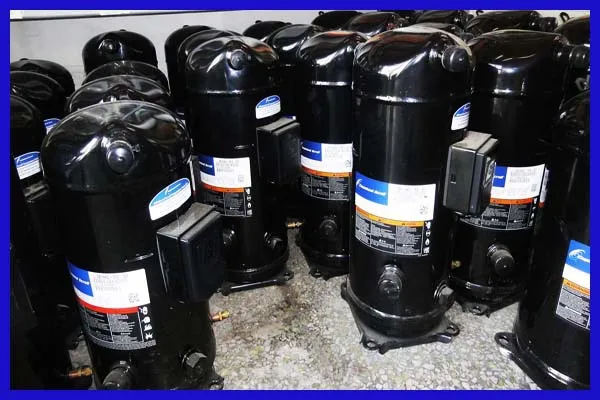

2. Adopted Copeland Fuuly Hermetic scroll compressor; low vibration&noise, good reliability;
3. Copper tube & aluminum fin type heat exchanger,high efficiency and long life;
4. Built-in junction box;Shut-off valves for inlet and outlet pipes, easy for maitenance.
Model Specifications:
JZQ 03 M A G Y
JZQ---LVTE Company Products Code

03---Compressor Power Input(HP)

M---Temperature: H: 5°C~8°C M:-5°C~ 5°C L: -20°C~ -15°C

A---A:Air Side Outlet B: Air Top Outlet
G---Compressor: G—Copeland
Y---Refrigerant: Y—R404a; Others—R22
Air Side Outlet Units Series(ZB Compressor)
1. Refrigerant: R22
1.1 Temperature:5°C~ 10°C Models: JZQ02HAG---JZQ05HAG(2HP-5HP)
1.2 Temperature:-5°C~ 5°C Models: JZQ02MAG---JZQ06MAG(2HP-6HP)
2. Refrigerant: R404A
2.1 Temperature:5°C~ 10°C Models: JZQ02HAGY---JZQ05HAGY(2HP-5HP)
2.2 Temperature:-5°C~ 5°C Models: JZQ02MAGY---JZQ06MAGY(2HP-6HP)
Air Top Oultlet Units Series(ZB Compressor)
1. Refrigerant: R22
1.1 Temperature:-5°C~ 5°C Models: JZQ02MBG---JZQ15MBG(2HP-15HP)
1.2 Temperature:-40°C~ -25°C Models: JZQ02JBG---JZQ05JBG(2HP-5HP)
2. Refrigerant: R404A
2.1 Temperature:-5°C~ 5°C Models: JZQ02MBGY---JZQ15MBGY(2HP-15HP)
2.2 Temperature:-18°C~ -15°C Models: JZQ03LBGY---JZQ15LBGY(3HP-15HP)
2.3 Temperature:-40°C~ -25°C Models: JZQ02JBGY---JZQ05JBGY(2HP-5HP)

Overall Size

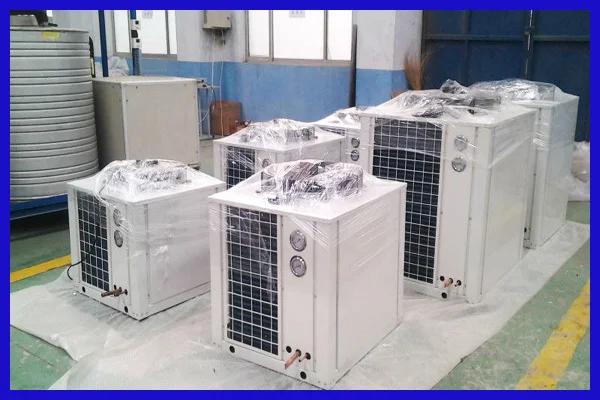

Product Pictures

 COMPANY AND FACTORY

1. National High-tech Enterprise, Abundant FinancialResources

    Registered capital USD5,000,000, and as a new energy industry, we got financial support from government of

    Shandong province. And we specializing in producing HVAC products (Heating, Ventilation and Air Conditioning) ,

    including central air conditioning system, Air Handling Unit, Water Source HEAT PUMP, Ground Source HEAT PUMP,

    and Refrigerant Equipments, including Air Cooled CHILLER, Water Cooled CHILLER,etc.

2. Two Production Bases, Guarantee Supply Ability.

     Covering an area of 110,000 CBM workshop, annual production of heat pumps are 30,000 UNITS, chillers are

     20,000 UNITS, andrefrigerant equipmentsare 50,000sets, fan coil 500,000 PCS.

3. Strong R&D Research Team

     Built an Academician workstation, consisted of domestic famous professors and doctors, and high tech workman,

     which can design projects according to customer’s requirement., And built long term cooperation relationship with

     famous universities, such as Shandong university, Xi’an Jiaotong university, Qingdao ocean university.

4. Famous Brand Enjoyed High Reputation overseas

     We are one of ten leading brands, product exported to Russia, Kazakhstan,

     Ukraine, United States, Britain, Germany, Italy, and so on. And every year many overseas client come for a visit.

5. Perfect Quality Control System

    Invested USD1,700,000 to build the enthalpydifference laboratory, imported advanced inspection equipments from

    America, covering 100% testing item of AHRI, and with a perfect quality control system, from raw material purchase to

    production and quality inspection, to ensure the high quality product can reach the international standards.

6. Qualified Export Certificate: CE certificate, and CRAA, ISO9001.
