Horizontal Hand Brush Water Filter With Manual Drive 100t/hour flow

FOB Price:

Open price

Min.Order Quantity:

1 Set/Sets

Supply Ability:

1000 Set/Sets per Month

Port:

shanghai

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal

Brand:

Peide Hand brush water filter

Products Model:

SLQ-S Hand brush water filter

Products Details
Company Profile

Quick Details

Brand Name: Peide Hand brush water filter

Model Number: SLQ-S Hand brush water filter

Place of Origin: Jiangsu, China (Mainland)

Packaging & Delivery

Packaging Details: wooden case Hand brush water filter
Delivery Detail: 25-30 working days send Hand brush water filter for you

Specifications

Horizontal Hand Brush Water Filter With Manual Drive 100t/hour flow

Manual cleaning filters

Principle

Manual brush filter is made of bristle brush (nylon brush, stainless steel brush) and stainless steel element. Brush is installed at the inside screen,where a hand shank is extended to outside. Slightly swing the hand shank, impurities will remove from drain let.

There's no need to stop power supply, dismantle filter in the whole wash process.

"Y" Type Parameter

Single Flow Rate	20-100T/H(88-4400GPM)
The Least Operating Pressure	≤ 0.15bar
The Biggest Operating Presure	≤ 10bar
The Pressure Loss in Cleaning Process	≤ 0.15bar
The Highest Temperature of Working	≤ 150 ℃ =302F
Filter Precision	≤ 150micron
Cleaning Method	Brush
Cleaning Time	30-60 seconds
Connect Method	Flange
Drain Diameter	25-100 mm

Equipment Enclosure Parameter

Chamber Material	Carbon steel ,304ss or 316L
Strainer material	304ss or 316L
Strainer type	Stainless steel complex strainer
Valve	Manual butterfly valve
Brush material	Bristle brush,Nylon brush, Stainless steel brush
Seal ring	O-ring or washer
Installation	Horizontal
Maintain	Simple

Technical Parameter

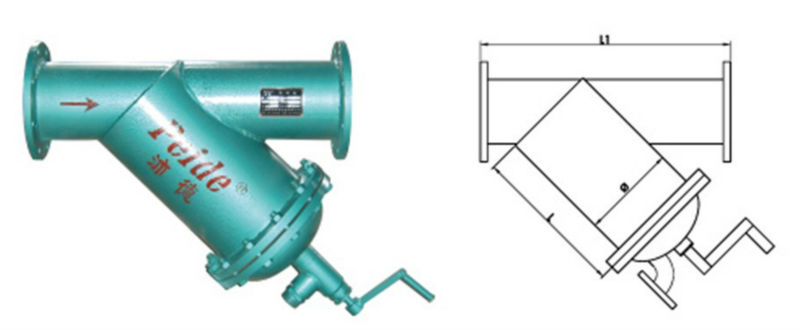

Model	Flow rate	Diameter		Φ	L	L1
Model	T/H	inch	mm	mm	mm	mm
SLQ-2S	20	2	50	159	300	600
SLQ-3S	50	3	80	159	300	600
SLQ-4S	80	4	100	159	300	700
SLQ-5S	125	5	125	219	350	750
SLQ-6S	180	6	150	275	350	800
SLQ-8S	320	8	200	325	525	850
SLQ-10S	490	10	250	377	650	900
SLQ-12S	710	12	300	426	700	950
SLQ-14S	970	14	350	478	820	1170
