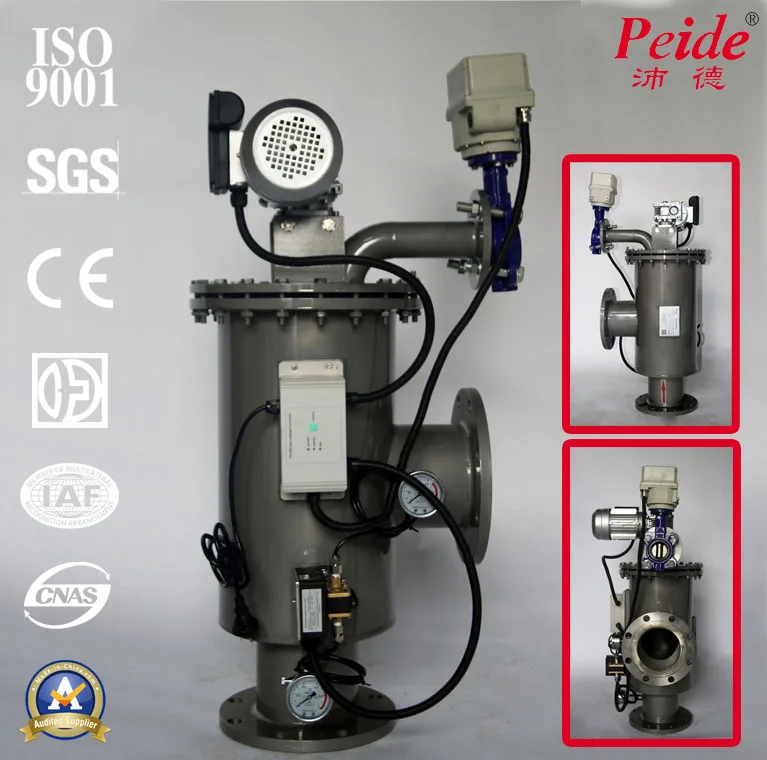

Automatic self cleaning carbon steel brush filter

Automatic self cleaning carbon steel brush filter

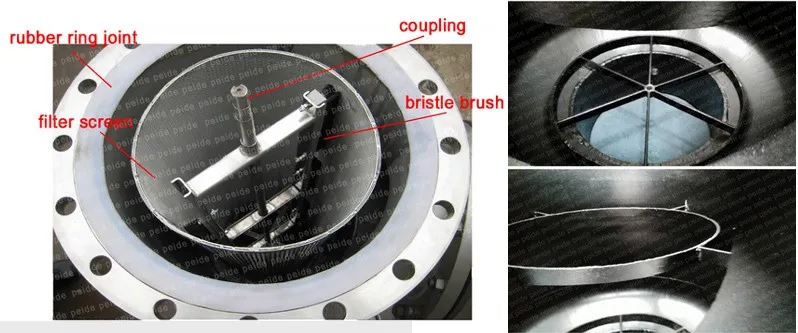

Automatic brushaway filter is composed of the drive mechanism, the control circuit (including the pressure switch), filter components, cleaning device, connecting flanges and other major component parts.It cleans sewage by the drive motor and the electric valve automatically, the operation mode is automatic operation (option:manual operation), with timing control or pressure difference control. Its automated part is controlled by reliablePLC programmable controller.

Water enters into the filter, the mechanical impurities are intercepted.When the impurities accumulate for a period, reaches 0.05MPa, then the differential pressure switch will send signal, while the PLC command is issued, transmission motor starts, the drain valve opens, the impurities deposited on the filter is brushed away,and drain out.The whole process is without personnel, without downtime. Besides, the device also has the function of timing and manual cleaning to ensure that the outlet water is safe under any circumstances.

Self cleaning brush filter Two types of cleaning method

Automatic control: there are two types:timing control and pressure difference. Set the filtration time on the filter timer, when it reaches the setting time, the brush will start cleaning sewage,discharge time is also set by timer; while the system pressure control system with real-time user-defined pressure compared when the system pressure reaches the set pressure difference, the filter will start cleaning sewage, sewage discharge time set by the timer.The whole system returns to its initial state, prepare for the next filtration step.

Manual control: Press the manual button on the control panel, filters will start cleaning.

1.Filter precision from 100um to 3500um,big filter area,high sewage carrying capacity,customized product.

2.Simple turn-of-a-handle cleaning of the filter screen,adjust the parameter of the automatic cleaning system.Automatic cleaning.

3.Has motor overload protection, which can effectively protect the motor.

4.Eliminates the need for turning off the water and extracting the filter screen for rinsing.No interruption of the process water flow during cleaning,Low pressure loss:less than 1%.

5.Easy to maintenance,installation and disassemble.

6.Flange connections to the user’s pipeline, national standard flange, versatility.

1. Treatment effectiveness

Filter precision:100-3000um(or customized)

Filtration efficiency: 99%;

Initial pressure loss: ≤0.015Mpa.

2. Inlet Water Quality

Working pressure: 1.0 / 1.6 / 2.5Mpa;

System pressure: >0.25Mpa;

Working temperature: 1 ℃ -90 ℃;

Working environment temperature: 1 ℃ -50 ℃;

Relative Humidity: <95%.

3. Operating parameters

Mean time between failures:> 60,000 hours;

Design life: 20 years for shell; 8 years for electrical parts.

Power: 0.2-0.6kw

Operating voltage: 220V ~ 380V ± 10%, 3-phase, 50 / 60Hz;

Safety insulation voltage: 5000V.

4. Mesh to micron conversion chart

Self cleaning brush filter -“F” type parameters

Self cleaning brush filter -“L” type parameters

The video of working principle : https://www.youtube.com/watch?v=ZgNtreTv8jc

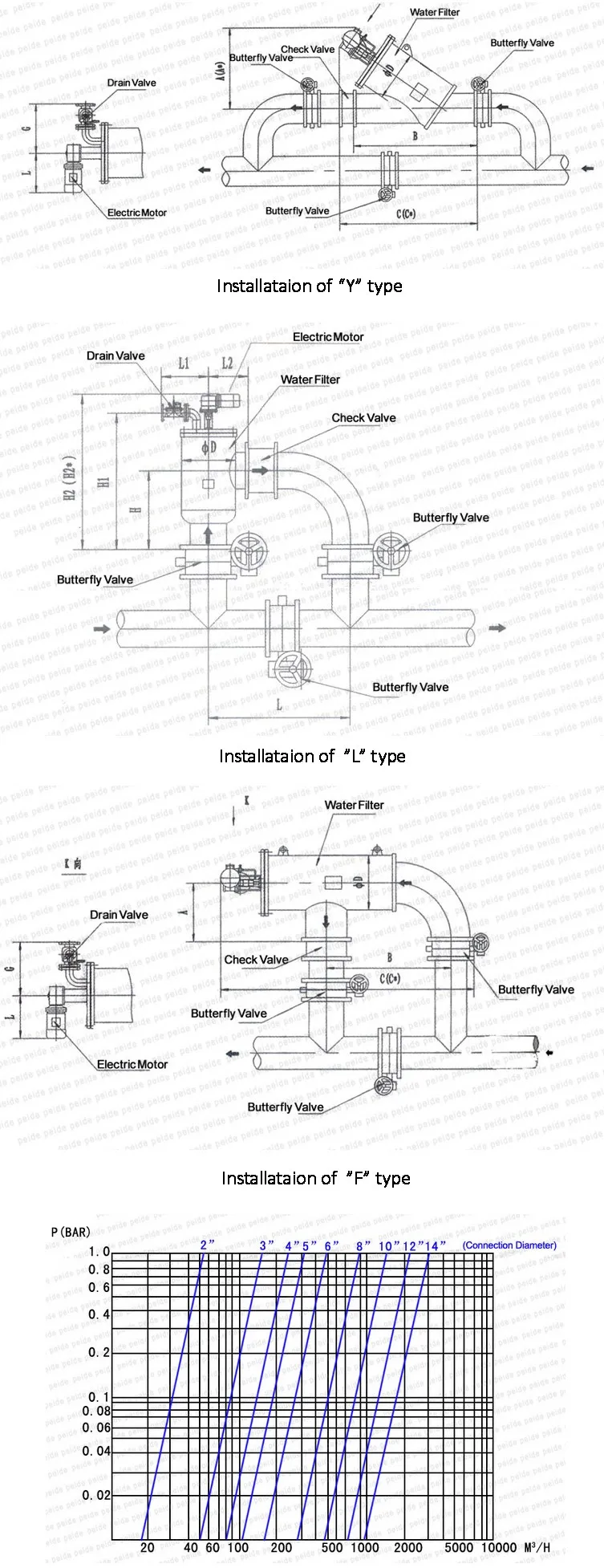

Brush type cleaning filter Installation Points for attention

1.The check valve must be installed to avoid back pressure or backwater phenomenon, caused by inward deformation of filter screen.

2.For the operating pressure above 0.8MPa or more, the gate valve must be installed on the sewage lines, it will reduce the pressure loss, and the impact after the drainage.(you may ask for specific advisory from suppliers)
