Peide Automatic Self Cleaning Water Filter PD-ZQX series

FOB Price:

Open price

Min.Order Quantity:

1 Set/Sets

Supply Ability:

2000 Set/Sets per Year

Port:

shanghai

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

peide

Products Model:

PD-ZQX

Products Details
Company Profile

Quick Details

Brand Name: peide

Model Number: PD-ZQX

Place of Origin: Jiangsu, China (Mainland)

Packaging & Delivery

Packaging Details: wooden packaging
Delivery Detail: 7 workdays after we receive the deposit

Specifications

These series automatic self-cleaning filters designed for continuous maintenance-free filtration for all major manufacturing and

Working principle:
These series automatic self-cleaning filters designed for continuous maintenance-free filtration for all major manufacturing and processing industries. It removes solid contamination from low viscosity fluids such as water and machine tool coolants. Its rugged construction and self-cleaning feature provide companies with increased machinery reliability resulting in reduced operating,labor and maintenance costs.

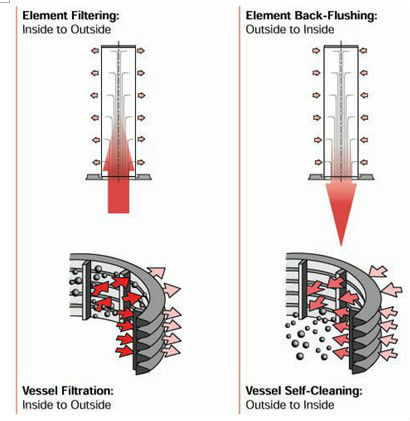

The automatic self-cleaning process begins, as soon as, the filter elements become contaminated. Due to the unique single element cleaning process, the total filtered flow is not reduced during the cleaning process.
This series filter can supply numerous combinations of housing materials, as well as, system operating equipment to reach the optimum installation for every industry application.

Technical data:
Flow rates: 20-31,000gpm
ANSI Flange Sizes: 2”—36”
Filtration Micron Ratings: 25-3000 µm
Maximum Operating Pressure: 90 ---150 psi (6bar-10bar)
Power Source: Electric, Pneumatic, or Electro-pneumatic
Power requirements: 380 3-phase VAC
80 psi air pressure
Filter Housing Material: Carbon Steel, Stainless Steel 316L
Internal Parts: Stainless Steel 304
Self-Cleaning Valve: Stainless Steel akin 316
Filter Elements: Stainless Steel 316L
Corrosion Protection for Carbon Steel Vessel: Polyurethane, Rubber coating
(Special coatings and steels are Available for severe Fluid Applications)

Applications:
Water Plants, Process Water, Power Plants, Cooling Towers, Steel Industry, Paper Industry, Machine Tools, Steam Supply, Food Industry, Chemical Plants
