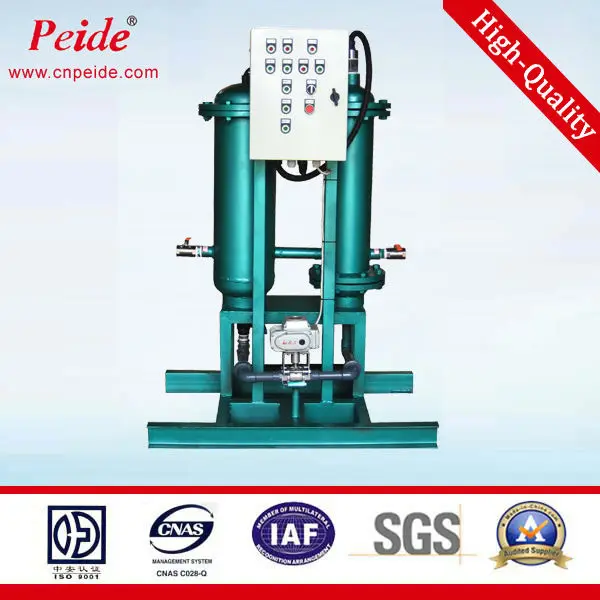

Opening water cooler with filter system

Descaling and kill bacteria & algae for cooling water treatment equipment

Principle
 1. Efficient pulse and low-voltage electric field can capture dirt ions, cleaning visible.
 2. Electric field produce the crystallite which has function of prevent with 48hours.
 3. Electrode with the function of activity and catalytic can produce reactive oxygen and other strong bactericidal factor which can kill bacterial and algae.
 4. Active substances form Fe₃O₄ dense protective film to prevent corrosion on the inner wall of water pipe
 5. The suspended will be divided efficiently and removed from the water treatment equipment. The water will become clean.

Cleaning visible
 After water treated, the polymerization of water molecules reduce, the structure will change, which will produce a series little change of physical and chemical, such as, water dipole moment increases and the polarity increases which increase the capacity of water hydration and dissolve dirt.
 The special field can change the process of CaCO₃ produced, inhibit calcite produced as well as the energy of aragonite produced.
 The water treatment equipment can produce many kinds of anti-scaling crystallite which can remove the ion forming-scale first and produce loose aragonite which will be removed to the sewage tank from water treatment equipment through sewage valve, scale visible.

Kill bacterial and algae
 Dissolved oxygen are activated to produce O₂^-,·OH,H₂O₂ and ¹O₂  reactive oxygen ( O₂^-,is the superoxide anion radical,·OH,is the hydroxyl radical ,H₂O₂  is hydrogen peroxide, ¹O₂ is the single oxygen). Reactive oxygen free radicals can kill bacterial reacting on microorganisms.

(1) O₂^- can damage biological molecules, causing microbe’s body injury.

(2) O₂^- increase lipid peroxidation microbial organisms and accelerate aging.

The kinds of bacterial and algae killed
 Legionella pneumophila, Chlamydia, Mycoplasma, E.coli, Staphylococcus aureus, Bacillus subtilis, subtilis, Shigella, Neisseria meningitides, Mycobacterium tuberculosis, hepatitis virus, respiratory viruses.

Green algae

Chlorella, scenedesmus, euglena, volvox, cyanobacteria, spirulina, microcystis, diatoms, etc.

Prevent corrosion oxide films
Reactive oxygen form oxide film on pipe to prevent corrosion. The running reactive oxygen continue forming oxide film to inhibit corrosion.

Technology
 1. Voltage: 220V 50Hz
 2. Working voltage less than 36V
 3. Water temperature requirement: 0-50°C
 4. Water loss: 4-7m
 5. Inhibit and clean scale rate: more than 99%
 6. Kill bacterial rate: more than 99%
 7. Kill algae rate: more than 99%
 8. Total hardness: less than 700mg/L (based on CaCO₃)
 9. Iegionnella standard: reach to national standard
 10. Corrosion standard: reach to national standard

1 just next to the stream processing system of water flow of 1% -5%, and ease of installation;
2 No need for chemicals, no secondary pollution, green;
3 to rust dirt, removal of yellow water;
4 reduce turbidity;
5 Intelligent Automatic operation;
6 is directly visible.

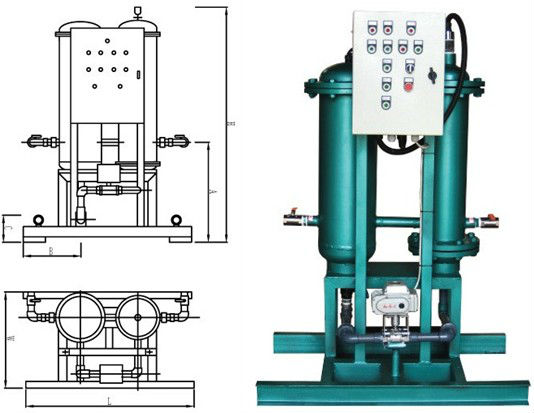

Specification size and technical parameters
