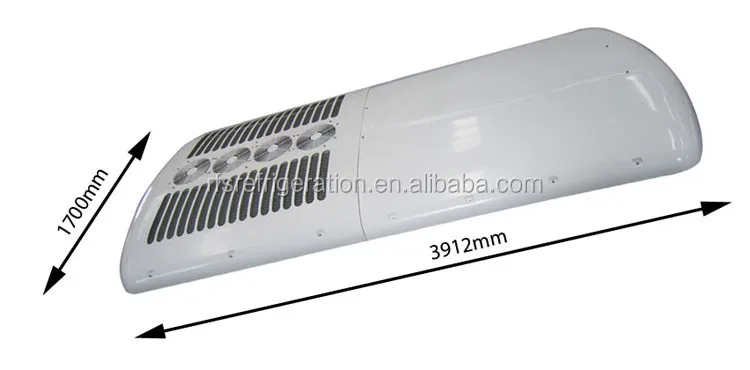

AC24 high air flow 22kw / 75000Btu roof top bus air conditioner for 9 meters to 11 meters long bus

  AC24 high air flow 22kw / 75000Btu roof top bus air conditioner for 9 meters to 11 meters long bus

AC24 unit is engine driven roof top bus air conditioner . Compressor is bolted near the engine. This unit to be connected to a compressor through 2 refrigeration hoses.

data sheet :
1. cooling capacity :24KW
2. voltage :12V/24V
3. Coil for evaporator and condenser : copper tube aluminum fin
4. maximum air flow :3400m³/h
5. condenser axial fans :4
6. evaporator radial blowers :4
7. compressor :BITZER 4NFCY ,655cc/r
8. refrigerant : R134a
9. size for condenser :1984mm*1700mm*190mm
10. size for evaporator : 1928mm*1700mm*190mm
11. packing : by pallet with carton
12. delivery time : within 18 days after receiving the payments
13. payment : T/T in advance
14. valid time : within 7 days since the released date
15. color : white or customized

The MOQ is ordering 1 unit .

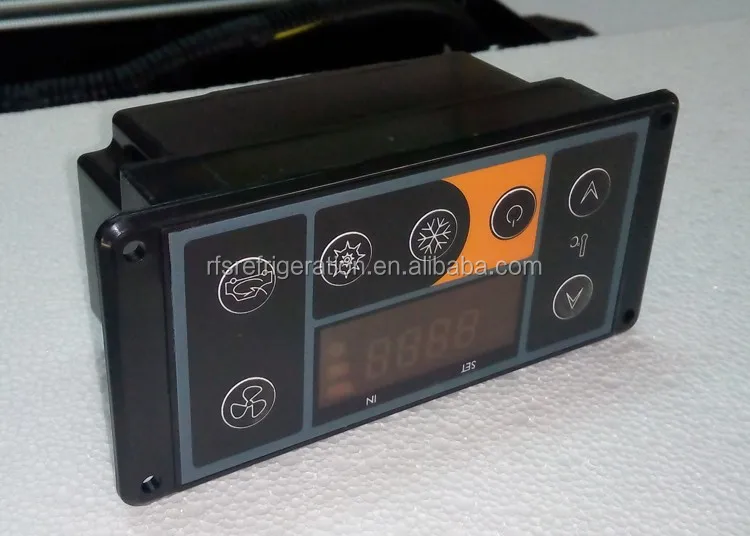

This unit supply include : controller in cab , wire harness ,tension pulley assembly (belt , bracket , tension pulley , compressor with clutch ), refrigeration hose , water drain hose , installation kitts and fittings , air return grid. exclude alternator (this price is USD 550) .

 warranty :  one year since  the date of receiving the goods

 free of  charge : supply installation guide

Xinxiang Rifusen industrial & trade co.,ltd  is  a  factory  which has rich experience and strong skills in   manufacturing  air conditioner  for  van , truck , bus and heavy mobile equipment  since 2005 .

Whethe your order is big or small  we could delivery them on time .
