Brand Name: Rifusen
Model Number: AC28
Place of Origin: Henan, China (Mainland)
Specifications of coach air conditioning unit
•European Fashionable styled streamline appearance & Rooftop mounted type.
•Special for large buses.
•Strong cooling capacity, large cooling air volume, low noise.
•ISO9001-2008 Certificates.
•Pro-active service, reasonable price, and long life products.
Bus air conditioner technical data
Main Technical Parameters |
||
Item |
Technical Parameters |
|
Cooling capacityW{Kcal/h} |
28000 {24080} |
|
|
Structure |
Copper tube and Aluminum fin |
Dimension |
1928*1700*190 |
|
Evaporator blower |
Structure |
Double axle and centrifugal flow |
Quantity |
6 sets |
|
Air flow volume |
5000m³/h |
|
Condenser |
Structure |
|
Dimension |
2062*1700*190 |
|
|
Structure |
Axial flow |
Quantity |
5sets |
|
Air flow volume |
7600m³/h |
|
Compressor |
Model |
Bitzer 4NFCY |
Gas Displacement |
655cc/r |
|
Weight |
32kg |
|
Pressure protection |
High pressure |
2.5MPa |
Low pressure |
0.05MPa |
|
Fresh air ventilation rate |
25%(customer selection) |
|
Refrigerant Model |
R134A |
|
Application |
10~11m bus |

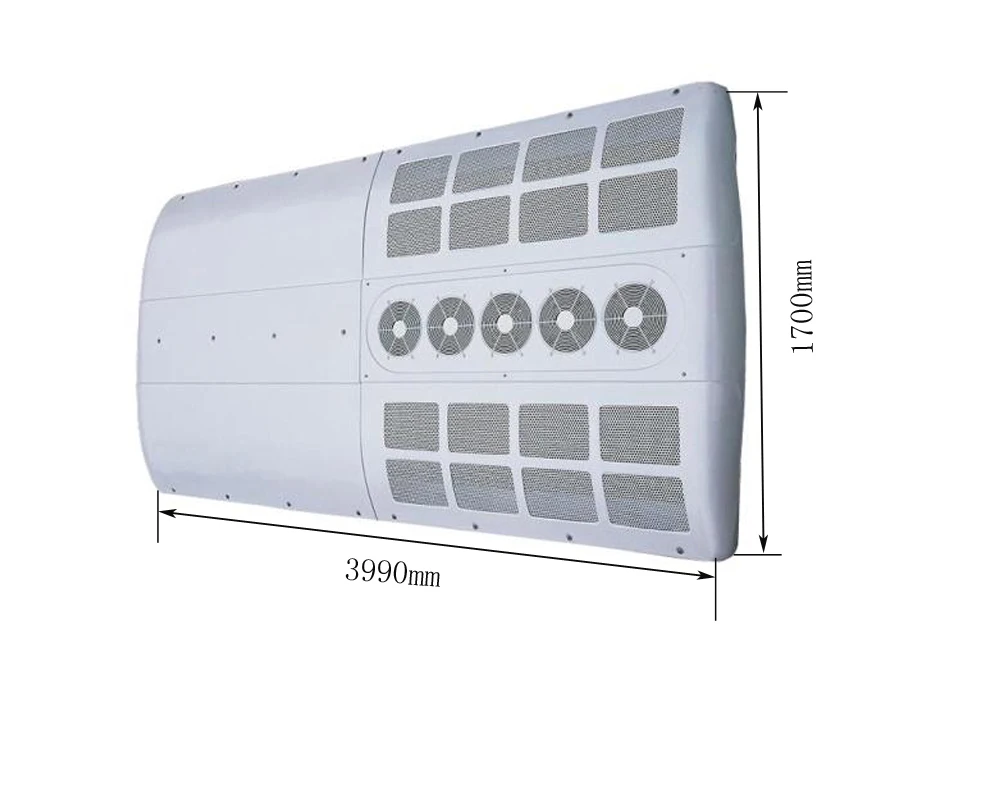

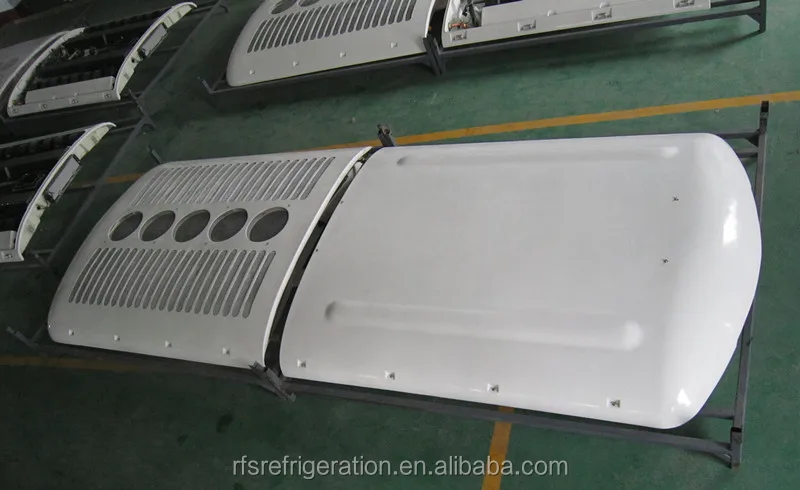

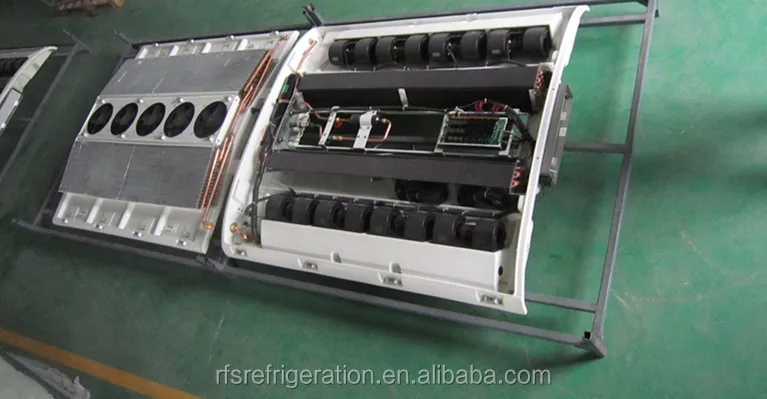

Detailed images of coach bus air conditioner
Packaging:Standard export packaging,carto and strong wooden pallet.
Shipping:The shipping port are Qingdao Port, Shanghai Port, Tianjin Port, Guangzhou Port, etc.
Shipment will be effected within 25 days after you confirm the order.
Pre-sale:Provide professional suggestions for model selection, technical solution, etc.
Recommend the best product according to your needs,such as the conainer volume, temperature range,etc.
Introduce our company infromation to you.
Factory and product line visiting is always welcomed.
sale:Monitor the qualtity of the product carefully.
Strict product acceptance.
Shipping on time and short delivery time.
After-sale:Installation guide for free.
Our products have 1 year warranty,spare parts recement service is provided.
Xinxiang Rifusen Industrial & Trade Co., Ltd.is specialized in manufacture the truck refrigeration units and vehicle air conditioning system. Since the company was founded, we are committed to R&D and manufacture large cooling capacity, quick cooling, reliable quality ,safety and environmental friendly truck refrigeration units and vehicle air conditioning system, and developed the DC powered A/C of commercial vehicle and RV according to the customers′ requirements. We have several series products include the freezer and cooling series of truck refrigeration units, preparation of power unit, air conditioning system for construction machinery, bus, truck and DC powered A/C. More than forty model of the above products will be meeting the different needs of customers.
Now, We are the OEM supplier of China′s top brand refrigeration vehicle manufactures, such as Liuzhou Wuling, Beiling, Tianyun, Foton, HenanXinfei, etc. At the same time, we have been exported our products to Middle East, Africa, Southeast Asia, South America market.
Our truck refrigeration units are suitable for 2-40 m³ truck container and can be installed on different vehicle chassis.
Our company also manufactures the segment type evaporator, condenser and coil of heat exchanger which can suitable for all kinds of vehicle A/C and truck refrigeration units.
Our company has passed ISO9001-2008 quality control system certifying.
Certifications:

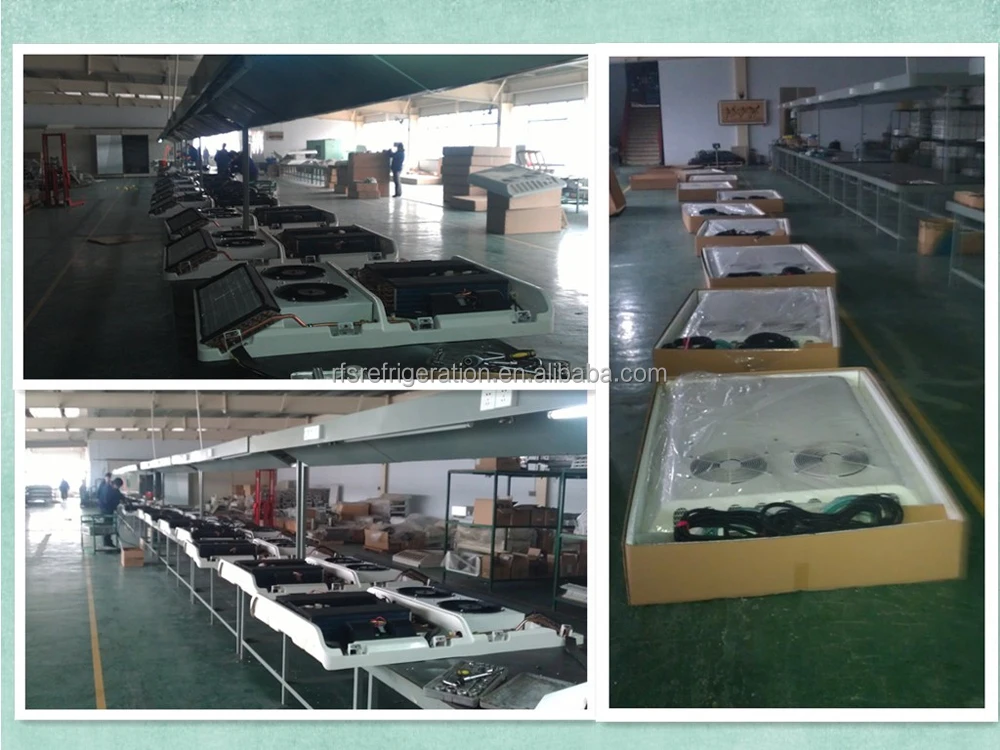

Product lines:

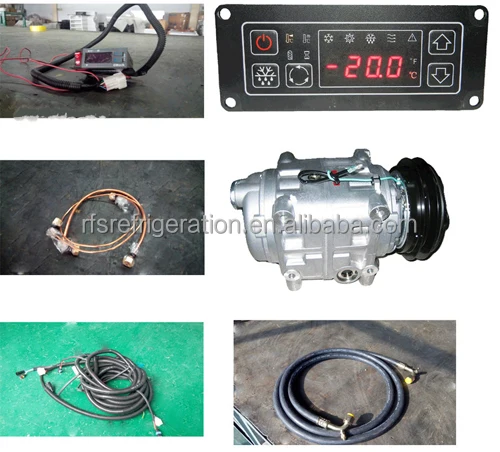

Part images
Product installation images
Trade show
Contact informations
If you have any questions,please do not hesitate to contact me! Looking forward to cooperating with you!
