Best DT30A battery driven roof top air conditioner for truck

Best DT30A battery driven roof top air conditioner for truck

FOB Price:
US 500-1,200 / Unit
Min.Order Quantity:
1 Unit/Units
Supply Ability:
1000 Unit/Units per Month
Port:
Qingdao, China
Place of Origin:
Henan, China (Mainland)
Payment Terms:
L/C,T/T,Western Union
Brand:
Recool
Products Model:
DT30A
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: Recool

    Model Number: DT30A

    Place of Origin: Henan, China (Mainland)

Packaging & Delivery

  • Packaging Details: carton packing for air conditioner for truck
  • Delivery Detail: Shipped in 5 working days for air conditioner for truck

Specifications

        Best DT30A battery driven roof top air conditioner for truck



Product Description

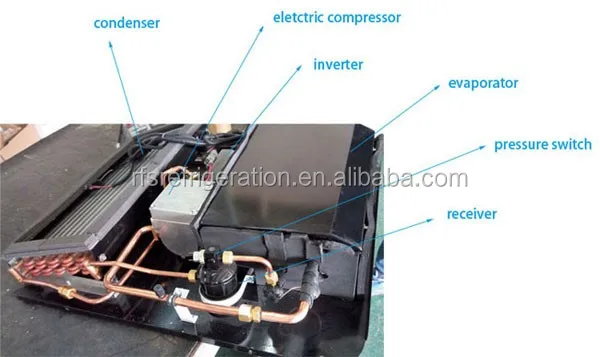

This DT30A  truck air conditioner is designed for coolingthe driver's cabin.  It is driven

by vehicle's battery . It does not require the installation of a compressor on the vehicle’s

engine.The electric scroll compressor is installed inside this unit , you just connect wire

harness to battery , the air conditioner would start to work .



1. compact design

2. high performance

3. low noise

4. low current draw consumption





Model DT30A
Cooling capacity 3KW(10000Btu/h-2600Kcal/h
Type    Roof mounted , one body unit
Refrigerant    R134a
Compressor  Model 12/24 volt dc powered
Displacement 36cc/r
 Evaporator  Coil Copper tube&Aluminum fins
 Blower type  Double Axle centrifugal flow
Blower output 650m³/h
Blower quantity 1
Condenser Coil Copper tube&Aluminum fins
Fan type  Axial flow
Fan output 1700m³/h
Fan quantity  2
voltage  DC 12V /24V
 weight  40kgs
   Overall dimension 900mm*795mm*200mm
  Current draw 12v/70A, 24V/35A
    Applying vehicle   truck , tractor , forklift , general macinery ,etc









The ceiling panel is fitted with:

 1 three-speed fan selector

1 mechanical thermostat control selector

1 air conditioning on/off switch 2 closable and multi-directional louvers

1 air intake and air filter access grille





Safety features

1. Should the vehicle battery go below a threshold of 10.5 V

(for a 12 V DT30A unit and 21 V for a 24 V unit), the unit will automatically shut down.

This feature prevents from emptying the battery and saves enough battery for starting

the engine of the vehicle.2. DT30A is equipped with a pressure switch which protects the

system in case of overpressure or low pressure.









FAQ

Q1. What is your terms of packing?

A: Generally, we pack our goods in neutral brown cartons or wooden box .

Q2. What is your terms of payment?

A: T/T. We'll show you the photos of the products and packages before delivery.

Q3. What is your terms of delivery?

A: EXW, FOB, CFR, CIF,

Q4. How about your delivery time?

A: Generally, it will take 3 to 10days after receiving your advance payment. The specific

delivery time depends on the items and the quantity of your order.

Q5. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery
