Brand Name: Rifusen
Model Number: DT30A
Place of Origin: Henan, China (Mainland)

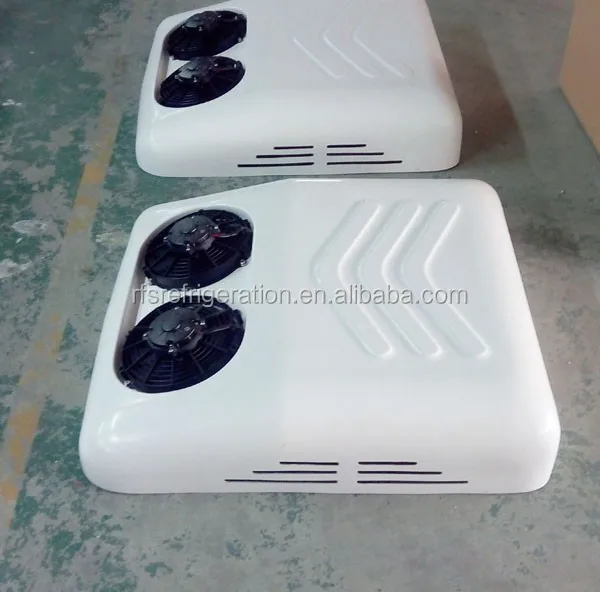

DT30A is designed for Motor Home, Caravan, Truck which work under 55 Deg. C ambient temperature.It can also work when the engine is off, bring comfortable cool air for the driver's rest.
1. Roof Top Design, Stream Line Appearance
2. Big Cooling Capacity.
3. Easy Installation & Operation
4. Environment Friendly
5. Low Current for Long Time Running, 9-10 Hours Work Recharged One Time;
6. Low Noise for Dirver's sleep
7. ISO 9001, CE & TS16949 Certification
8. 36 Months Warranty Time After Delivery
9. save fuel
Model | DT30A | |
Cooling capacity | 5.0KW (4300KCAL/H, 17000BTU) | |
Type | Roof mounted , one body unit | |
Refrigerant | R134a | |
Compressor | Model | 12/24 volt dc powered |
Displacement | 36cc/r | |
Evaporator | Coil | Copper tube&Aluminum fins |
Blower type | Double Axle centrifugal flow | |
Blower output | 650m³/h | |
Blower quantity | 1 | |
Condenser | Coil | Copper tube&Aluminum fins |
Fan type | Axial flow | |
Fan output | 1700m³/h | |
Fan quantity | 2 | |
voltage | DC 12V /24V | |
weight | 40kgs | |
Overall dimension | 900mm*795mm*200mm | |
Current draw | 12v/70A, 24V/35A |
The ceiling panel is fitted with:
1 three-speed fan selector
1 mechanical thermostat control selector
1 air conditioning on/off switch 2 closable and multi-directional louvers
1 air intake and air filter access grille
Safety features
1. Should the vehicle battery go below a threshold of 10.5 V (for a 12 V DT30A unit and 21 V for a 24 V unit), the unit will automatically shut down. This feature prevents from emptying the battery and saves enough battery for starting the engine of the vehicle. 2. DT30A is equipped with a pressure switch which protects the system in case of overpressure or low pressure.
1. We will reply you for your inquiry in 24 hours.
2. Sample order .
3. after sending, we will track the products for you once every two days, until you get the
products. When you got the goods, test them, and give me a feedback.If you have any
questions about the problem, contact with us, we will offer the solve way for you.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral brown cartons or wooden box .
Q2. What is your terms of payment?
A: T/T. We'll show you the photos of the products and packages before delivery.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF,
Q4. How about your delivery time?
A: Generally, it will take 3 to 10days after receiving your advance payment. The specific
delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
