Air Condition Or Refrigerator Application and Straight Copper Pipe Type Insulated copper tube

FOB Price:

US 15-35 / Carton

Min.Order Quantity:

1000 Carton/Cartons

Supply Ability:

1000000 Ton/Tons per Year

Port:

shanghai

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

T/T

Brand:

G&X

Products Model:

BWG

Products Details
Company Profile

Quick Details

Brand Name: G&X

Model Number: BWG

Place of Origin: Jiangsu, China (Mainland)

Packaging & Delivery

Packaging Details: carton + ply-wooden pallet
Delivery Detail: Shipped in 35 days after payment

Specifications

Air Condition Or Refrigerator Application and Straight Copper Pipe Type Insulated copper tube

Our Products specifications

Inside Cleaned Copper Tubes for refrigeration gas and capped at the both ends, with interior surface maximum permissible residue 0.038g/m²;

Phosphorus Deoxidized Soft Temper Copper Tube DHP(C12200, 99.9%Cu);

Dimension and Mechanical Properties acc. to ASTM B280, EN12735-1, AS1571, JIS H3300;

Insulation Properties

1) Polyethylene & PE type

Extruded and Closed cell white polyethylene with a white outside PE-protection layer;

Average Density: 33Kg/m³;

Heating Conduction at 0^{0≤0.033W/MK;}C

Working Temperature from -40⁰C until +120⁰C;

Vapor Resistance: μ>5000;

White external non toxic and resistance to external chemical agents and ultra-violate rays;

RoHS Certificate Approved;

2) Rubber Type

Extruded and Closed cell synthetic rubber with external protection;

Density:70-90 Kg/m³;

Thermal Conductivity: -20⁰C 0⁰C 40⁰C

(W/(M.K)) 0.031 0.034 0.038

Working Temperature from -50^{00C (Flat Surface +850C);}C until +110

Reaction to fire: self-extinguishing GB8624B1(OXYGEN INDEX >34%),

Non-flammable;

Vapor Resistance: μ>4500;

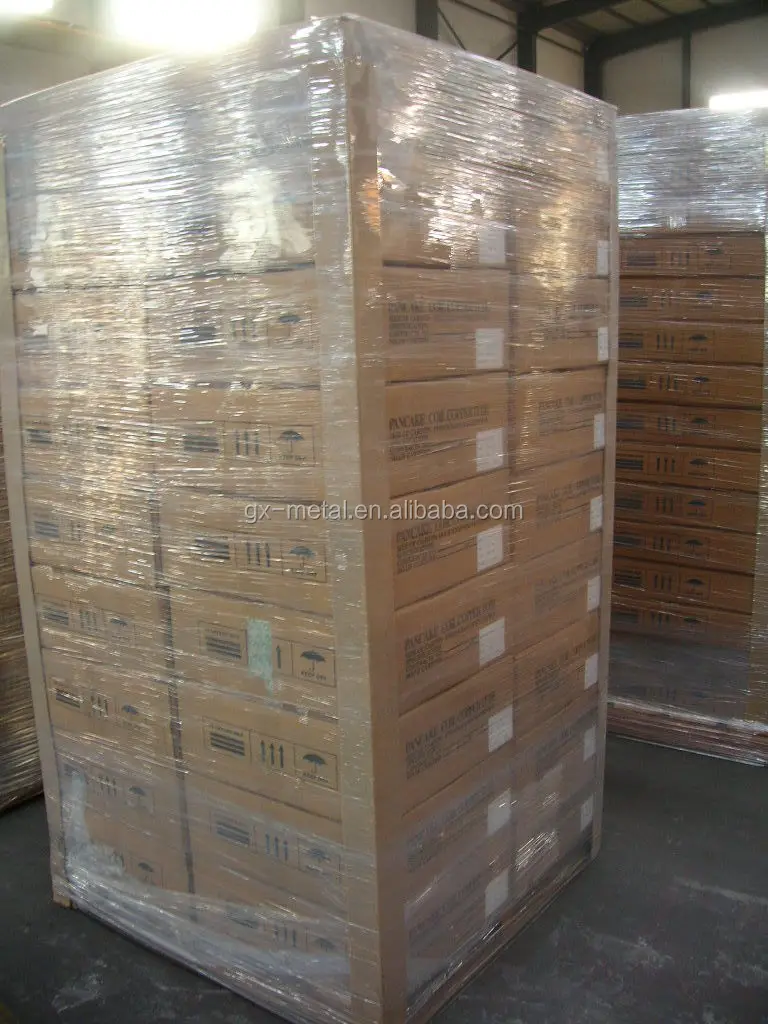

Our workshop & packing & delivery

Our certificates
