LVTE Brand Scroll Compressor Air Source Heat Pump for Household or Commercial (LTWF Series)

FOB Price:

Open price

Min.Order Quantity:

1 Set/Sets

Supply Ability:

2000 Set/Sets per Month

Port:

QINGDAO

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,D/P,T/T,Western Union

Brand:

LYTTE or OEM

Products Model:

LTWF(R) Series

Products Details
Company Profile

Quick Details

Brand Name: LYTTE or OEM

Model Number: LTWF(R) Series

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: wooden cases for safety transportation
Delivery Detail: 15 working days after order confirmed

Specifications

Scroll Compressor Air Source Heat Pump
-Copeland,Danfoss,Sanyo Scroll Compressor
-CE CRAA ISO
-Central Air Conditioner

LVTE Brand Scroll Compressor Air Source Heat Pump for Household or Commercial (LTWF Series)

Product Description

LTWF Series Air Source Heat Pump, Air to Water Heat Pump for Air Conditioning Heating and Cooling

-Air Source Heat Pump

-Air to Water Heat Pump

-Heat Pump Type, Air Conditioning Heating and Cooling and Domestic Hot Water

Products Introduction:

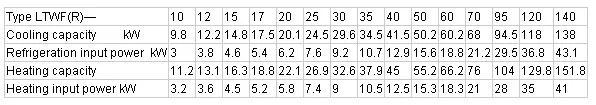

Models: LTWF(R)-10------LTWF(R)-140

Cooling Capacity: 9.8KW----138KW;Heating Capacity: 11.2KW---151.8KW

Air to Water Heat Pump Features:

1)Air Cooled Condenser:V-type or U-Type Heat Exchanger, built with seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins.

-Units with V type heat exchanger: panels, frame and base are made from galvanized steel protected with polyester powder painting to ensure total resistance to atmospheric agents.

-Units with U type heat exchanger: bearing structure in aluminum, panels in stainless steel, and base in painted section steel.

2)Compressor

-3-phase scroll type compressor, with built-in thermal overload cut-out and crankcase heater, mounted on rubber vibration dampers.

3)Condenser Fan:

-External rotor type axial fans, equipped with three phase direct drive motors, low noise 8 poles, protection level IP54, provided with a protective outlet grille.

4)Evaporator

-Built with high efficiency tube in tube type heat exchanger, factory insulated with flexible close cell material.

5)Refrigerant circuit

-Complete with charge valves, filter drier, sight glass, gas-liquid separator, thermostatic expansion valve, high & low pressure switch. The heat pump unit is completed also with 4-way valve, liquid receiver and one way valve.

6)Hydraulic circuit

-Built with galvanized pipe, complete with water discharge connection for tube in tube heat exchanger and flange type hydraulic connectors in two directions easy for connections from both sides of the units.

7)Electric panel

-Compressor contactor, fan motor contactor, compressor protection breaker, fan protection breaker, phase sequence relay and microprocessor with function display (display only for master/packaged unit).

Models:

1.LTWF--Scroll compressor air source heat pump/air to water heat pump

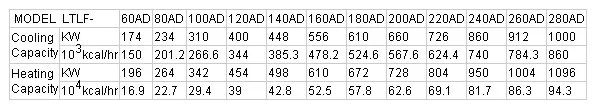

2. LTLF--Screw compressor air source heat pump/air to water heat pump

a. one compressor model

b.two compressor model

Main Parts

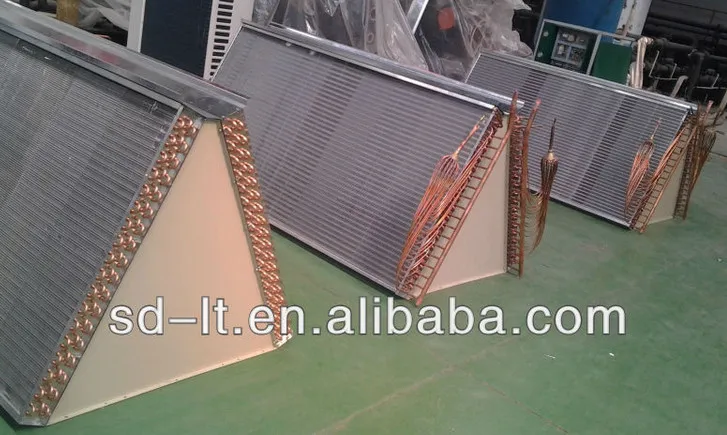

Fin Type Condenser:

Compressors:

Fan Motor:

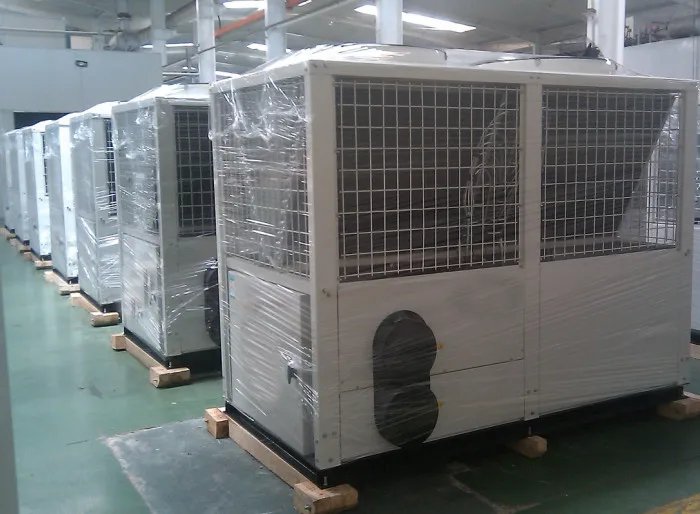

Finished Units in Stock:

Since 2002, LVTE starts to offer HVAC products including Ground Source HEAT PUMP(Geothermal HEAT PUMP, Water to Water HEAT PUMP),Air Source HEAT PUMP,Air Cooled CHILLER, Water Cooled CHILLER,FAN COIL,AHU,Packaged Air Conditioner etc and Refrigerant Equipments for Cold, Freezer, Blast/Quick freezing Rooms including Condensing Units, Air Cooler, Air Cooled Condenser, Evaporator, Cold Room Spare Parts and Accessaries etc. to oversea markets. Up to now, LVTE have already grown up to a group with 5 filiales, 250 employees, and 100,000 Sq.m workshop, and annual production volume 30,000 UNITS heat pumps and over 20000 UNITS chillers and 50000sets of refrigerant equipments. Now we have 2 registered Brand LUTE and LYTTE.

LUTE and LYTTE, the brand name itself means MOST ENERGY SAVING AND ENVIRONMENT PROTECTION.

LVTE employees, LVTE health and safety, plan for employees career development. We listen to our customers and work for their demands, customer satisfaction is the first to achieve. We respect our suppliers and emphasize fair competition for a long term business relationship. LVTE will continue to grow up rapidly and stand a leading place at refrigeration,heat pump technology fields by the help and contribution of LVTE people.

Impressed by the founder of specialist knowledge and experience at HEAT PUMP,CHILLER,Refrigeration fields, helped by the closed cooperation with engineers from world famous refrigerant parts companies . LVTE management team is keen to committed innovation to develop low carbon emissions heat pumps to fight for the cold weather, world warming and power shortage. LVTE heat pumps, such as air source heat pumps, water source heat pumps, geothermal ground source heat pumps,chillers are changing our ways of living, to reduce our foot print.LVTE is consistently create new possibilities to develop new technology for reducing carbon emissions, enhance people's comfort and improve lives.
