Brand Name: LYTTE
Model Number: LTWH(R) series
Place of Origin: Shandong, China (Mainland)
Introduction and Technical Specification of

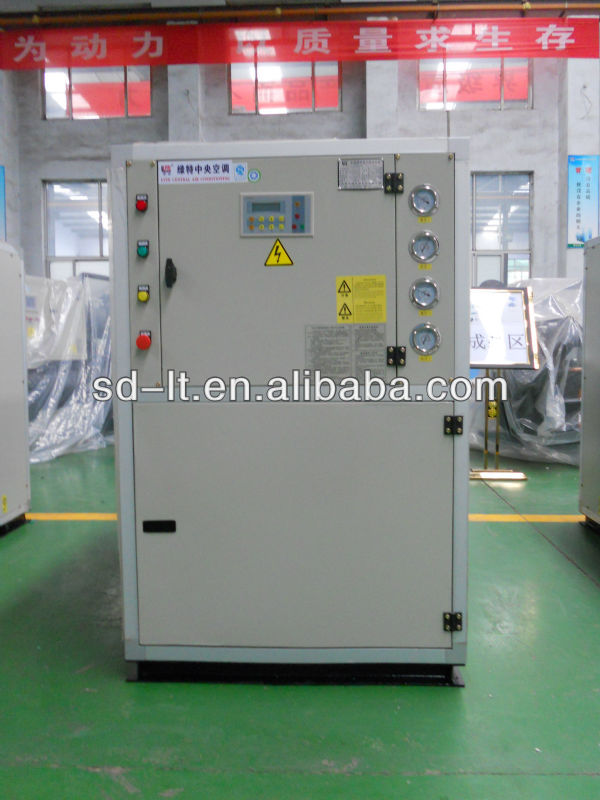

Scroll Compressor Geothermal(Water to Water) Heat Pump-LTWH(R)
Features:
APPLICATION
Used for an area of 100m 2~ 1000m2 building. It can make free living hot water for demand as Villa, hotel, restaurant, facto
theater, stadium, residential quarter, textile, food, medicine, metallurgy etc.
STRUCTURE
Panels and frame are made from galvanized steel protected with polyester powder painting to ensure total resistance to
atmospheric agents.
HERMETIC COMPRESSORS
Use brand hermetic scroll compressor with low energy consumption, stable operation, and little vibration and low noise.
EVAPORATOR
High efficiency tube in tube heat exchanger, factory insulated with flexible close cell material.
CONDENSER
High efficiency tube in tube heat exchanger, factory insulated with flexible close cell material.
DHW Heat Recovery Heat Exchanger
High efficiency plate heat exchanger or tube in tube heat exchanger.
REFRIGERANT CIRCUIT
Copper tube connection with charge valves, filter, thermostatic expansion valve, gas-liquid separator, high pressure switch
and low pressure switch. The heat pump units are complete also with 4-way valve and one way valve.
HYDRAULIC CIRCUIT
Built with user side and source side water inlet/outlet connectors, water discharge connectors.
LTWH (R) Series Scroll Compressors Ground Source
Heat Pump/Water to Water H eat Pump
MODE LS: LTWH(R)-020---LTWH(R)-10
Heating Capacity: 8.6-282KW
Cooling Capacity: 7.2-250KW
Model Specification:
LT W H (R) --- 020
Notes: LT--LVTE Comp any Products Code
W--Scroll Compressor H--H eat P ump Type;Heating&Cooling
R--H eat Rcovery(D HW System)
2--Normal Cooling Capacity(USRT)
