130-2800KW, Ground Source Heat Pump, Geothermal Heat Pump, Heating and Cooling&Domestic Hot Water

Features:
Wide range of application:
Acting as multi-function unit such as cooling, heating, sanitary hot water separately or simultaneously. Wide application as hotel, apartment, villa, factory, shopping center, office building, school, etc.
Green Products:
Adopting non-pollution and environment-friendly refrigerant; Great environmental and economic benefit: no boiler or cooling tower;less space, less CO2 and less initial investment. Run-time without waste discharge, when heating replaces the boiler;
Stable and Reliable Operation:
1. Semi-hermetic screw compressor for mod. 185÷3700.Each compressor is equipped with a crankcase heater and a thermal overload cut-out; the screw compressor is also complete with a built-in electronic protection with temperature sensor located directly in the motor winding and on the discharge line.
2. The refrigerant circuit is complete with sight glass, filter drier, high and low pressure gauges, solenoid valve, direct expansion valve, high and low pressure switch.
3. Shell and tube dry expansion type condenser, factory insulated with flexible close cell material. 4. Shell and tube type evaporator, factory insulated with flexible close cell material.
4. The electric panel consists of compressor breaker, compressor contactor, phase sequence relay, control circuit breaker, microprocessor control with function display.
5. LCD display, touch screen control panel as standard.
6. Automatic operation dramatically reducing maintenance cost thanks to reliable microprocessor system.
7. For the units with semi-hermetic screw compressor, an infinitely variable capacity control system that is capable of exactly matching the demand requirement of the system is to be supplied. This system is to provide precise and stable control of supply water temperature over the complete range of operating conditions.
High Efficiency and Energy Saving:
COP 4.5-5.5, low running cost, compare with other heating system can save 1/2-1/3.

Water Source(Water to Water) Heat Pump(WSHP)
Ground Source Heat Pump(GSHP)
Geothermal Heat Pump(GHP)

MODELS: LTLHM(R)-35---LTLHM(R)-700
R407C with Screw Compressors
Heating Capacity: 142-2632KW
Cooling Capacity: 130-2340KW
MODELS: LTLHG(R)-55---LTLHG(R)-800
R134A with Screw Compressors
Heating Capacity: 198-2848KW
Cooling Capacity: 185-2800KW

Technical Data of Screw Geothermal(Ground Source/Water to Water) Heat Pumps-LTLHM(R)

Model Specification:

LT L H M (R) --- 80
LT: LVTE Company Products Code

L: Screw Compressor

H: Heat Pump (Cooling&Heating)
M: R407C-Standard Type

80: Normal Cooling Capacity (USRT)

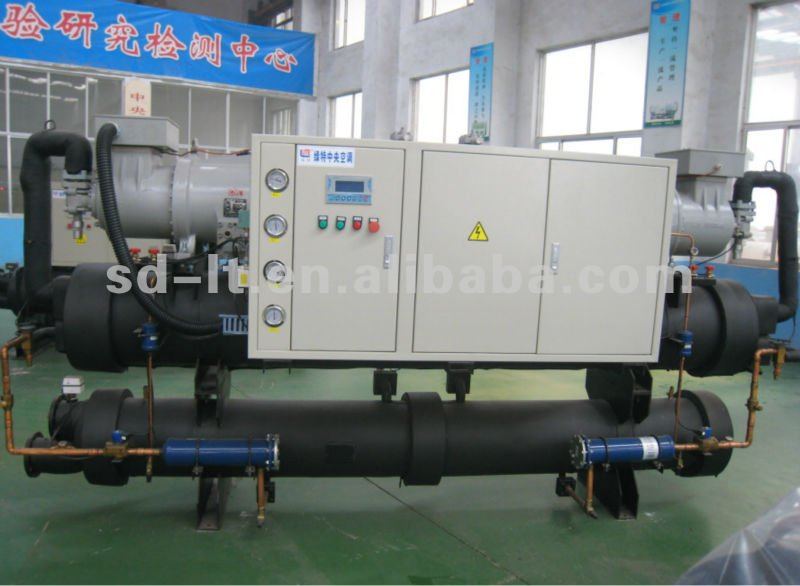

Products in the Factory
