CWX-15Q/N 2 Way BSP/NPT1/2"- 1" SS304 mini 12v dc motorized stainless steel ball valve

FOB Price:

US 5-50 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

2000 Piece/Pieces per Month

Port:

Ning Bo

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,D/P,T/T,Western Union

Brand:

GOGO

Products Model:

CWX-15Q/N

Products Details
Company Profile

Quick Details

Brand Name: GOGO

Model Number: CWX-15Q/N

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: Carton
Delivery Detail: 7 days

Specifications

CWX-15Q/N 2 Way BSP/NPT1/2"- 1" SS304 mini 12v dc motorized stainless steel ball valve

Features:
♦ can be used in Kaishuifang, and is an excellent product to replace the solenoid valve
1, POM gears and metal gears complement each other structure, POM gear used in high-speed level reduced gear noise, while low-grade metal gears, to ensure the reliability of the gear.
2, long life, switching frequency of 100,000 times.
3, electrical and mechanical limit stop integrated design, positioning accuracy, high consistency, eliminate the actuator may even turn.
4, the actuator and valve assembly can be multi-angle, convenient for space allocation requirements.
5, the ball floating seal structure, no drip, suitable for heavy dirt and long-term non-action situations.

Specification

Product size : G (bsp) 1/2" 3/4' 1"

Maximum working pressure : 1.0Mpa

circulation means : fluid, air

rated voltage : DC3-6V 12v AC/DC9-24V AC220V

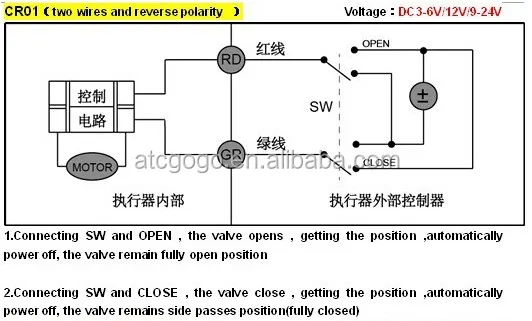

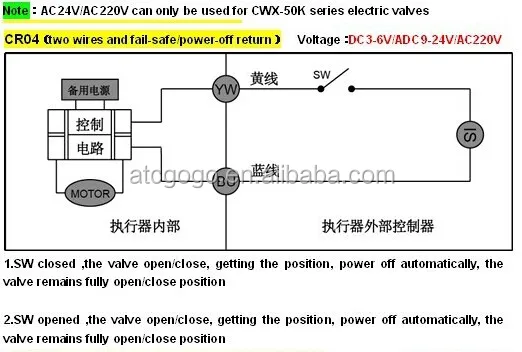

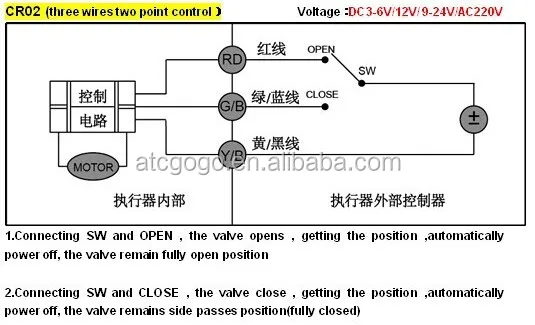

Wiring Control Methods : CR-01,CR02 ,CR03 ,CR04 , CR05

Working current : Max100mA (CR04 Max 105mA)

Open / close time : <8s

Life time : 100000 veces

Valve body material : SS304;Bass

Actuator Material : engineering plastics

Seal Material : EPDM y PTFE

Rotation of actuator : 90

Max. par force : 2 n. m

Cable length : 0.5 m

Ambient temperature :0~ 90°c

Manual override : No

Indicator : No

Protection class : IP65

Dimensions

cables

Products Scope:
Heat meter, central air-conditioning fan coil, fire sprinkler, university saving water, automatic control systems, industrial automation and other small devices, water-saving appliances, drinking water equipment.


Packaging & Shipping

1.Inner packing: opp bag, then carton box for each product 2.Outer packing: export standard carton, Foam outside protecting the goods against damage 3.Usually we ship your order by sea or by air... 4.We do our best to ship your order within 1 week after receiving your payment 5.We'll tell you the tracking number once your order has been sent 6.We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
