CWX-25S 2,3,5 wires control electric ball valve with manual override mini motorized valve

FOB Price:

US 5-50 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

2000 Piece/Pieces per Month

Port:

Ning Bo

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,D/P,T/T,Western Union

Brand:

GOGO

Products Model:

CWX-25S

Products Details
Company Profile

Quick Details

Brand Name: GOGO

Model Number: CWX-25S

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: Carton
Delivery Detail: --

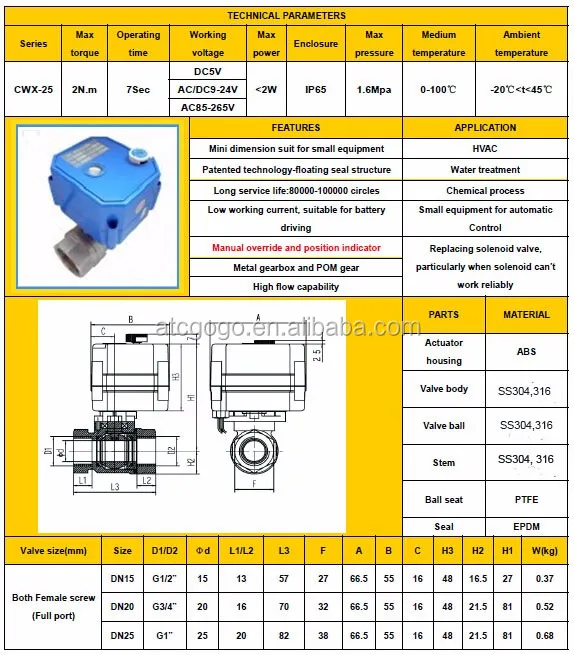

Specifications

CWX-25S 2,3,5 wires control electric ball valve with manual override mini motorized valve

Specification

Product size : BSP/NPT 1/2"-1"

Maximum working pressure : 1.0Mpa

circulation means : fluid, air

rated voltage : DC 3-6V 12V ADC9-24V AC220V

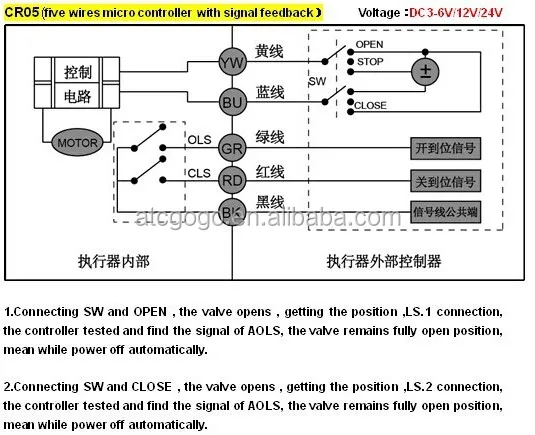

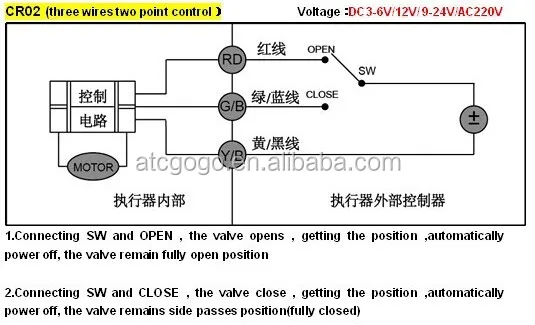

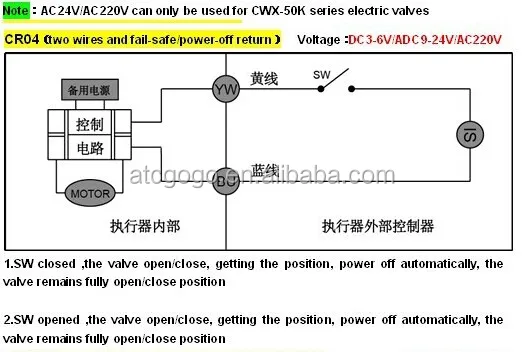

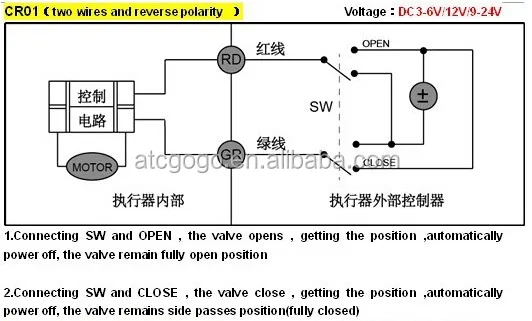

Wiring Control Methods : 2,3,5 wires CR-01-CR05

Working current : 80mA

Open / close time : 3-5 S

Life time : 100000 veces

Valve body material : SS304; Brass

Actuator Material : engineering plastics

Seal Material : EPDM y PTFE

Rotation of actuator : 90

Max. par force : 2.5 n. m

Cable length : 0.5 m

Ambient temperature :-15 ~ 50

Liquid temperature : 0 ~ 80C

Manual override : Optional

Indicator : No

Protection class : IP65

Dimensions

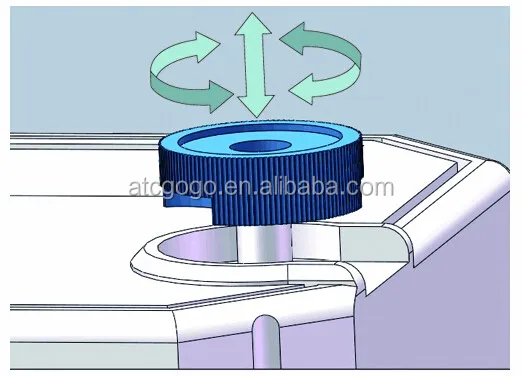

1. It is only permitted to use when power off.

2. Lift the hand-wheel, and turn it left or right until the valve is in place.

3.When the black line on the indicator is horizontal the valve is on; when vertical,

the valve is off.

4. Press down hand-wheel after using manual override in order to work properly when power-on.

cables

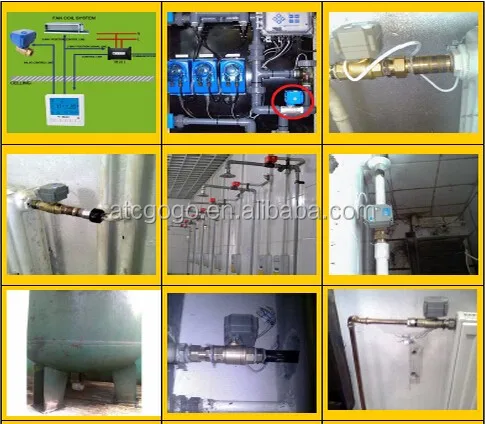

Situable for :
1. IC card meters,heat energy meters,air-warm valve.
2. HVAC and fire works.
3. Water equipment,auto-control watersystem,industrial mini-auto equipment, Small equipment for automatic control
4. Irrigation equipment,drinking water equipment,solar water heaters,washing machines,water heaters,industrial humidifier.
5. Replacing solenoid valve, particularly when solenoid cannot work reliably,the circumstance pneumatic valve can not work.
6. Multiple voltage and control mode, applicable to a variety of occasions.


Packaging & Shipping

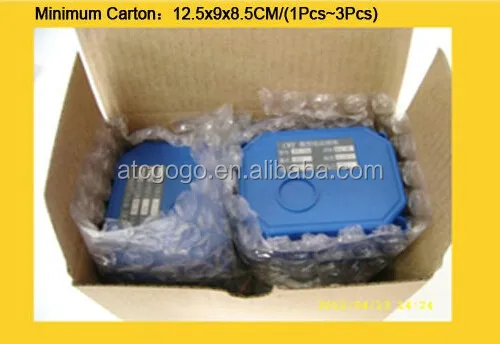

1.Inner packing: opp bag, then carton box for each product 2.Outer packing: export standard carton, Foam outside protecting the goods against damage 3.Usually we ship your order by sea or by air... 4.We do our best to ship your order within 1 week after receiving your payment 5.We'll tell you the tracking number once your order has been sent 6.We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
