Pneumatic angle seat valve, regulating valve,y type angle seat valve

FOB Price:

US 1-50 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

2000 Piece/Pieces per Month

Port:

Ning Bo

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,D/P,T/T,Western Union

Brand:

GOGO

Products Model:

JF 100 series

Products Details
Company Profile

Quick Details

Brand Name: GOGO

Model Number: JF 100 series

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: Carton
Delivery Detail: 7 days

Specifications

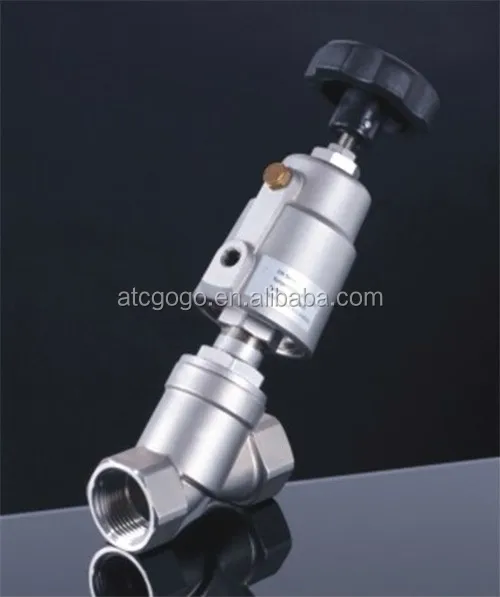

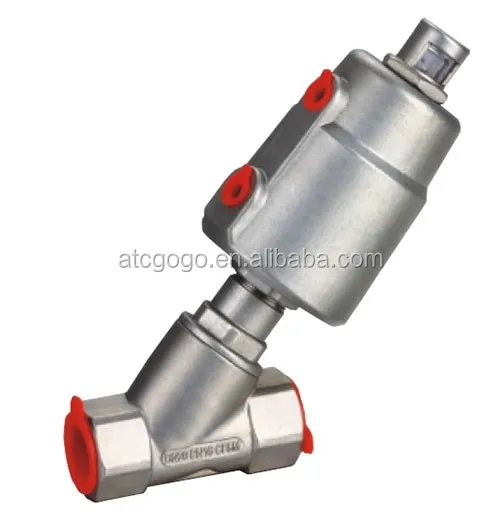

Pneumatic angle seat valve, regulating valve,y type angle seat valve

can adjust piston stroke, restrictions, regulating valve,applicable to all types traffic block valves, another horn of air without control in mechanical (electromagnetic) failure can also be used to emergency braking.

Specification

Max pressure : 1.6 Mpa(232psi)

pressure : 0.3~0.8 Mpa (43.5-116psi)

Material : CF8M / CF8

Seal : PTFE

Actuator material : CF8

Actuator size : 40mm, 50mm, 63mm, 90mm, 125mm

Applicable Fluid : water, alcohol, oil, fuel, steam, neutral gas or liquid, organic solvent, acid and lye

Max fluid viscosity : 600mm²/s

Fluid temperature : -10°c~180°c , 25°c~220°c

Ambient temperature : -10°c~80°c

Control type : Normally open, Normally closed single acting/double acting ,
Double acting

Connection : Threaded (BSP, BSPT, NPT), Welded, Flanged, Tri-clamp

Dimensions

1 Lndication rod (nylon) 9 Piston seal (VITON)

2 Actuator (CF8) 10 Seal spring (AISI 304)

3 pILOT PORT (1/8") 11 Connecting piece (CF8M/ CF8)

4 Stem (AISI316/ 304) 12 Body seal (PTFE)

5 Stem seal (PTFE) 13 Valve core (VF8M/ CF8)

6 Cap (PC) 14 Seat (PTFE)

7 Spring (steel 65Mn) 15 Gasket (AISI316/ 304)

8 Piston (Alu.alloy) 16 Body (CF8M/ CF8)


Packaging & Shipping

1.Inner packing: opp bag, then carton box for each product 2.Outer packing: export standard carton, Foam outside protecting the goods against damage 3.Usually we ship your order by sea or by air... 4.We do our best to ship your order within 1 week after receiving your payment 5.We'll tell you the tracking number once your order has been sent 6.We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
