Home > Products > Refrigeration Fittings > Ball valve

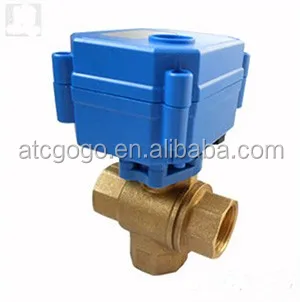

mini motorized ball valve 2,3,5 wires control DN15 1/2 inch electric actuator 3 way ball valve

FOB Price:

US 5-50 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

2000 Piece/Pieces per Month

Port:

Ning Bo

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,D/P,T/T,Western Union

Brand:

GOGO

Products Model:

CWX-15

Products Details
Company Profile

Quick Details

Brand Name: GOGO

Model Number: CWX-15

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: Carton
Delivery Detail: 7 days

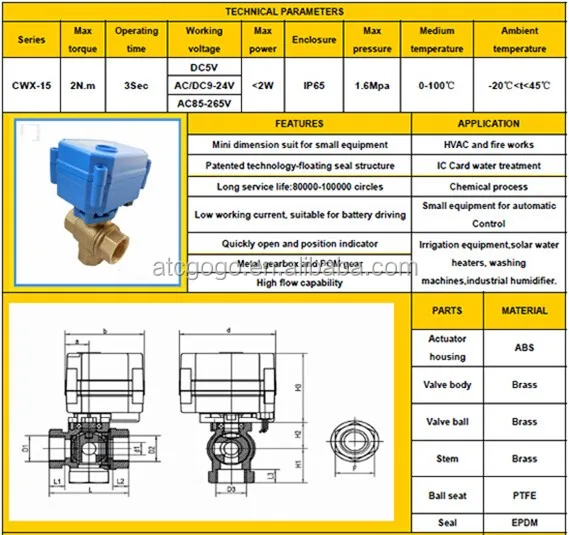

Specifications

mini motorized ball valve 2,3,5 wires control DN15 1/2 inch electric actuator 3 way ball valve

Specification

Product size : G (bsp) 1/2" 3/4"

Maximum working pressure : 1.6Mpa

Circulation Medium : Fluid , air

rated voltage : DC3-6V /ADC9-24V/AC220V

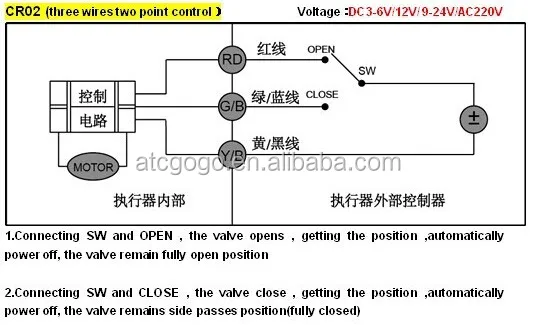

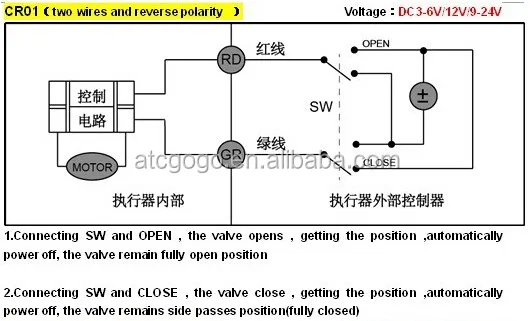

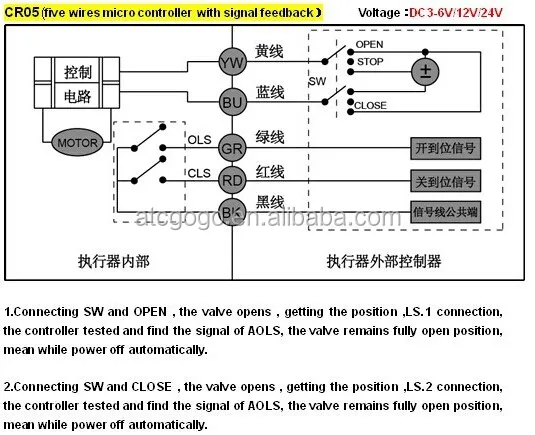

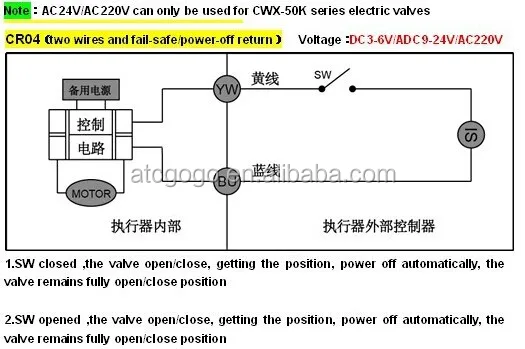

Wiring Control Methods : CR-01- CR05

Working current : 80mA

Open / close time : 3 S

Life time : 100000 veces

Valve body material : Brass

Actuator Material : engineering plastics

Seal Material : EPDM y PTFE

Rotation of actuator : 90

Max. par force : 2 n. m

Cable length : 0.5 m

Ambient temperature : 0~90°c

Liquid temperature : -5~100°c

Indicator : No

Protection class : IP65

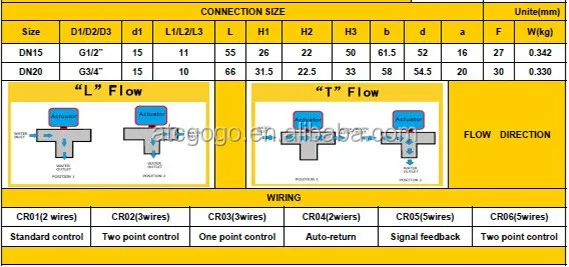

Dimensions

cables

Applications:
1.Air-warm valve.HVAC and fire-flight sprinkler service,Fan coil and,hot water cycle system
2.Environmental Protection and drain water system,Water treatment project .
3.IC card meters,heat energy meters and reuse of rainwater and reuse of grey water system
4.Irrigation equipment,drinking water equipment,solar water heaters,washing machines,water heaters,industrial humidifier.
5.Small equipment for automatic control,agricultural water conservation and water-saving irrigation system
6.Solar thermal,under-floor,rain water,irrigation,plumbing service,hot water heating and solar glycol loop,ideal for off-grid system.
7.Water,Irrigation system,cooling/heating system,Low voltage plumbing system
8.Water equipment,auto-control water system,industrial mini-auto equipment, Small equipment for automatic control


Packaging & Shipping

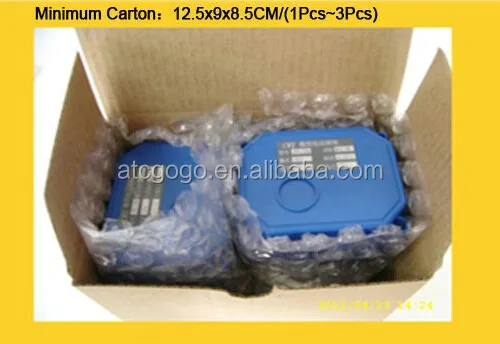

1.Inner packing: opp bag, then carton box for each product 2.Outer packing: export standard carton, Foam outside protecting the goods against damage 3.Usually we ship your order by sea or by air... 4.We do our best to ship your order within 1 week after receiving your payment 5.We'll tell you the tracking number once your order has been sent 6.We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
