Home > Products > Refrigeration Fittings > Ball valve

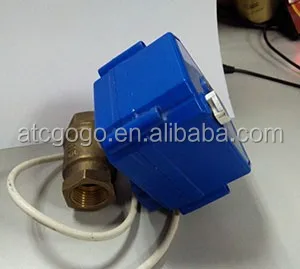

2 way G (bsp) 1/2"-1" motorised ball valve with manual override 2,3,5, wires control electric valve for water

FOB Price:

US 5-50 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

2000 Piece/Pieces per Month

Port:

Ning Bo

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,D/P,T/T,Western Union

Brand:

GOGO

Products Model:

CWX-25S

Products Details
Company Profile

Quick Details

Brand Name: GOGO

Model Number: CWX-25S

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: Carton
Delivery Detail: --

Specifications

2 way G (bsp) 1/2"-1" motorised ball valve with manual override 2,3,5, wires control electric valve for water

Features:
Mini dimension suits for small equipment
Patented technology-floating seal structure
Long service life 100,000 circles
Low working current, only 60 to 80mA
IP65 and F type are available
Manual override function is safe and easy

Specification

Product size : G (bsp) 1/2"-1"

Maximum working pressure : 1.0Mpa

circulation means : fluid, air

rated voltage : DC 3-6V 12v AC/DC9-24V AC220V

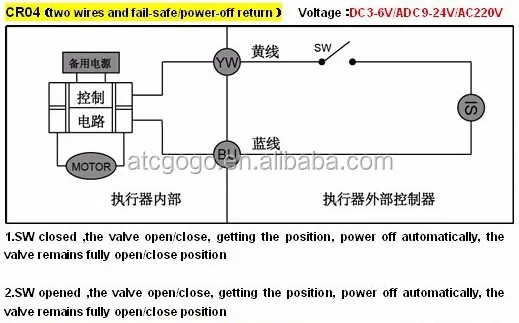

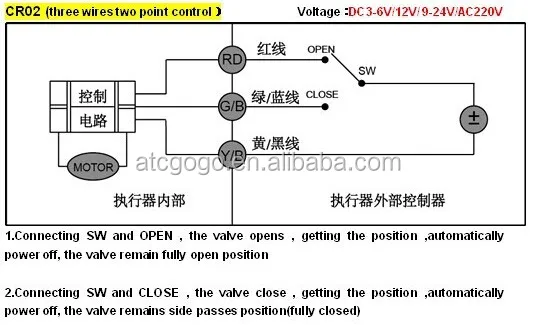

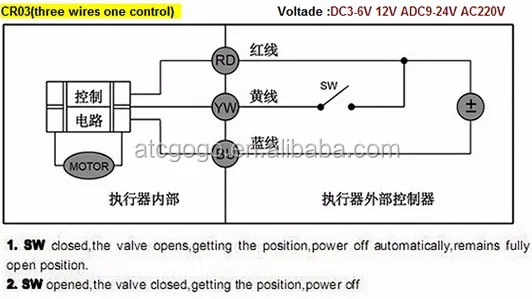

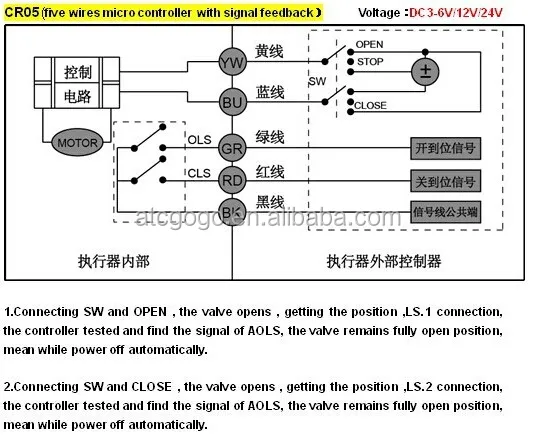

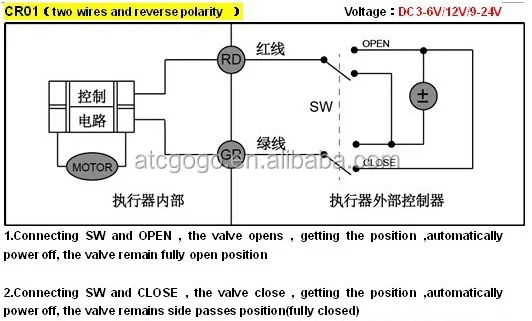

Wiring Control Methods : CR-01- CR05

Working current : 80mA

Open / close time : 8 S

Life time : 100000 veces

Valve body material : SS304; Brass

Actuator Material : Engineering plastics

Seal Material : EPDM y PTFE

Rotation of actuator : 90

Max. par force : 2.5 n. m

Cable length : 0.5 m

Ambient temperature :-15 ~ 50

Liquid temperature : 0 ~ 80C

Manual override : yes

Indicator : No

Protection class : IP65

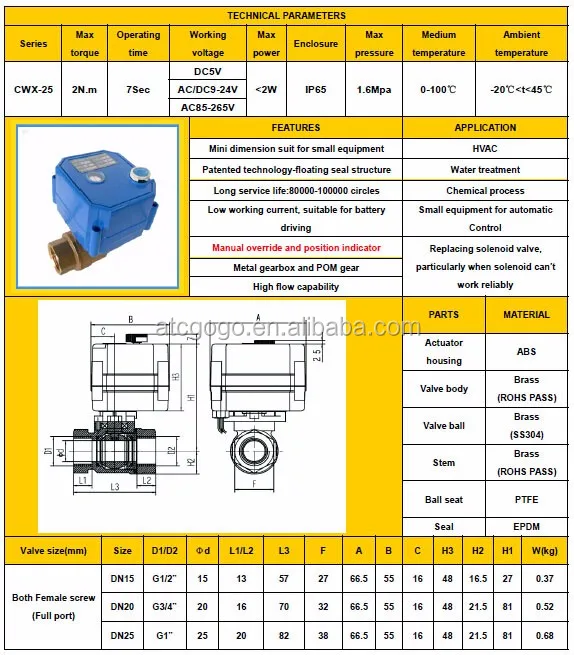

Dimensions

Manual operation schematic diagram:

1. It is only permitted to use when power off.

2. Lift the hand-wheel, and turn it left or right until the valve is in place.

3.When the black line on the indicator is horizontal the valve is on; when vertical,

the valve is off.

4. Press down hand-wheel after using manual override in order to work properly when power-on.

cables

For occasions
1 IC card water meter, heat meter.

2 Air-conditioning fan coil, fire sprinkler.

3 Solar energy drain valve, high efficiency water-saving.

4 Automatic control systems, university water system, small-scale industrial automation equipment, environmental protection.


Packaging & Shipping

1.Inner packing: opp bag, then carton box for each product 2.Outer packing: export standard carton, Foam outside protecting the goods against damage 3.Usually we ship your order by sea or by air... 4.We do our best to ship your order within 1 week after receiving your payment 5.We'll tell you the tracking number once your order has been sent 6.We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal

Founded in July,2014,Ningbo Fenghua GO GO Automatic company is a high-tech enterprise with all vitality , potential and comprehensive strength .The company is located in the Zhejiang Ningbo Science &Technology zone ,a unique place with beautiful scenery and gifts of nature.
On the basis of technology development , the company has taken in a group of experienced personnels who are talented in senior management ,marketing and skills of producing .In the company ,great attention is paid to basic management ,stable quality ,continuously improving pre-sale services,sale and after-sale services,and enhancing the market competitiveness of our products.
Main products of our company : automatic parts, pneumatic solenoid valve , air water solenoid valve, hydraulic valves, gear piston or vane pumps , fittings connectors , temperature pressure transmitter , temperature controller , PLC , DCS parts , hardware stainless steel or brass or plastic parts , etc.
Since its foundation ,the company keeps living up to the belief of :"honest selling ,best quality ,people-orientation and benefits to customers. "
We are doing everything to offer our customers with best services and best products .We promise that we'll be responsible all the way to the end once our services begin.
