2 way water solenoid air compressor valve 1/2'' orifice 3mm electric drain timer valve DC24V waterproof coil

FOB Price:

US 1-15 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

2000 Piece/Pieces per Month

Port:

Ning Bo

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,D/P,T/T,Western Union

Brand:

GOGO

Products Model:

GETD-A

Products Details
Company Profile

Quick Details

Brand Name: GOGO

Model Number: GETD-A

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: Carton
Delivery Detail: 7 days

Specifications

2 way water solenoid air compressor valve 1/2'' orifice 3mm electric drain timer valve DC24V waterproof coil

2 Position Two Way Electric Drain Solenoid Water Valve

Code Option

Thread Option: G

Standard Voltage Option: DC24V,AC110V,AC220V

Material Option: Brass

Oil Seal Option:NBR,EPDM,VITON

Specication of the Timer
Time interval ( OFF )	0.5--45 minutes
Discharge time ( ON )	0.5--10 seconds
Manual test button	micro switch
Power supply voltage	24-380V AC / DC 50 / 60Hz
The largest current consumption	4mA
Ambient temperature	-40 °C to 60 °C
Water proof grade	IP65
Shell material	Flame retardant ABS plastic
Electrical connection	DIN43650A
Indicator lamp	LED indicating power on / off

Specification of the Valve
Type	Two two direct-acting valve
In / out port size	1/2"
Aperture	3 mm
Maximum working pressure	5-16bar
Maximum Media temperature	80°C
Valve Material	Forging brass,
Insulation class	H
Protection grade	IP65
Voltage	24VDC/110VAC/220VAC
Voltage range	10%

Two position, two way, normal close switch, magnetic solenoid water valve.
Can be installed at any angle, but it is a good choice when the horizontal tube keep upward.
Used to control automatically the liquid and gas in the pipeline


Packaging & Shipping

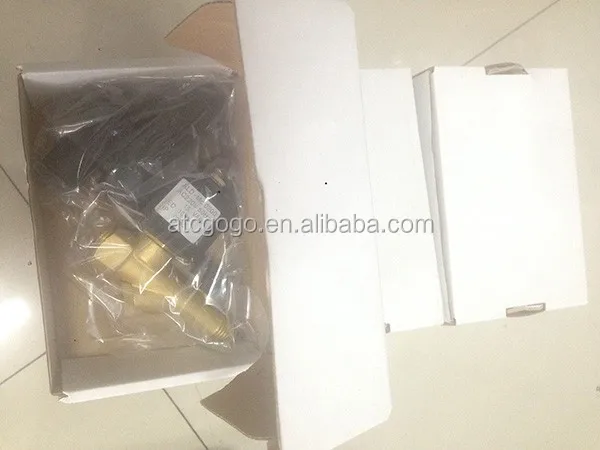

1.Inner packing: opp bag, then carton box for each product 2.Outer packing: export standard carton, Foam outside protecting the goods against damage 3.Usually we ship your order by sea or by air... 4.We do our best to ship your order within 1 week after receiving your payment 5.We'll tell you the tracking number once your order has been sent 6.We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal

Founded in July,2014,Ningbo Fenghua GO GO Automatic company is a high-tech enterprise with all vitality , potential and comprehensive strength .The company is located in the Zhejiang Ningbo Science &Technology zone ,a unique place with beautiful scenery and gifts of nature.
On the basis of technology development , the company has taken in a group of experienced personnels who are talented in senior management ,marketing and skills of producing .In the company ,great attention is paid to basic management ,stable quality ,continuously improving pre-sale services,sale and after-sale services,and enhancing the market competitiveness of our products.
Main products of our company : automatic parts, pneumatic solenoid valve , air water solenoid valve, hydraulic valves, gear piston or vane pumps , fittings connectors , temperature pressure transmitter , temperature controller , PLC , DCS parts , hardware stainless steel or brass or plastic parts , etc.
Since its foundation ,the company keeps living up to the belief of :"honest selling ,best quality ,people-orientation and benefits to customers. "
We are doing everything to offer our customers with best services and best products .We promise that we'll be responsible all the way to the end once our services begin.
