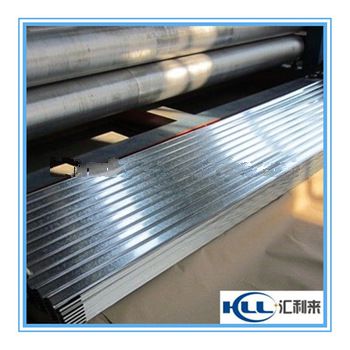

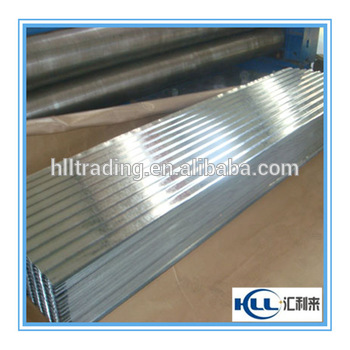

SGCC Corrugated Galvanized Steel Sheet For Container

cold rolled hot dip galvanized steel coil/

Galvanized steel coils are widely used in the construction industry, as raw material for the production of corrugated panels, fencing products, drywall panel profiles, ventilation systems etc. Recommended for both outside and inside usage, galvanized steel has a high resistance to corrosion in different environments, due to a protective layer of zinc of 100 – 180 grams per square metre.

Hot-dip galvanized steel coils are produced by immersing steel in a zinc bath. An appropriate galvanizing process requires a pretreatment process during which the steel passes through different baths which prepare the surface for zinc coating. In this stage, chemicals are used to clean the surface of the steel. After the chemical treatment, the steel coils pass through a bath of melted zinc at temperatures around 460 ° C. The resulting uniform coating is finished through a process of skin-passing to provide smooth and shiny appearance of the finished product. To store for a longer period, the hot-dip galvanized coils can be delivered with a final oil coating, according to the customer’s demand.

PROFILAND STEEL produces hot-dip galvanized steel coils with very good workability at further cold forming and bending processes.

Technical specification for the hot-dip galvanized produced by PROFILAND STEEL::

• Steel grade: DX51D+Z• Zinc coverage: 30-180 g/sqm on both sides (depending by the requested specification);• Thickness: between 0,2 mm and 1,00 mm;• Width: 600mm,914mm,1000mm, 1220mm and 1250 mm;• Coil weight: 4-6 mt;• Coil ID: 508 mm;• Coil OD: 900-1500 mm ;

Depending on their usage, the hot-dip galvanized coil can be delivered slightly oiled.

1.product

Color-coated corrugated steel sheet/plates are widely used as new building material, including roofing and wall, they are made by cold-rolled galvanized sheet, and treated by degreasing, phosphate, chromate and others, coated with organic fluorine resin coating. They are manufactured through baking and profiling machine.

Top coating (roller coating) is applied and then the product is oven cured for color performance, lifespan can reach more than 30 years. And color steel sheet/plate is high fireproofing, which is applicative in 500°C.

2.specification

 3.factory

Designing, manufacturing, installing, and operation as a whole, our factory is a specialized in colorful steel plate series, such as the steel roofing sheet. Now it has passed ISO-9001 quality management system certification.

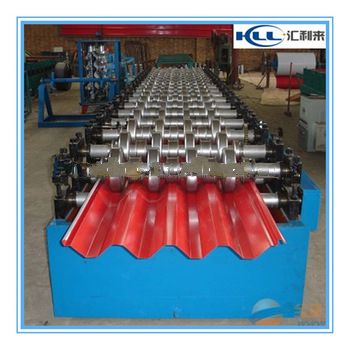

The factory has 21 computer-controlled production lines like colorful steel plate for roofing sheet, color-steel complex sheet, welded steel H-section and C type steel, which can meet different clients’ requirements.

 Also we have good market in Iran, and we have KUNLUN BANK account to easy do business with some Iran customers!
