Home > Products > Ventilation & Air Treatment > Air Filter

Supply customized Panel hepa filter H13

FOB Price:

US 21-30 / Set

Min.Order Quantity:

100 Set/Sets

Supply Ability:

1000 Set/Sets per Day

Port:

qingdao

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

AOBO

Products Model:

AOBO-Hepa air filter H13

Products Details
Company Profile

Quick Details

Brand Name: AOBO

Model Number: AOBO-Hepa air filter H13

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: carton Or packing according to the requirements
Delivery Detail: no more than15 working days after receiving 30% deposit

Specifications

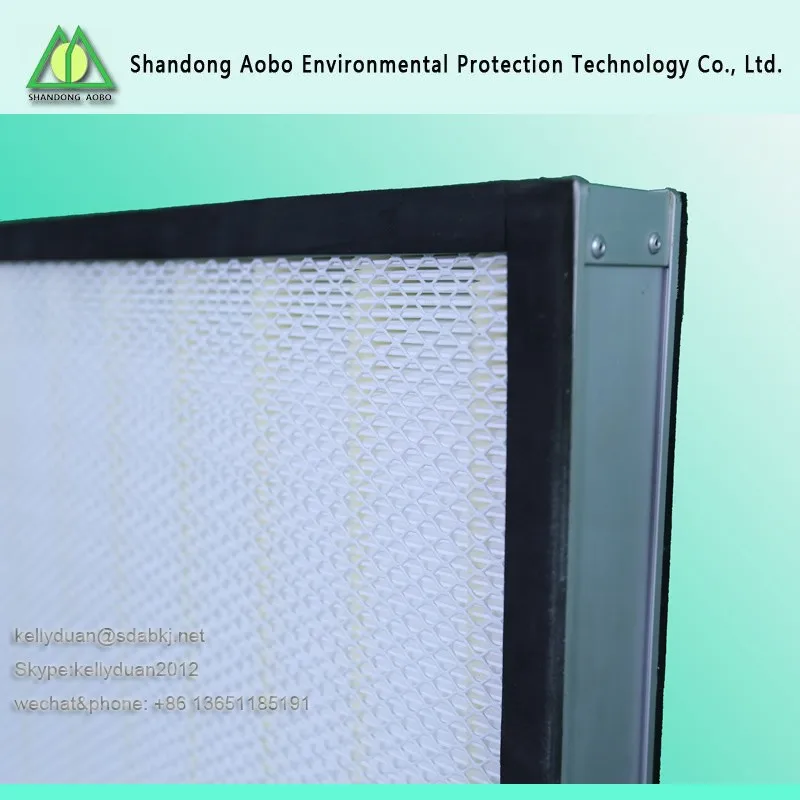

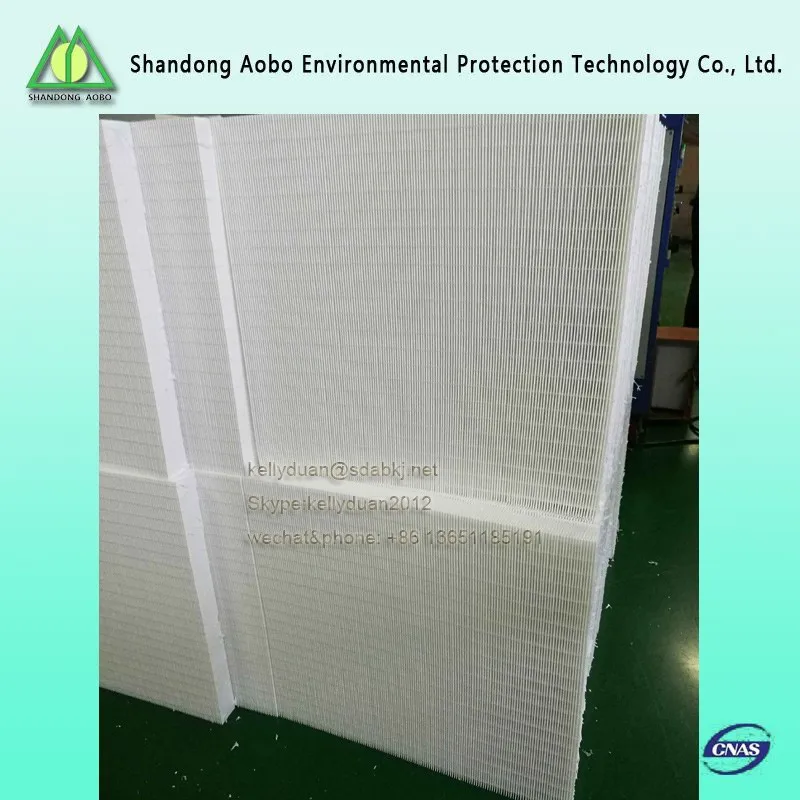

High efficiency filter Mini-pleat Panel hepa air filter H13

Application: Final or return filtration for clean rooms with turbulent flow.
Type: High efficiency filter panel with laminator and seal for mechanical clamping systems.
Laminator: Glass fibre screen, bonded downstream for laminar diffusion.
Faceguard: Expanded metal at inlet side, powder coated RAL 9016.
EN 1822:2009 filter class: H13
Recommended final pressure drop: 500 Pa.
Temperature: 70ºC maximum in continuous service.
Mounting system: Mechanical clamping structure, Terminal housing.

Dimensions(mm)	Rated air flow (m³/h)	Initial pressure (Pa)	Filter efficiency %	Material
WidthHeightDepth				Frame	Filters material	Partition material	Sealant
320320220	400	<200	>99.99 Sodium Flame	Plank Aluminum alloy Galvanized sheet Stainless steel	Fiberglass filter paper	Aluminum foil Veneer paper	Polyurethane rubber
484484220	1000
610610150	1000
820600150	1200
630630220	1500
968484220	2000
945630220	2200
1260630220	3000

Special sizes available upon request.

Related Products

Packaging & Shipping

Packaging Details:Vacuum packing. Or according to buyer's requirement

Delivery Detail: Within 15days after receiving buyer's repayment
