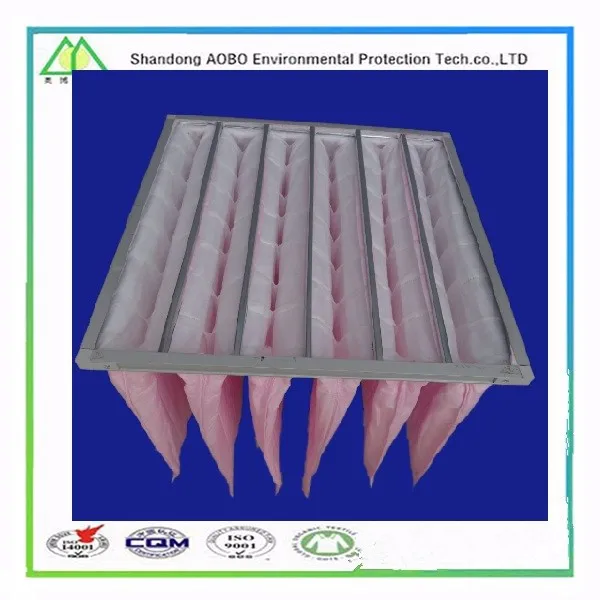

F7 pocket air filter media in roll

FOB Price:

US 1.25-1.5 / Piece

Min.Order Quantity:

1000 Piece/Pieces

Supply Ability:

500 Set/Sets per Day

Port:

QINGDAO

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

AOBO

Products Model:

Customized

Products Details
Company Profile

Quick Details

Brand Name: AOBO

Model Number: Customized

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: Inner plastic bags and outer woven bags
Delivery Detail: 15 days after receive the payment

Specifications

Product Description

Features

Type: Multi pockets filter
Media: F5 -F8 Synthetic fiber
Frame:Galvanized steel/Aluminum/ABS
Recommended final pressure drop: 450Pa
Temperature: 90ºC maximum in continuous service
Applications

The main filter of ventilation system
Advantages
Multilayer composite melt-blown materials
Material is 40% deeper than normal product
"V" shaped filter bag, filter material is utilized 100% totally
All edges have seal processed
The integration design of the inside frame increase the overall structural strength and minimize the pressure drop
The metal edge of the inside frame rolled to be smoothly shape, make the maintenance operation more safely

Model	Outside Dimensions(mm)	Rated air flow(m3/h)	Initial resistance(Pa)	Efficiency(class)	Filter media (Color)	Pockets
	495×295×500mm	1000m3/h	50Pa F5 55Pa F6 60Pa F7 65Pa F8	40-50% F5 60-70% F6 75-85% F7 85-95% F8	White F5 Green F6 Pink F7 Yellow F8	5
	20″×12″×20″	1800m3/h				5
	495×495×500mm	1300m3/h				6
	20″×20″×20″	2200m3/h				6
	595×295×500mm	2600m3/h				8
	24″×12″×20″	1200m3/h				5
	595×495×500mm	2200				5
	24″×20″×20″	1600				6
	595×595×500mm	2700				6
	24″×24″×20″	3200				8

Detailed Images

Packing & Delivery

Packing Details: vacuum or compressed packaged in double polybag. The roll size is up to customer requirement.

Packing exterior: Poly woven Bag or as customer's request

Shipping

1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;

2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

3. Customers specifying freight forwarders or negotiable shipping methods!

4. Delivery Time: 1-7 days for samples; 7-15 days for batch goods.
