Home > Products > Materials > Filter Materials

mini-pleat hepa panel filter

FOB Price:

US 1-10 / Piece

Min.Order Quantity:

100 Piece/Pieces

Supply Ability:

1000000 Piece/Pieces per Month

Port:

Qingdao and Tianjing

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

AOBO

Products Model:

AOBO-3

Products Details
Company Profile

Quick Details

Brand Name: AOBO

Model Number: AOBO-3

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: Packaging Details: vacuum or compressed packaged in double polybag. The roll size is up to customer requirement Packing exterior: Poly woven Bag or as customer's request Shipping 1. FedEx/DHL/UPS/TNT for samples, Door-to-Door; 2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving; 3. Customers specifying freight forwarders or negotiable shipping methods! 4. Delivery Time: 1-7 days for samples; 7-15 days for batch goods.
Delivery Detail: Shipped in 15 days after payment

Specifications

Product Description

Specification

Type: High performance compact panel filter

Media: Wet-laid glass fiber paper

Frame: Aluminum/Stainless steel/Cardboard/ABS

Separator: Hot-melt glue

Protective screening: High strength metal retainer with painting processed

Recommended final pressure drop: 350Pa

Temperature: 90ºC maximum in continuous service

Application

For limited space of air supply system

Advantages

95 pleats/feet,20% higher than normal product, bring lower resistance and longer life

Ultra-fine glass fiber paper, good stability of filtration efficiency

Perfect structure of "V" shape, effectively reduce the system resistance

Light, compact structure

Double side retainers

Model	Outside Dimensions(mm)	Rated air flow(m3/h)	Initial resistance(Pa)	Efficiency(%)	Dust capacity(g)
	610×610×50	700	<=220 or<=140（HV）	≥99.99	450
	915×610×50	1000	<=220 or<=140（HV）	≥99.99	680
	1220×610×50	1400	<=220 or<=140（HV）	≥99.99	900
	610×610×69	1000	<=220 or<=140（HV）	≥99.99	560
	610×610×69	1500	<=220 or<=140（HV）	≥99.99	840
	1220×610×69	2000	<=220 or<=140（HV）	≥99.99	1120
	610×610×80	1200	<=220 or<=140（HV）	≥99.99	650
	610×610×90	1400	<=220 or<=140（HV）	≥99.99	750
	610×610×100	1600	<=220 or<=140（HV）	≥99.99	850
	1170×570×69	1800	<=220 or<=140（HV）	≥99.99	1000
	1170×570×80	2200	<=220 or<=140（HV）	≥99.99	1250
	1170×570×80	2500	<=220 or<=140（HV）	≥99.99	1300
	1220×610×90	2800	<=220 or<=140（HV）	≥99.99	1500
	1220×610×100	3200	<=220 or<=140（HV）	≥99.99	1700

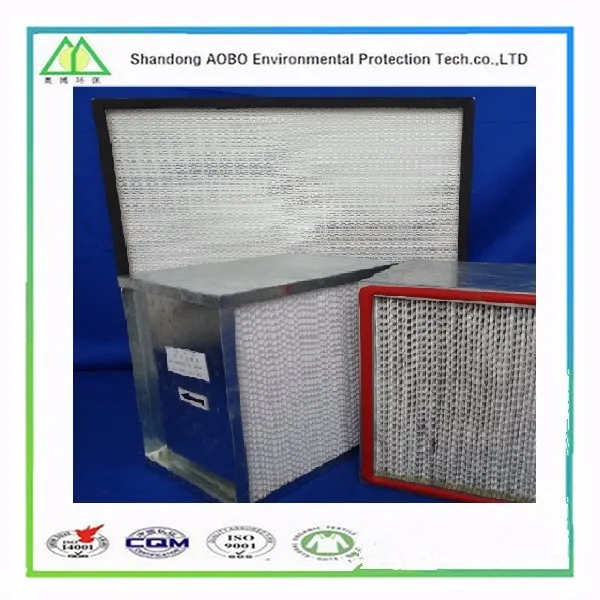

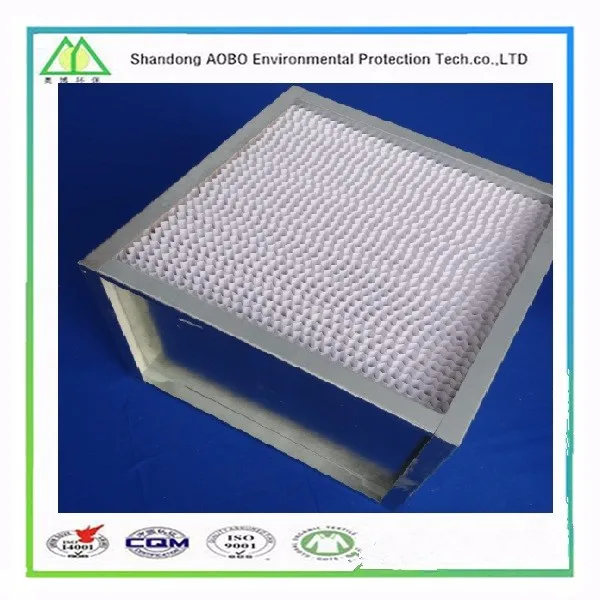

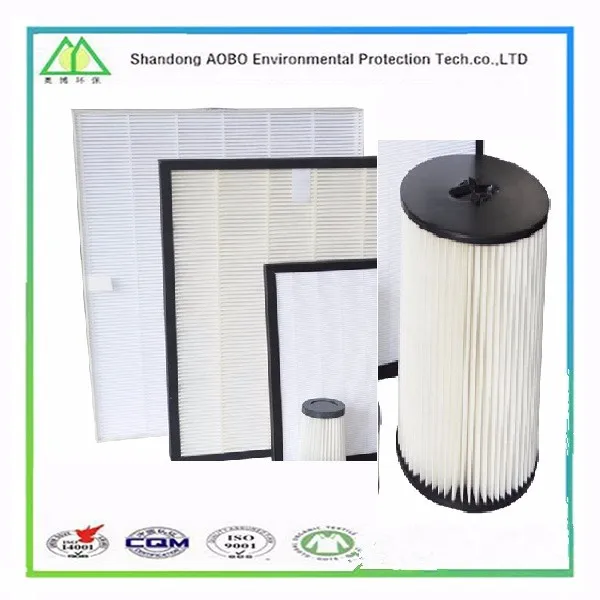

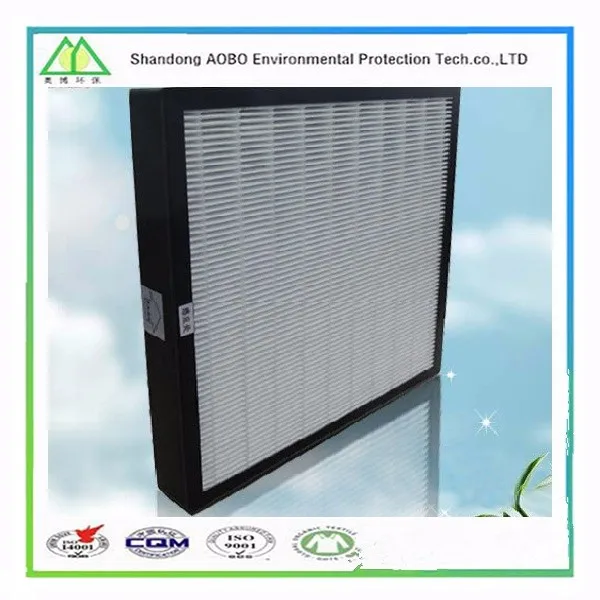

Products Show

Our Service

Our Company

Factory

Our Factory

Workshop

Our Workshop

Warehouse

Our Warehouse

Team

Our Team

Packing & Delivery

Packaging Details: vacuum or compressed packaged in double polybag. The roll size is up to customer requirement

Packing exterior: Poly woven Bag or as customer's request

Shipping

1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;

2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

3. Customers specifying freight forwarders or negotiable shipping methods!

4. Delivery Time: 1-7 days for samples; 7-15 days for batch goods.

Payment Terms

Payment: T/T, L/C; 30% deposits; 70% balance before delivery.

1. Special logistics packaging

2. Suitable carton size

3. Shock bubble film
