PT1000 PT100 temperature sensor NTC temperature sensor

PT1000 PT100 temperature sensor NTC temperature sensor

FOB Price:

US 20-88 / Piece

Min.Order Quantity:

10 Piece/Pieces

Supply Ability:

3000 Piece/Pieces per Month

Port:

Shenzhen, Hongkong

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T,Credit card

Brand:

TEREN

Products Model:

TTD1/ TTD1N

Products Details
Company Profile

Quick Details

Brand Name: TEREN

Model Number: TTD1/ TTD1N

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Retail package
Delivery Detail: Shipped in 14 days after payment

Specifications

Product Description

Applications & Features

These sensors/transmitters can be used for temperature measurement in duct air(T2/TT2), water and steam pipe(T4/TT4) and outside air(T3/TT3)
High performance thermistor & RTD, ensure accurate temperature measurement
Multiple output optional, Light and state of art housing, easy installation
Over voltage and reverse polarity protection, high reliability and anti-interference capability
Wide temperature range and fast response
High protection rate up to IP65

Specifications

T2,3, 4 series temperature sensor

Sensor: High accuracy thermistor or RTD

Output: Thermistor /RTD, 2 wires or 3 wires

Accuracy: typical ±0.2~0.4°C at 25°C, see models

Wiring: 2 wires or 3 wires (RTD) (3 wires connection could obtain better accuracy)

TT2, 3, 4 series temperature transmitter

Sensor: thermistor or RTD, see models

Range: see models

Output: thermistor or RTD, see models

Output Load: ≤500Ω (current), ≥2KΩ(voltage)

Total accuracy: ≤±0.5°C at 0~50°C, see accuracy curve

Power: Current 18.5~35VDC (R_load=500Ω)

8.5~35VDC (R_load=0Ω)

Voltage 15~35VDC,15~28VAC

Work Temp.: -40~85°C, 0~95%RH (Non condensing)

Medium Temperature: -40~100°C

Storage Temperature: -40~85°C

Housing: fireproof ABS, SS probe, SS Well

Protection: IP65

Approval: CE

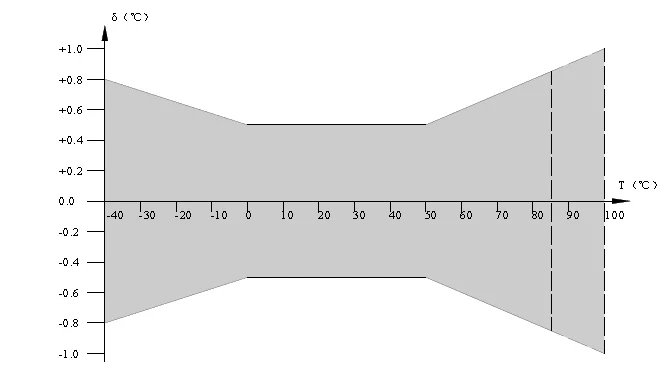

Accuracy Curve:

Models

T2, 3, 4 temperature sensors

Model

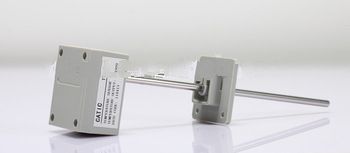

Duct mount temperature sensor

Outside air temperature sensor

Immersion temperature sensor

Thermistor or RTD selections

PT1000, ±0.2°C at 25°C

PT100, ±0.2°C at 25°C

NTC20K, ±0.4°C at 25°C

Ni 1000, ±0.4°C at 25°C

NTC10K-II, ±0.4°C at 25°C

NTC10K-III, ±0.4°C at 25°C

NTC10K-A, ±0.4°C at 25°C

Range

125mm

200mm

Others

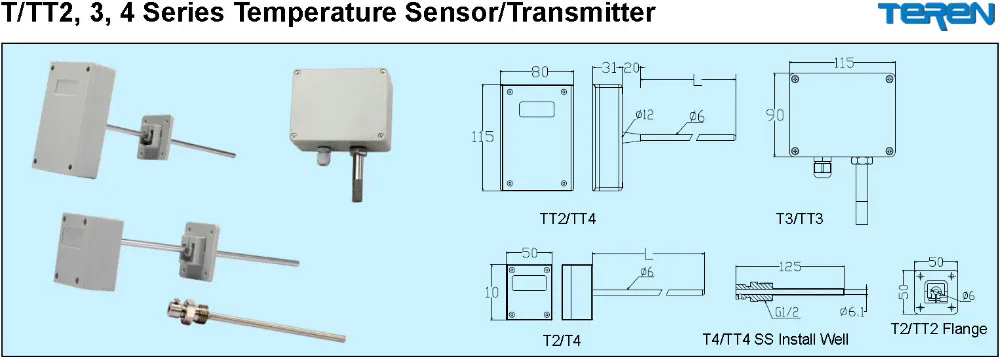

TT2, 3, 4 series temperature transmitter

Model	TT2 TT3 TT4				Duct mount temperature transmitter Outside air temperature transmitter Immersion temperature transmitter
Output		1 2			0-10V 4-20mA(2 wires)
Range			1 2 3 7		0~50°C 0~100°C -40~60°C Others
Well length (TT2/4)				1 2 7	125mm 200mm Others

T4/TT4 Install Well

Model

A-T

Stainless Steel Well

Probe Length

125mm

200mm

Packaging & Shipping

Sample Order	Order	OEM Order
Three work days	2 weeks	3 weeks

Port

Shenzhen, Hong Kong

Company Information

Why choose us ?

♦ Specilizng in manufacturing products of HVAC for almost 10 years.

♦ Harsh process of production and strict testing system.

♦ Material could be traced.

♦ High quality with competitive price.

♦ Delivery in time.

♦ Reply in 24 hours.

Certifications

FAQ

Q1: How to get the latest price?

Tell me the models, quantity, and other special requirement.

Q2: Payment terms?

100% T/T in advance.

Q3: Delivery time?

One week.

Q4: Shippment?

DHL, UPS, TNT etc.

Q5: Is OEM/ODM available?

Yes, it's available.

Q6: Warranty?

18 months.
