Head mounted Temperature Transmitter with Relay Digital temperature controller Indoor Use

Head mounted Temperature Transmitter with Relay Digital temperature controller Indoor Use

FOB Price:

US 20-88 / Piece

Min.Order Quantity:

10 Piece/Pieces

Supply Ability:

3000 Piece/Pieces per Month

Port:

Shenzhen, Hongkong

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T,Credit card

Brand:

TEREN

Products Model:

TTD1/ TTD1N

Products Details
Company Profile

Quick Details

Brand Name: TEREN

Model Number: TTD1/ TTD1N

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Retail package
Delivery Detail: Shipped in 14 days after payment

Specifications

Product Description

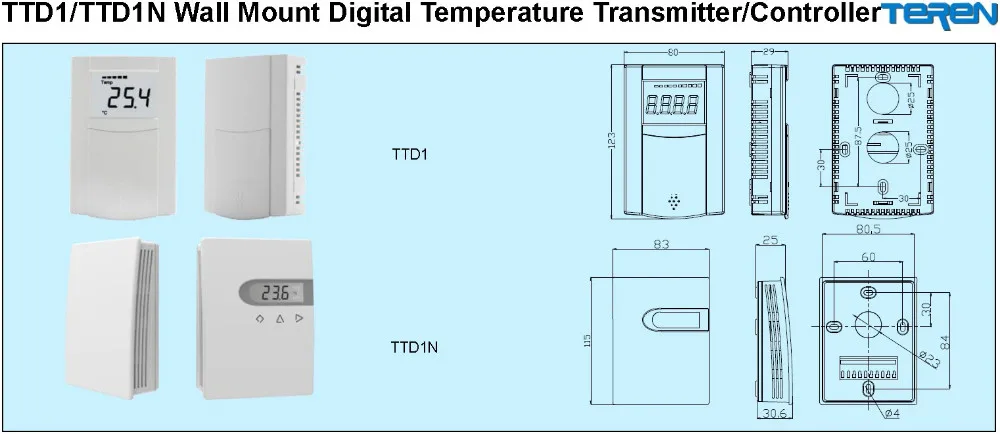

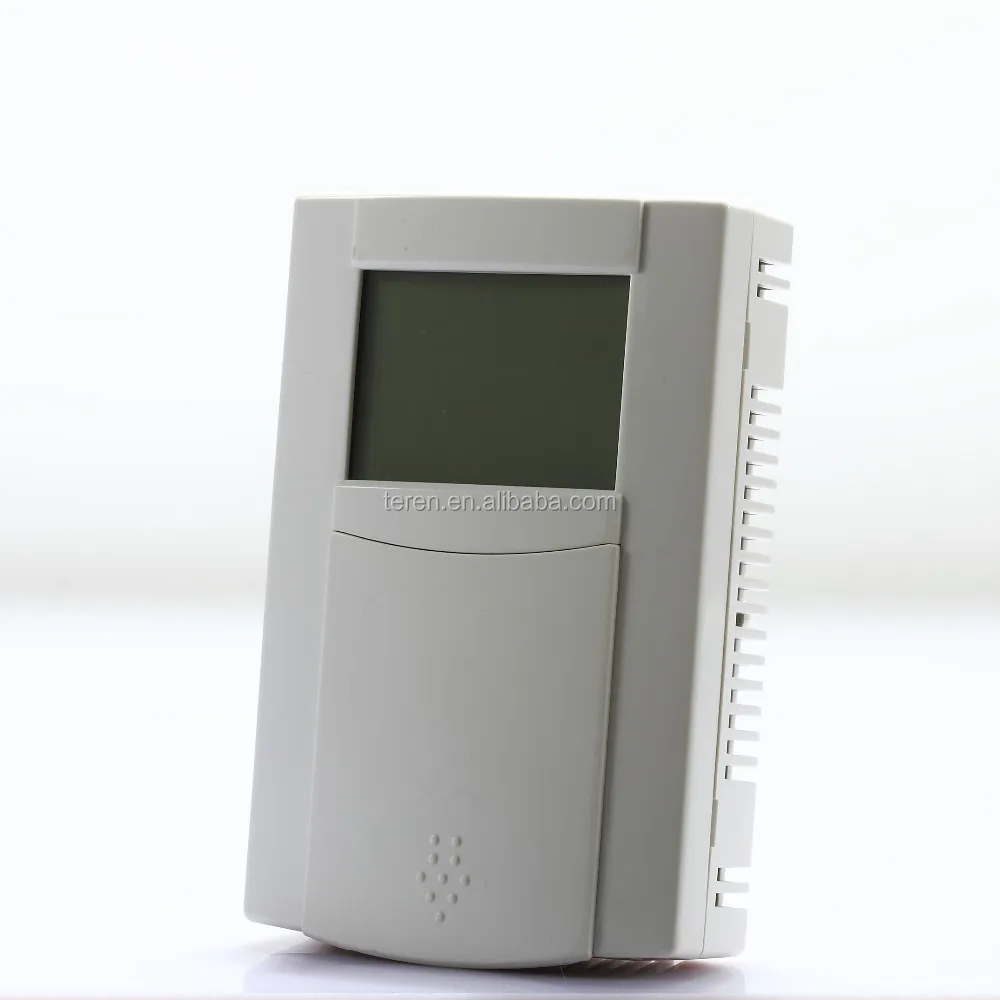

Wall mount temperature transmitter with LCD display as below:

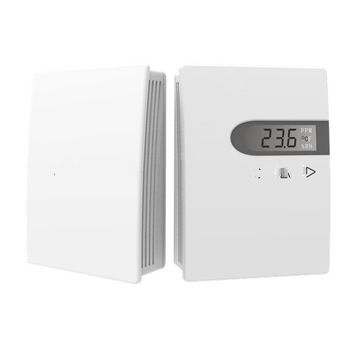

Wall mount temperature transmitter without LCD display as below:

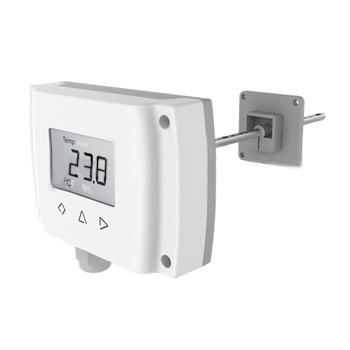

New wall mount temperature transmitter with optional LCD & keys as below:

Applications & Features

TTD1/TTD1N series are designed for indoor environment temperature measurement and control
High performance digital temperature sensor and digital technology applied, ensure accurate measurement, fast response & good long term stability
Multiple outputs selection, over voltage and reverse polarity protection, high reliability and anti-interference capability
Optional relay for alarm or ON/OFF control
Light and state of art housing, easy installation
Wide working temperature range
All electrical terminals are on the inside bottom, avoid any possible destroy to PCB when wiring(for TTD1N)
LCD & function keys can set parameters and calibrate output, so that the product becomes a stand alone controller

Specifications

Sensor: Digital temperature sensor

Range: See models

Output: 4~20mA (3 wires),0~10VDC,RS485/Modbus^{Note 1}

Output Load: ≤500Ω (current), ≥ 2KΩ (voltage)

Relay: TTD1:1×SPDT, 1A/30VDC or 0.5A/125VAC
TTD1N: 1×SPST, 3A/30VDC,3A/250VAC

Accuracy: ≤±0.5°C @ 0~85°C, see accuracy curve

Power: 15~28VAC/15~36VDC

Display & keys: Optional LCD display and function keys, see details on LCD & Keys operation Optional LCD display

Display Resolution: 0.1°C

Work Temp.: -40~85°C, 0~95%RH (Non condensing)

Storage Temperature: -40~85°C

Housing: Fireproof ABS

Protection: IP30

Approval: CE

Optional Accuracy: 0.25°C @ -20 ~105°C (Add “H” after part number)

Accuracy curve:

Models

Model	TTD1/ TTD1N					Temp. transmitter/ controller
Output		1 B				4-20mA/0-10VDC 4-20mA/0-10VDC, RS485/Modbus
Range			1 2 7			0~50°C 0~100°C Others
Relay				0 1		N/A 1SPDT^{note 2}(TTD1) 1SPST^{note 2}(TTD1N)
LCD&Keys					0 1 2	N/A LCD LCD & Keys

Note 1: the communication protocol is Modbus RTU

Note 2: Refer to working environment ambient guide GB/T4200 and WBGT etc, the relay default settings are ON-30.0°C/OFF-29.5°C, and also can be set through LCD & function keys.

Packaging & Shipping

Sample Order	Order	OEM Order
Three work days	2 weeks	3 weeks

Port

Shenzhen, Hong Kong

Company Information

Why choose us ?

♦ Specilizng in manufacturing products of HVAC for almost 10 years.

♦ Harsh process of production and strict testing system.

♦ Material could be traced.

♦ High quality with competitive price.

♦ Delivery in time.

♦ Reply in 24 hours.

Certifications

FAQ

Q1: How to get the latest price?

Tell me the models, quantity, and other special requirement.

Q2: Payment terms?

100% T/T in advance.

Q3: Delivery time?

One week.

Q4: Shippment?

DHL, UPS, TNT etc.

Q5: Is OEM/ODM available?

Yes, it's available.

Q6: Warranty?

18 months.
