Digital temperature transmitter temperature gauge temperature sensor theory with analog output

Digital temperature transmitter temperature gauge temperature sensor theory with analog output

FOB Price:

US 22-88 / Piece

Min.Order Quantity:

10 Piece/Pieces

Supply Ability:

3000 Piece/Pieces per Month

Port:

Shenzhen, Hongkong

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T,Credit card

Brand:

TEREN

Products Model:

TTD234

Products Details
Company Profile

Quick Details

Brand Name: TEREN

Model Number: TTD234

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Retail package
Delivery Detail: Shipped in 14 days after payment

Specifications

Product Description

TTD2/ TTD4: Duct mount / Immersion digital temp. transmitter

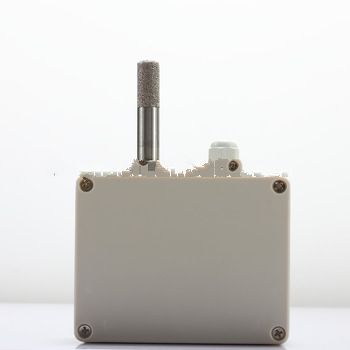

TTD3- Outside air digital temp. transmitter

Applications & Features

These transmitters/controllers can be used for temperature monitoring & controlling in duct air(TTD2), water and steam pipe(TTD4) or outside air(TTD3)
High performance digital temperature sensor and digital technology applied, ensure accurate measurement fast response and good long term stability
Multiple outputs selection, over voltage and reverse polarity protection, high reliability and anti-interference capability
Optional relay for alarm or ON/OFF control
Light and state of art housing, easy installation
Wide working temperature range
MMI can set parameters and calibrate output, so that the product becomes a stand alone controller

Specifications

Sensor: Digital temperature sensor

Range: See models

Output: 4~20mA (3 wires), 0~10VDC, RS485/Modbus

Output Load: ≤500Ω (current), ≥ 2KΩ (voltage)

Relay: 1×SPDT, 1A/30VDC or 0.5A/125VAC

Accuracy: ≤±0.5°C @ -10~85°C

Power: 15~28VAC/15~36VDC

Work Temp.: -40~85°C, 0~95%RH (Non condensing)

Storage Temperature: -40~85°C

Housing: ABS, SS probe, SS well

Protection: IP65

Approval: CE

Optional Accuracy: 0.25°C @ -20 ~105°C (Add “H” after part number)

Optional MMI operation panel: see more details in MMI manual

Accuracy curve:

Analog error: ±0.1% FS, the biggest error after calibrated at 25°C

Analog output thermal effect: ±0.007 % FS/°C

Models

Model	TTD2 TTD3 TTD4					Duct mount digital temp. transmitter Outside air digital temp. transmitter Immersion digital temp. transmitter
Outputs		1 B				4-20mA/0-10VDC 4-20mA/0-10VDC, RS485/Modbus
Range (Note 1)			1 2 3 7			-10~50°C -10~90°C -40~60°C Others
Relay (Note 2)				0 1		No 1*SPDT
LCD&MMI					1 2 7	125mm 200mm Others

Note1: Every product can be set ranges with accuracy ≤±0.5°C @ -10~85°C through MMI panel; code 7 product can be set all ranges in -40~125°C with accuracy≤±0.5°C.

Note2: Refer to working environment ambient guide GB/T4200 and WBGT, etc,the relay default settings are ON-30.0°C/OFF-29.5°C, and can be customized or set through MMI panel.

Accessories

Packaging & Shipping

Sample Order	Order	OEM Order
Three work days	2 weeks	3 weeks

Port

Shenzhen, Hong Kong

Company Information

Why choose us ?

♦ Specilizng in manufacturing products of HVAC for almost 10 years.

♦ Harsh process of production and strict testing system.

♦ Material could be traced.

♦ High quality with competitive price.

♦ Delivery in time.

♦ Reply in 24 hours.

Certifications

FAQ

Q1: How to get the latest price?

Tell me the models, quantity, and other special requirement.

Q2: Payment terms?

100% T/T in advance.

Q3: Delivery time?

One week.

Q4: Shippment?

DHL, UPS, TNT etc.

Q5: Is OEM/ODM available?

Yes, it's available.

Q6: Warranty?

18 months.

Never hesitate inquiry to us if you are interested in this product, we would like to know your requirement for model's part No, which is concern model's type, output, range, relay, length, quantity etc. So that we can offer the exactly quotation for you. Thanks!
