Steam engine steam boiler pressure gauge manometer

Steam engine steam boiler pressure gauge manometer

FOB Price:

US 1-39 / Piece

Min.Order Quantity:

10 Piece/Pieces

Supply Ability:

3000 Piece/Pieces per Month

Port:

shenzhen / Hongkong

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T,Credit Card

Brand:

TEREN

Products Model:

D2L/D2PL

Products Details
Company Profile

Quick Details

Brand Name: TEREN

Model Number: D2L/D2PL

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Retail package
Delivery Detail: Shipped in 10 days after payment

Specifications

D2L/D2PL Economical Digital Differential Pressure Gauge

Product Description

D2L (LCD type) as below, battery type(AA battery x4):

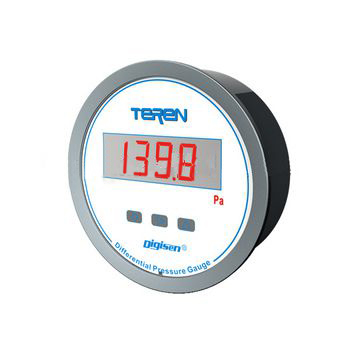

Power type, D2PL(LED type) as below, optional for LCD display for cheaper cost.

Applications & Features

Apply high accuracy MEMS sensor and digital technologies, can measure positive, negative or differential pressure. It can completely replace the traditional pointer mechanical gauges.
It can measure fan and blower pressures, filter resistance, air velocity, pressure drop across orifice plates, differential pressure of medical equipment or pharmaceutical machine, etc.
No any movable parts, no any effect on vibration.
With ultra-thin design of 33mm, it could be flush, surface or wall mount.
The accuracy is up to ±1% FS, with large LCD or LED display.
Function keys: zero reset, units select, display update time, automatic sleep time, etc.

Specifications
Medium	non-combustible, non-corrosive air, not sensitive to moisture, dust, condensation and oil
Working Temp.	D2L: -10~50°C
Working Temp.	D2PL: -20~85°C(LED);-10~60°C (LCD)
Medium Temp.	0~60°C
Temp. Compensation	0~50°C
Working pressure	overload 10xFS, burst 15xFS
Accuracy	±1.0% FS
Long term stability	±0.5%FS /Year
Thermal effect	<0.05%FS/℃(zero), <0.08%FS/(FS)
Battery type(D2L):
Display	4 bits LCD,18mm character height with units indication
Power	AA battery X4, recommend LR6 alkaline
Display update time	selectable for 0.5/1/5/10s(default1s)
Automatic sleep time	selectable for normal open(on), or1/5/10min(default 1min)
Battery service life	When display update time=1s and automatic sleep time=on, ≥2 year;
	When display time>1s or automatic sleep time≥1min, will be longer.
	It also depends on the quality of the batteries.

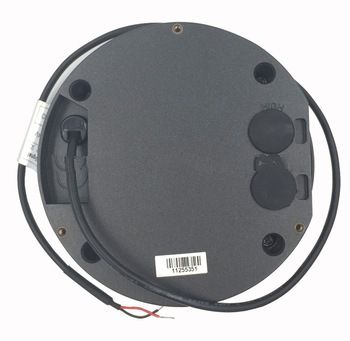

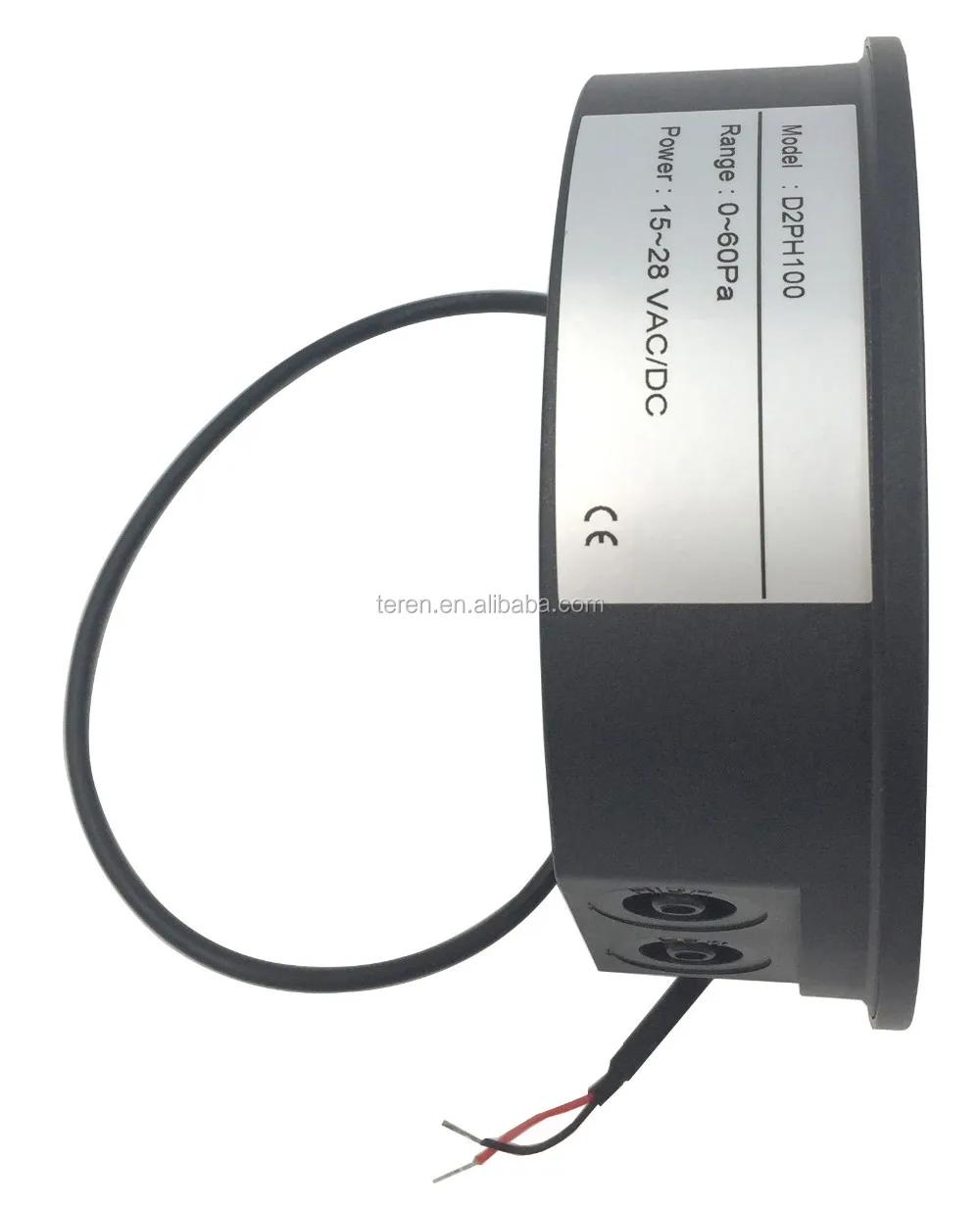

Power type(D2PL)
Display	4 bits LCD with 18mm character height and unit indication, or 4 bits 0.8”red LED
Power	15~28VDC/AC or 85~265VAC

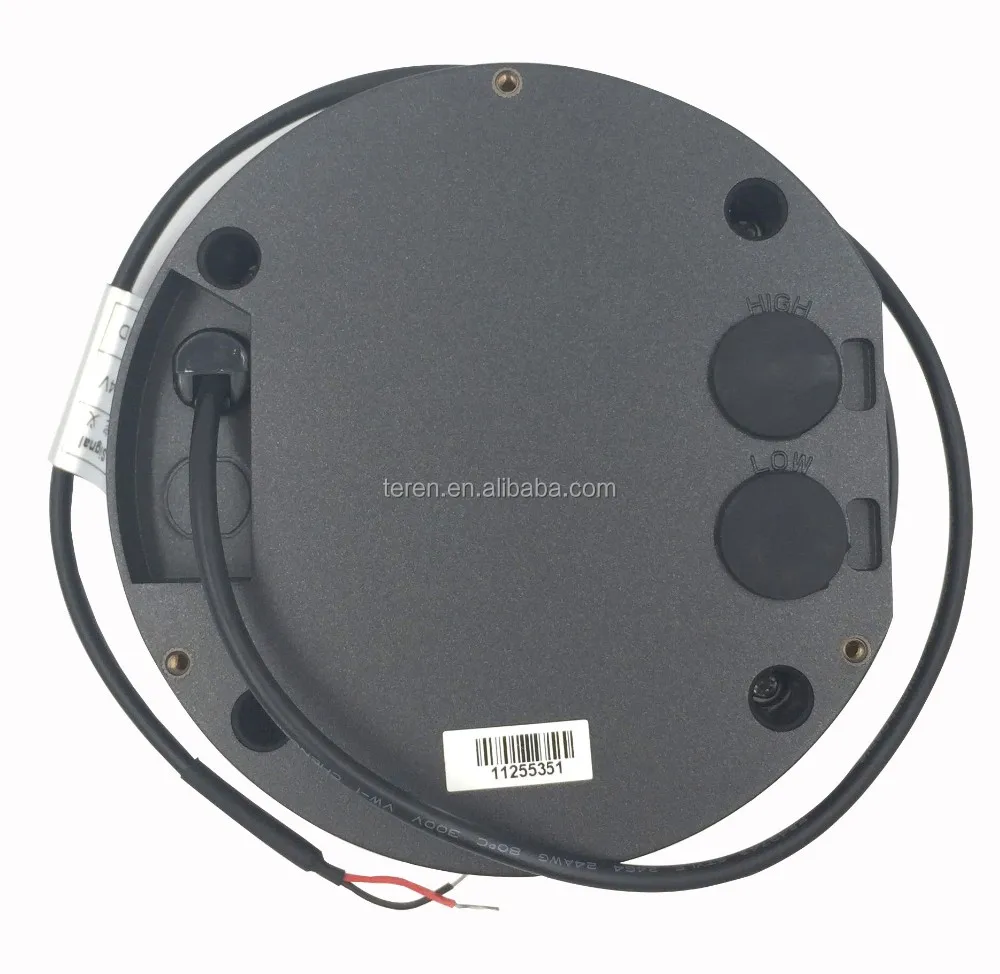

Process Connection	5mm ID tubing, two pairs(on left or back side)
Keys	3 touch buttons
Materials	ABS
Protection	IP65
Weight	D2L<300g(including batteries), D2PL<260g
Approval	CE
Accessory	A-S0 is standard. Options are A-S1, A-S2 and A-S7-X. They can be used for surface, panel or flush mount and should be ordered separately. See details in Accessories.

Models

1. D2L (Battery type) Model Chart
Model	D2L		Economical digital DP gauge(Battery type)
Range		See Range Chart

2. D2PL (Power type) Models
Model	D2PL				Economical digital DP gauge(Power type)
Range		See Range Chart
Display			0		LCD
Display			1		LED
Power				0	15~28VAC/DC
Power				1	85~265VAC

Range Chart
Code	UNIT & Range & Resolution for Display
Code	Pa	Pa	KPa	In W.C	mm W.C	mbar
3	0-250	250.0	0.250	1.000	25.00	2.500
5	0-1000	1000	1.000	4.000	100.0	10.00
7	0-5000	5000	5.000	20.00	500.0	50.00
8	0-10000	10000	10.00	40.00	1000	100.0
Note: 1. 5 engineering units can be set by the key and related LCD or LED will be on 2. For zero center models, add "Z " at the end of the model. For example, D2L3Z, means -125-0-125pa.Only ranges 3 and 5 have this selection

Packaging & Shipping

Sample Order	Order	OEM Order
Three work days	2 weeks	3 weeks

Port

Shenzhen, Hong Kong
