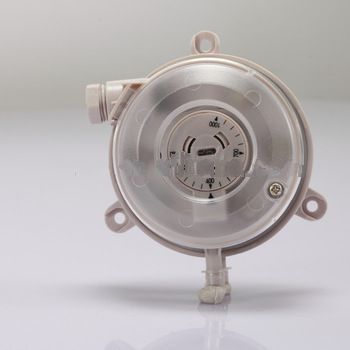

Air flow monitor of round Adjustable Differential Pressure Switch

Air flow monitor of round Adjustable Differential Pressure Switch

FOB Price:

US 11.07-25.37 / Piece

Min.Order Quantity:

10 Piece/Pieces

Supply Ability:

5000 Piece/Pieces per Month

Port:

Shenzhen / Hongkong

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T,Credit card

Brand:

TEREN

Products Model:

609

Products Details
Company Profile

Quick Details

Brand Name: TEREN

Model Number: 609

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Retail package
Delivery Detail: Shipped in 14 days after payment

Specifications

Product Description

Applications & Features

Monitoring overpressure, vacuum and differential pressure of the air and other non-combustible, non-aggressive gases

Specifications 10

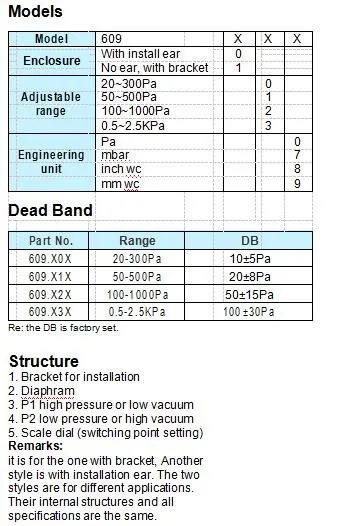

Adjustable range: 4 ranges, see models

Pressure limit: 7500Pa (-30~ 75°C)

Working temperature: -20~ 85°C

Storage temperature: -40~85°C

Pressure connection: φ6.0mm plastic tube, P1 high and P2 low pressure

Service life: over 10⁶ switching cycles

Electrical Contact: SPDT, 2A/250VAC, 1A/30VDC

Max. switching frequency: 6 switching cycles/min

Electrical connection: screw terminals

Repeatability: ±2%

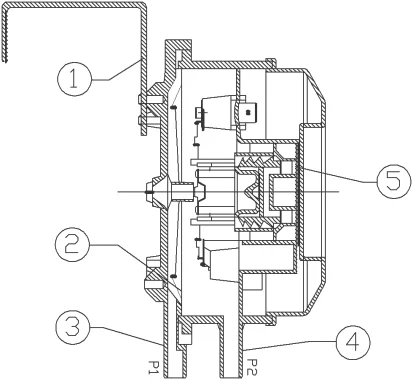

Materials: housing PC, cover PC, diaphragm silicone and contact silver

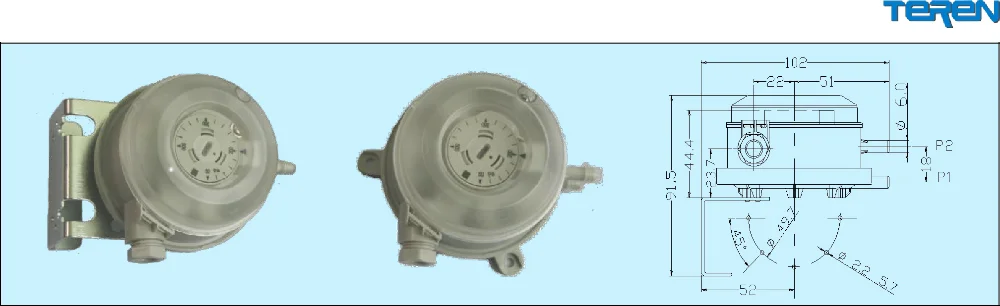

Weight: 140g with bracket, 90g without bracket

Protection: IP54

Installation: vertical, pressure ports P1 and P2 downward. This is the factory-calibrated position. If horizontally installation needed, the switching value should plus about 20pa (cover upward) and minus about 10pa (cover downward). See operation manual

Approval: CE

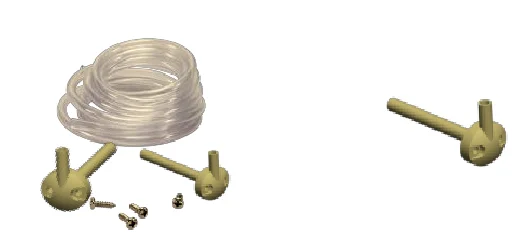

Accessories(should be ordered separately)

Part	Description

No

1001		Individual accessory package: clear PVC tube 2M,
		connectors(1003) 2PCS, screws 4PCS

1002		plastic pipe 2m
1003		1 pc pressure connection part, straight type
1008		Individual accessory package: clear PVC tube 2M,
		connectors(1009) 2PCS, screws 4PCS

1009		1 pc pressure connection part,L type
