Toeflex electric expansion valve Toeflex electric expansion valve

Toeflex electric expansion valve

FOB Price:
US 6-15 / Piece
Min.Order Quantity:
200 Piece/Pieces
Supply Ability:
10000 Piece/Pieces per Year
Port:
SHANGHAI
Place of Origin:
Sichuan, China (Mainland)
Payment Terms:
L/C,T/T
Brand:
--
Products Model:
DPF
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: --

    Model Number: DPF

    Place of Origin: Sichuan, China (Mainland)

Packaging & Delivery

  • Packaging Details: Export wooden case or according to customers' requirement
  • Delivery Detail: Within 25-30 days after receipt of PO

Specifications

1. realize refrigerant flow automatic adjustme.
2. reach the optimized refrigeration capacity .
3. precise energy saving.

Toeflex electric expansion valve :



1. Application:

Electric expansion valve are widely used for inverter air conditioner system, realize refrigerant flow automatic adjustment, reach the optimized refrigeration capacity and heating capacity through loading change.



2.  Usage instruction:

1) Before valve body welding, it is necessary to remove the coil, protect the valve body by wet towel, valve body temperature <120°C

2) Recommended installing type: valve body vertical, coil upward.



3. Working condition:

Coil voltage:  DC12V, DC24V

Voltage tolerance:  85% - 110%

Driving condition:  30~90PPS (1~2 Phase excitation)

Pulse Number: 500PP

Applicable refrigerant:  R22, R134a, R404A, R407C, R410A

Ambient temperature:  -30°C - +60°C

Maximum working pressure 3.0MPa,4.2Mpa (New refrigerant)

Installation direction: Motor upward front left right ±90°

Rotation direction:  Both Clockwise and anticlockwise

Life spam: 100000 times

Coil temperature: ≤60K

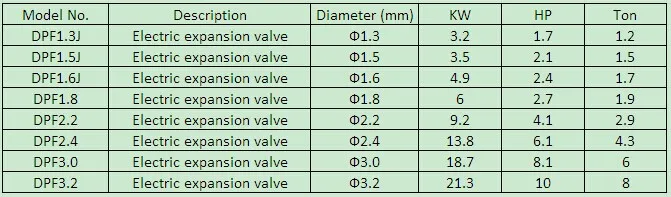

4. Specification Details:

APPLICABLE REFRIGERANT R404a, R407, R410, R134a,R22

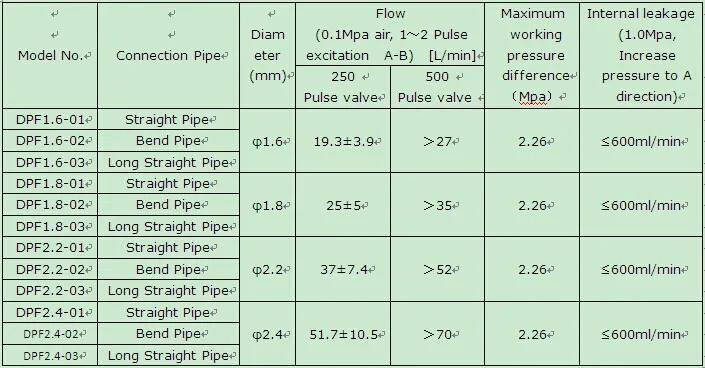

 5. New refrigrant:
