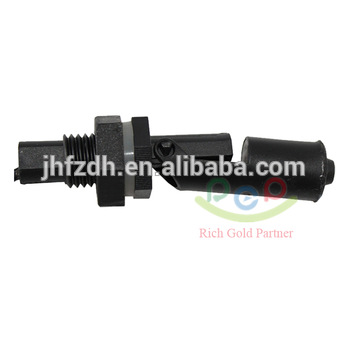

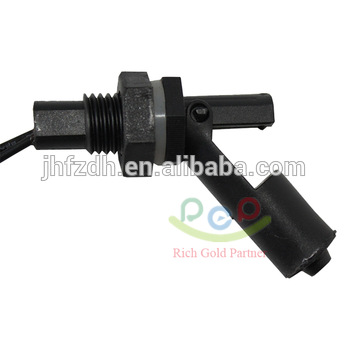

sensor technology water pump float switch with black cable

sensor technology water pump float switch with black cable

FOB Price:

US 1.8-2 / Piece

Min.Order Quantity:

25 Piece/Pieces

Supply Ability:

5000 Piece/Pieces per Month

Port:

Dongguan

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

RGP

Products Model:

L5-P

Products Details
Company Profile

Quick Details

Brand Name: RGP

Model Number: L5-P

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: carton
Delivery Detail: one week

Specifications

Working principle

By means of float with magnetic filed an reed switches , One or more reed switches are placed in at a specific height inside a guide tube. The changes in liquid level modify the float position in this guide tube, so that when it reaches the switch position, it changes its status ,providing an output signal for level detection.

Electrcal parameter

Max contact Rating	10 W	50W
Max switching voltage	200V DC	300VDC/250VAC
Max switching current	0.5 A	1A
Max carry current	1.0A	1.5A
Thread Diameter	33MM male
The main material	PP
The float material	PP
Float SG	0.75
Lead wire	30 cm length
Approvals	ROHS

General information

Switches should be installed rigidly so that float or floats are free to move as the liquid level changes.
Switches should be mounted in a tank area free of severe turbulence . protected from such turbulence by appropriate and adequate slosh shields.
Vertical switch stems should be vertical for best results, but satisfactory operation is possible in most liquids with the stem at up to a 30 degree angle from vertical.
Side-mounted switch stems must be mounted with arrow vertically either up or down depending on switch operation .
Care should be taken that switches are always operated within electrical ratings.
Orientation for standard vertical switches can be changed from normally open to normally closed dry or vice versa by removing the float and reversing in the stem

Specifications	LEV03012
Case	SUS304
Nut	SUS304
Floater	SUS304 / SUS316
E Ring	SUS304
Cable	UL 1015 22AWG / 24AWG
Filler	Ethoxyline (ROHS)
Used medium	Water,Oil,Chemical liquid
